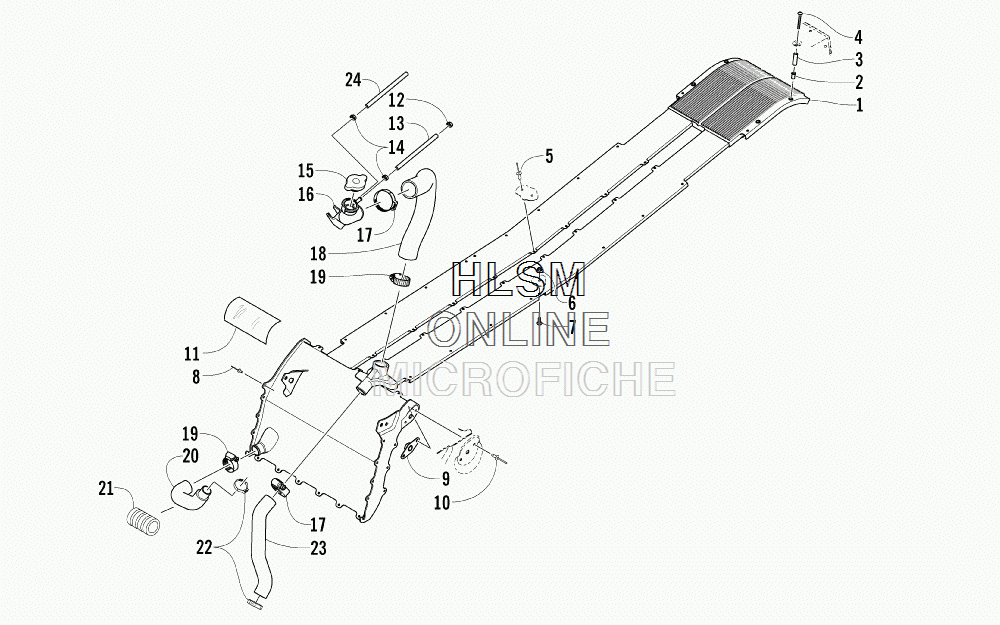

COOLING ASSEMBLY для Arctic Cat F 800 SNO PRO - ANNIVERSARY EDITION - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    0713-050 EXCHANGER, HEAT (INC. 2)
    EXCHANGER, HEAT (INC. 2)
  • 2
    1623-562 ...INSERT
    ...INSERT
  • 3
    0613-052 SPACER
    SPACER
  • 4
    8017-406 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    8060-702 RIVET
    RIVET
  • 6
    8422-502 NUT, LOCK
    NUT, LOCK
  • 7
    8476-516 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    8060-706 RIVET
    RIVET
  • 9
    0608-631 PLATE, RETAINING
    PLATE, RETAINING
  • 10
    8060-688 RIVET
    RIVET
  • 11
    0619-206 FOIL, PROTECTIVE - 30 FT
    FOIL, PROTECTIVE - 30 FT
  • 12
    1623-619 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    0610-538 HOSE, VENT - 25 FT
    HOSE, VENT - 25 FT
  • 14
    1623-655 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    2606-284 CAP
    CAP
  • 16
    0613-030 NECK, FILLER
    NECK, FILLER
  • 17
    0423-317 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0613-097 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
    HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
  • 19
    1623-092 CLAMP, HOSE
    CLAMP, HOSE
  • 20
    0610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/HEAT EXCHANGER
  • 21
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 22
    1623-656 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    0613-033 HOSE, COOLANT - HEAT EXCHANGER/ENGINE
    HOSE, COOLANT - HEAT EXCHANGER/ENGINE
  • 24
    0610-692 HOSE - GREEN - 25 FT
    HOSE - GREEN - 25 FT
  • 24
    0610-693 HOSE - GREEN - 100 FT
    HOSE - GREEN - 100 FT
