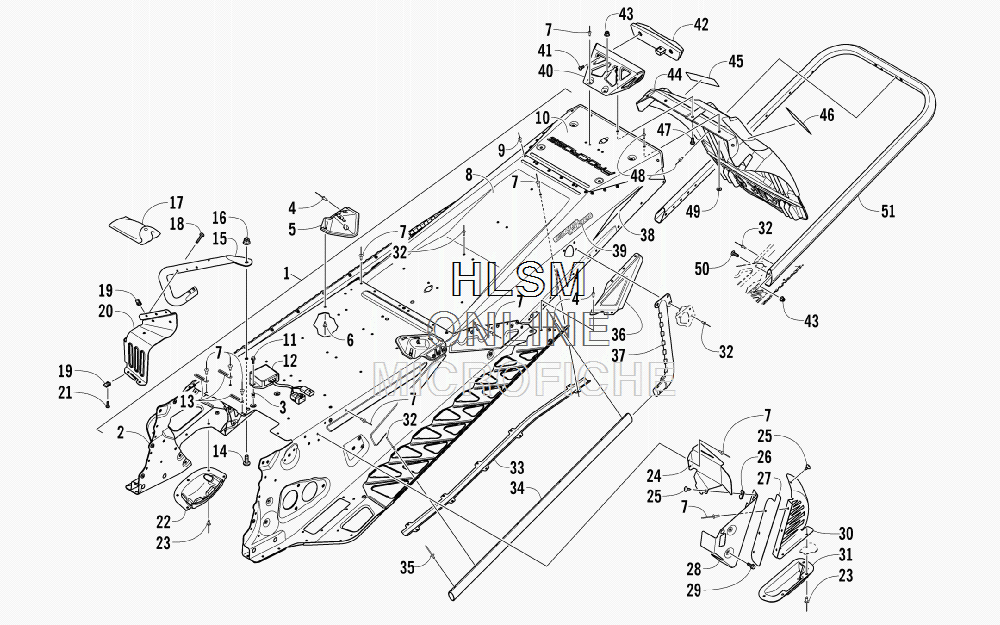

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat F 1100 TURBO SNO PRO BLACK ANNIVERSARY EDITION - 2012 года выпуска`
-
№АртикулНазвание
-
-1707-539 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
11707-696 TUNNEL ASSEMBLY - BLACK (INC. 2-10)TUNNEL ASSEMBLY - BLACK (INC. 2-10)
-
21707-691 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3)
-
31623-797 ......INSERT......INSERT
-
41623-241 ...RIVET...RIVET
-
51707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
51707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
61623-257 ...RIVET...RIVET
-
78060-702 ...RIVET - BLACK...RIVET - BLACK
-
81707-694 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
98060-504 ...RIVET - BLACK...RIVET - BLACK
-
101707-695 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
118408-516 SCREW, CAPSCREW, CAP
-
120630-288 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
133002-964 CLAMP, WIRECLAMP, WIRE
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
151707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
151707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
168427-802 NUT, LOCKNUT, LOCK
-
170744-064 KIT, TOOLKIT, TOOL
-
188468-536 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
201707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
218475-512 SCREW, MACHINESCREW, MACHINE
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVETRIVET
-
242602-436 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
251623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
261623-052 CLIP, U-NUTCLIP, U-NUT
-
271707-639 SHIELD, BRAKE DISC - CENTER - BLACKSHIELD, BRAKE DISC - CENTER - BLACK
-
281607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
298408-613 SCREW, CAPSCREW, CAP
-
301707-563 SHIELD, BRAKE DISC - REAR - BLACKSHIELD, BRAKE DISC - REAR - BLACK
-
310607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
328060-706 RIVET - BLACKRIVET - BLACK
-
330630-274 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
341707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
351623-130 RIVETRIVET
-
361707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
361707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
371707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
371707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
389611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
399611-612 DECAL, TUNNEL - "SNO PRO"DECAL, TUNNEL - "SNO PRO"
-
400730-159 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
418470-512 SCREW, MACHINESCREW, MACHINE
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
438427-602 NUT, LOCKNUT, LOCK
-
446606-123 SNOWFLAPSNOWFLAP
-
455611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
465611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
478468-616 SCREW, MACHINESCREW, MACHINE
-
488061-706 RIVETRIVET
-
490123-802 WASHERWASHER
-
508476-620 SCREW, MACHINESCREW, MACHINE
-
511707-488 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
