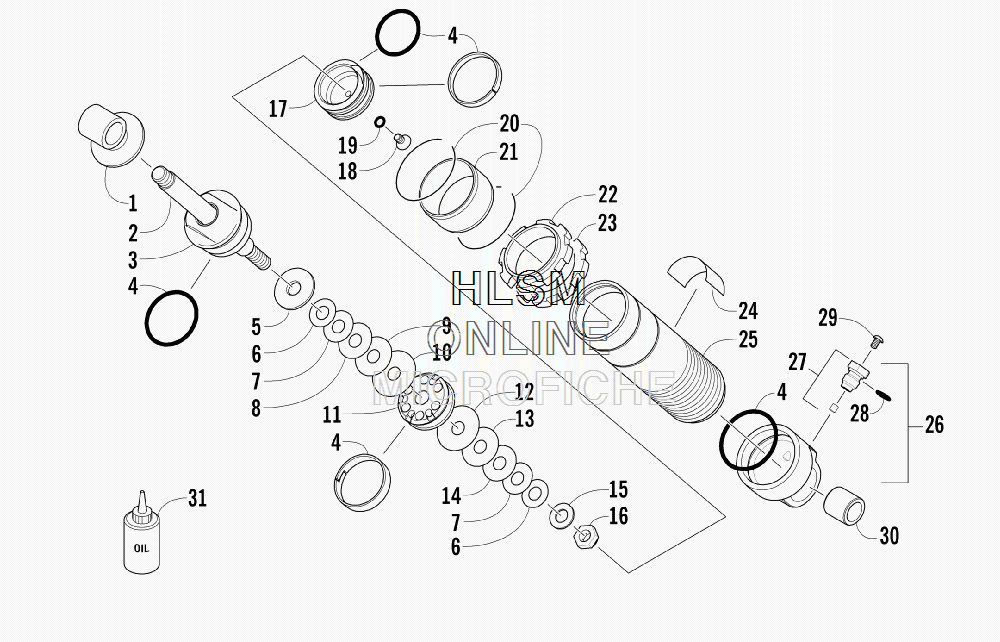

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat F 1100 TURBO SNO PRO BLACK ANNIVERSARY EDITION (INTERNATIONAL) - 2012 года выпуска`
-
№АртикулНазвание
-
-2704-170 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-883 ROD, SHOCKROD, SHOCK
-
32604-812 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
42604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
50603-540 WASHER, TOP OUTWASHER, TOP OUT
-
60603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
70603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
80603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
90603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
100603-891 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
112603-309 PISTON, 0.093 IN. - ORIFICEPISTON, 0.093 IN. - ORIFICE
-
120603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
130603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
140603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
150603-389 WASHER, BACKUPWASHER, BACKUP
-
160603-301 NUTNUT
-
172604-816 PISTON, FLOATINGPISTON, FLOATING
-
181604-316 SCREW, MACHINE W/O-RING (INC. 19)SCREW, MACHINE W/O-RING (INC. 19)
-
191604-425 ...O-RING...O-RING
-
202603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
212603-246 SLEEVE, WEARSLEEVE, WEAR
-
222604-840 NUT, ADJUSTERNUT, ADJUSTER
-
232604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
242603-475 DECAL, SHOCKDECAL, SHOCK
-
253604-178 BODY, SHOCKBODY, SHOCK
-
262604-817 END CAP, SHOCK - ASSEMBLY (INC. 27-28)END CAP, SHOCK - ASSEMBLY (INC. 27-28)
-
270703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 28)...VALVE, PRESSURE - ASSEMBLY (INC. 28)
-
281604-318 ......O-RING......O-RING
-
290624-097 SCREW, VALVESCREW, VALVE
-
302604-415 SLEEVESLEEVE
-
315639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
