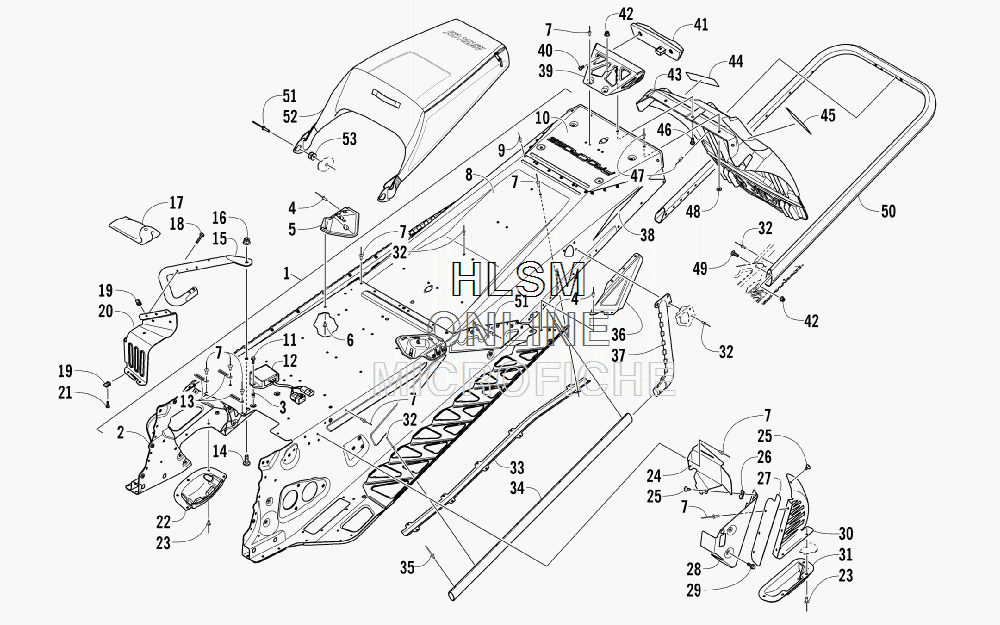

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat F 1100 Turbo LXR (BLACK) - 2012 года выпуска
-
№АртикулНазвание
-
11707-676 TUNNEL ASSEMBLY (INC. 2-10)TUNNEL ASSEMBLY (INC. 2-10)
-
21707-518 ...TUNNEL, FRONT - ASSEMBLY (INC. 3)...TUNNEL, FRONT - ASSEMBLY (INC. 3)
-
31623-797 ......INSERT......INSERT
-
41623-241 ...RIVET...RIVET
-
51707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
51707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
61623-257 ...RIVET...RIVET
-
78060-682 ...RIVET...RIVET
-
80607-475 ...TUNNEL, REAR...TUNNEL, REAR
-
98060-484 ...RIVET...RIVET
-
101607-003 ...END CAP, TUNNEL...END CAP, TUNNEL
-
118408-516 SCREW, CAPSCREW, CAP
-
120630-288 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
133002-964 CLAMP, WIRECLAMP, WIRE
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
151707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
151707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
168427-802 NUT, LOCKNUT, LOCK
-
170744-064 KIT, TOOLKIT, TOOL
-
188468-536 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
200607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
200607-997 FOOTREST - LEFTFOOTREST - LEFT
-
218475-512 SCREW, MACHINESCREW, MACHINE
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVETRIVET
-
242602-436 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
251623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
261623-052 CLIP, U-NUTCLIP, U-NUT
-
271607-176 SHIELD, BRAKE DISC - CENTERSHIELD, BRAKE DISC - CENTER
-
281607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
298408-613 SCREW, CAPSCREW, CAP
-
300607-520 SHIELD, BRAKE DISC - REARSHIELD, BRAKE DISC - REAR
-
310607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
328060-686 RIVETRIVET
-
330630-274 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
341607-092 ROLL, TUNNELROLL, TUNNEL
-
351623-130 RIVETRIVET
-
361607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
361607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
371607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
371607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
389611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
390630-278 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
408470-512 SCREW, MACHINESCREW, MACHINE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
428427-602 NUT, LOCKNUT, LOCK
-
436606-123 SNOWFLAPSNOWFLAP
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468468-616 SCREW, MACHINESCREW, MACHINE
-
478061-686 RIVETRIVET
-
480123-802 WASHERWASHER
-
498476-620 SCREW, MACHINESCREW, MACHINE
-
500607-471 BUMPER, REARBUMPER, REAR
-
518060-630 RIVETRIVET
-
526606-359 SADDLEBAGSADDLEBAG
-
531623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
