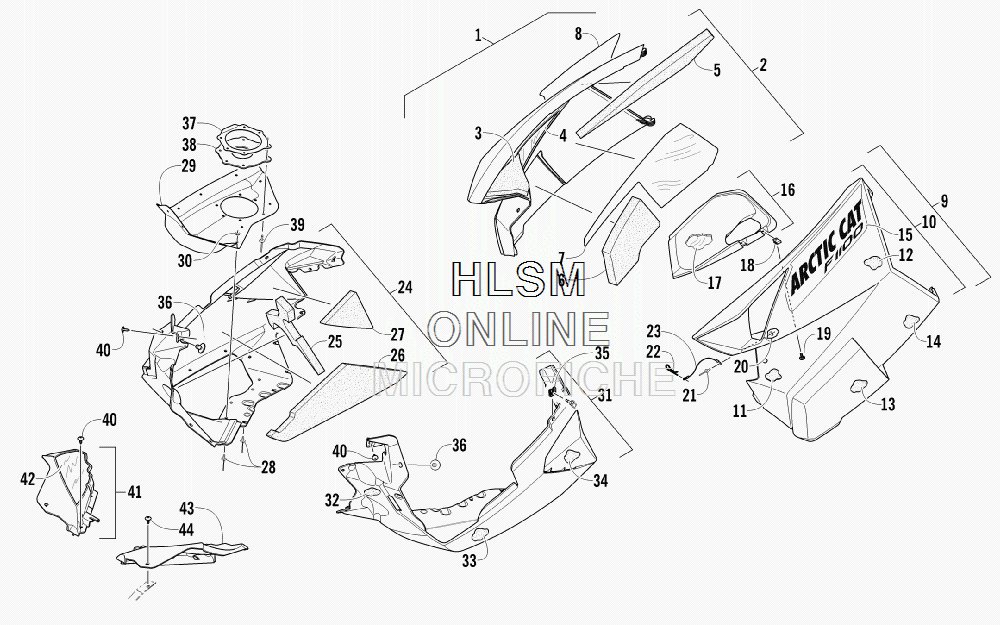

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F 1100 SNO PRO LTD - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-248 PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-8)
    PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-8)
  • 2
    3718-246 ...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-7)
    ...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-7)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT
    ......FOIL, PROTECTIVE - MIDDLE - RIGHT
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    6606-416 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
    ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
  • 8
    9611-620 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
    ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
  • 9
    3718-249 PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 10-15)
    PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 10-15)
  • 10
    3718-247 ...PANEL, SIDE - LEFT W/O DECALS - WHITE (INC. 11-14)
    ...PANEL, SIDE - LEFT W/O DECALS - WHITE (INC. 11-14)
  • 11
    0617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT
    ......FOAM, SIDE PANEL - CENTER FRONT - LEFT
  • 12
    0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 13
    0617-633 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 14
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 15
    9611-621 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT
    ...DECAL, SIDE PANEL - UPPER FRONT - LEFT
  • 16
    1702-242 DUCT, AIR - CLUTCH (INC. 17)
    DUCT, AIR - CLUTCH (INC. 17)
  • 17
    6606-462 ...FOIL, PROTECTIVE - OPTIONAL
    ...FOIL, PROTECTIVE - OPTIONAL
  • 18
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 19
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    8050-127 WASHER
    WASHER
  • 21
    8060-486 RIVET
    RIVET
  • 22
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 23
    0607-447 CABLE
    CABLE
  • 24
    3718-254 PLATE, SKID - RIGHT W/O DECALS - WHITE (INC. 25-30)
    PLATE, SKID - RIGHT W/O DECALS - WHITE (INC. 25-30)
  • 25
    0617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 26
    0617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 27
    0617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT
    ...FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 28
    8061-708 ...RIVET
    ...RIVET
  • 29
    1712-723 ...DEFLECTOR, HEAT - WHITE
    ...DEFLECTOR, HEAT - WHITE
  • 30
    0123-802 ...WASHER
    ...WASHER
  • 31
    3718-255 PLATE, SKID - LEFT W/O DECALS - WHITE (INC. 32-34)
    PLATE, SKID - LEFT W/O DECALS - WHITE (INC. 32-34)
  • 32
    0617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT
    ...FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 33
    0617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT
    ...FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 34
    0617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT
    ...FOAM, SKID PLATE - UPPER REAR - LEFT
  • 35
    1623-748 CLIP, RETAINING
    CLIP, RETAINING
  • 36
    5606-639 PIN, RETAINING
    PIN, RETAINING
  • 37
    2612-685 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 38
    2612-669 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 39
    8060-488 RIVET
    RIVET
  • 40
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 41
    3718-302 FASCIA, FRONT RIGHT - BLACK (INC. 42)
    FASCIA, FRONT RIGHT - BLACK (INC. 42)
  • 42
    6606-404 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 43
    6606-343 FASCIA, FRONT LEFT - BLACK
    FASCIA, FRONT LEFT - BLACK
  • 44
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
