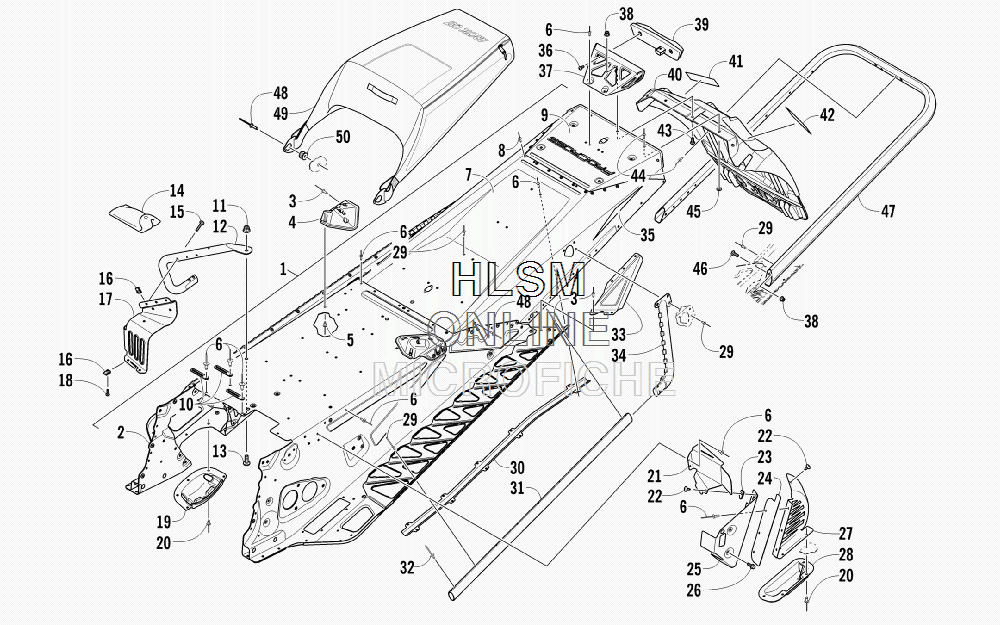

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat F 1100 LXR (GREEN) - 2012 года выпуска
-
№АртикулНазвание
-
-1707-447 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-676 TUNNEL ASSEMBLY (INC. 2-9)TUNNEL ASSEMBLY (INC. 2-9)
-
21707-518 ...TUNNEL, FRONT - ASSEMBLY...TUNNEL, FRONT - ASSEMBLY
-
31623-241 ...RIVET...RIVET
-
41707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
41707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
51623-257 ...RIVET...RIVET
-
68060-682 ...RIVET...RIVET
-
70607-475 ...TUNNEL, REAR...TUNNEL, REAR
-
88060-484 ...RIVET...RIVET
-
91607-003 ...END CAP, TUNNEL...END CAP, TUNNEL
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
118427-802 NUT, LOCKNUT, LOCK
-
121707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
121707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
138476-820 SCREW, MACHINESCREW, MACHINE
-
140744-064 KIT, TOOLKIT, TOOL
-
158468-536 SCREW, MACHINESCREW, MACHINE
-
161623-637 CLIP, U-NUTCLIP, U-NUT
-
170607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
170607-997 FOOTREST - LEFTFOOTREST - LEFT
-
188475-512 SCREW, MACHINESCREW, MACHINE
-
191607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
208061-708 RIVETRIVET
-
212602-436 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
221623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
231623-052 CLIP, U-NUTCLIP, U-NUT
-
241607-176 SHIELD, BRAKE DISC - CENTERSHIELD, BRAKE DISC - CENTER
-
251607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
268408-613 SCREW, CAPSCREW, CAP
-
270607-520 SHIELD, BRAKE DISC - REARSHIELD, BRAKE DISC - REAR
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
298060-686 RIVETRIVET
-
300630-274 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311607-092 ROLL, TUNNELROLL, TUNNEL
-
321623-130 RIVETRIVET
-
331607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
331607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
341607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
341607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
359611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
368470-512 SCREW, MACHINESCREW, MACHINE
-
370630-278 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
388427-602 NUT, LOCKNUT, LOCK
-
390609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
406606-123 SNOWFLAPSNOWFLAP
-
415611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
438468-616 SCREW, MACHINESCREW, MACHINE
-
448061-686 RIVETRIVET
-
450123-802 WASHERWASHER
-
468476-620 SCREW, MACHINESCREW, MACHINE
-
470607-471 BUMPER, REARBUMPER, REAR
-
488060-630 RIVETRIVET
-
496606-359 SADDLEBAG, REARSADDLEBAG, REAR
-
501623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
