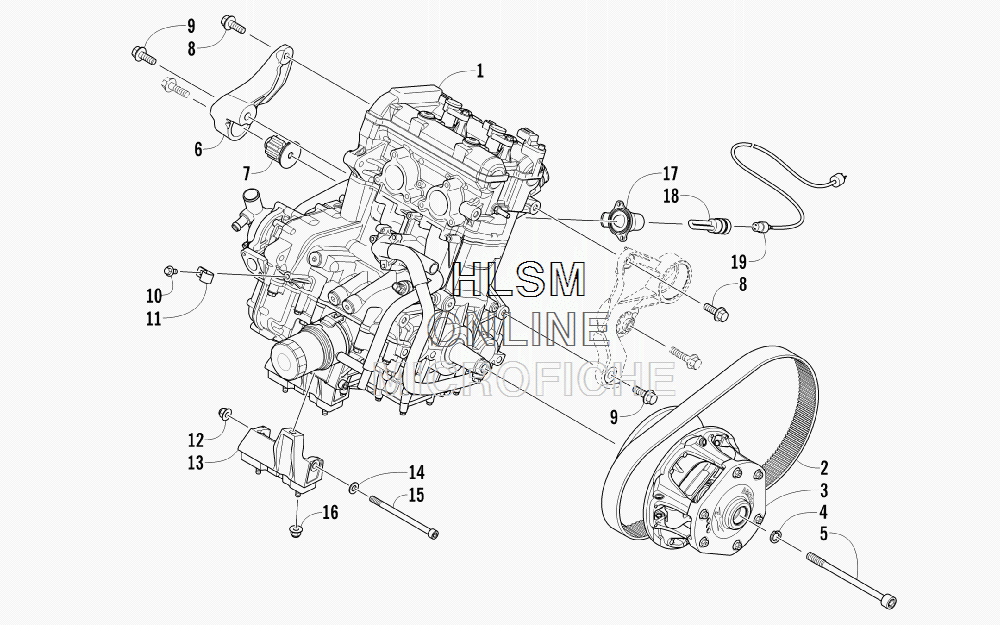

ENGINE AND RELATED PARTS для Arctic Cat F 1100 LXR (BLACK) - 2012 года выпуска`
-
№АртикулНазвание
-
10762-606 ENGINE, AA11L5ENGINE, AA11L5
-
20627-081 BELT, DRIVEBELT, DRIVE
-
30746-441 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
41623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
51623-620 BOLT, CLUTCHBOLT, CLUTCH
-
60708-574 BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 7)BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 7)
-
70608-654 ...MOUNT, ENGINE...MOUNT, ENGINE
-
88413-036 SCREW, CAPSCREW, CAP
-
98413-241 SCREW, CAPSCREW, CAP
-
108408-816 SCREW, CAPSCREW, CAP
-
111623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
128427-002 NUT, LOCKNUT, LOCK
-
130608-619 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
148450-157 WASHERWASHER
-
151623-925 SCREW, CAPSCREW, CAP
-
168427-802 NUT, LOCKNUT, LOCK
-
170609-928 ADAPTER, HEATER ELEMENT - OPTIONALADAPTER, HEATER ELEMENT - OPTIONAL
-
188408-650 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
190609-927 ELEMENT, HEATER - OPTIONALELEMENT, HEATER - OPTIONAL
-
208408-617 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
210709-082 HARNESS, HEATER ELEMENT - OPTIONALHARNESS, HEATER ELEMENT - OPTIONAL
