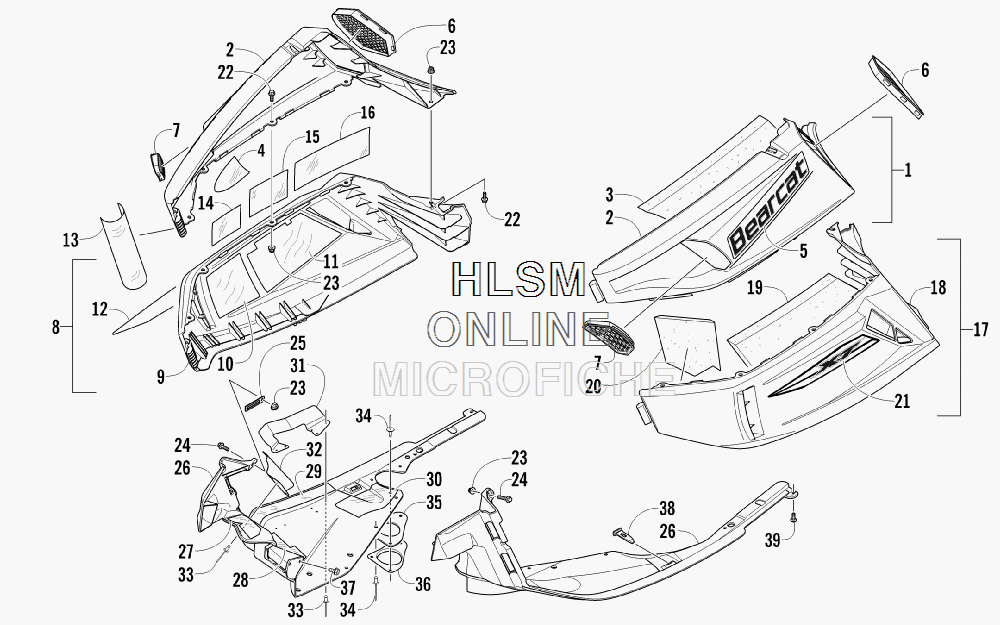

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat BEARCAT Z1 XT LTD (INTERNATIONAL) - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-376 PANEL, SIDE - UPPER - RIGHT W/DECALS - CRIMSON RED (INC. 2-5)
    PANEL, SIDE - UPPER - RIGHT W/DECALS - CRIMSON RED (INC. 2-5)
  • 1
    3718-377 PANEL, SIDE - UPPER - LEFT W/DECALS - CRIMSON RED (INC. 2-3 AND 5)
    PANEL, SIDE - UPPER - LEFT W/DECALS - CRIMSON RED (INC. 2-3 AND 5)
  • 2
    3718-126 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - CRIMSON RED (INC. 3-4)
    ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - CRIMSON RED (INC. 3-4)
  • 2
    3718-127 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - CRIMSON RED (INC. 3)
    ...PANEL, SIDE - UPPER - LEFT W/O DECALS - CRIMSON RED (INC. 3)
  • 3
    0617-562 ......FOAM, UPPER SIDE PANEL - RIGHT
    ......FOAM, UPPER SIDE PANEL - RIGHT
  • 3
    0617-563 ......FOAM, UPPER SIDE PANEL - LEFT
    ......FOAM, UPPER SIDE PANEL - LEFT
  • 4
    4606-799 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    9611-454 ...DECAL, UPPER SIDE PANEL
    ...DECAL, UPPER SIDE PANEL
  • 6
    4606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT
    VENT, UPPER SIDE PANEL - REAR - RIGHT
  • 6
    4606-651 VENT, UPPER SIDE PANEL - REAR - LEFT
    VENT, UPPER SIDE PANEL - REAR - LEFT
  • 7
    4606-662 VENT, UPPER SIDE PANEL - FRONT - RIGHT
    VENT, UPPER SIDE PANEL - FRONT - RIGHT
  • 7
    4606-663 VENT, UPPER SIDE PANEL - FRONT - LEFT
    VENT, UPPER SIDE PANEL - FRONT - LEFT
  • 8
    3718-378 PANEL, SIDE - LOWER - RIGHT W/DECALS - BLACK (INC. 9-12)
    PANEL, SIDE - LOWER - RIGHT W/DECALS - BLACK (INC. 9-12)
  • 9
    2718-930 ...PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 10-11)
    ...PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 10-11)
  • 10
    6606-212 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 11
    6606-214 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 12
    9611-456 ...DECAL, LOWER SIDE PANEL - RIGHT
    ...DECAL, LOWER SIDE PANEL - RIGHT
  • 13
    6606-456 FOIL, PROTECTIVE 178X115
    FOIL, PROTECTIVE 178X115
  • 14
    6606-219 FOIL, PROTECTIVE 127X191
    FOIL, PROTECTIVE 127X191
  • 15
    6606-218 FOIL, PROTECTIVE 102X152
    FOIL, PROTECTIVE 102X152
  • 16
    6606-220 FOIL, PROTECTIVE 127X343
    FOIL, PROTECTIVE 127X343
  • 17
    3718-379 PANEL, SIDE - LOWER - LEFT W/DECALS - BLACK (INC. 18-21)
    PANEL, SIDE - LOWER - LEFT W/DECALS - BLACK (INC. 18-21)
  • 18
    2718-349 ...PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 19-20)
    ...PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 19-20)
  • 19
    0617-567 ......FOAM, LOWER SIDE PANEL - REAR - LEFT
    ......FOAM, LOWER SIDE PANEL - REAR - LEFT
  • 20
    0617-566 ......FOAM, LOWER SIDE PANEL - FRONT - LEFT
    ......FOAM, LOWER SIDE PANEL - FRONT - LEFT
  • 21
    9611-457 ...DECAL, LOWER SIDE PANEL - LEFT
    ...DECAL, LOWER SIDE PANEL - LEFT
  • 22
    8408-620 SCREW, CAP
    SCREW, CAP
  • 23
    8427-602 NUT, LOCK
    NUT, LOCK
  • 24
    8408-635 SCREW, CAP
    SCREW, CAP
  • 25
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 26
    4706-772 PLATE, SKID - RIGHT
    PLATE, SKID - RIGHT
  • 26
    4706-073 PLATE, SKID - LEFT
    PLATE, SKID - LEFT
  • 27
    4606-796 FOIL, PROTECTIVE - UPPER - FRONT - RIGHT
    FOIL, PROTECTIVE - UPPER - FRONT - RIGHT
  • 28
    6606-453 FOIL, PROTECTIVE - FRONT
    FOIL, PROTECTIVE - FRONT
  • 29
    4606-798 FOIL, PROTECTIVE - OUTER - RIGHT
    FOIL, PROTECTIVE - OUTER - RIGHT
