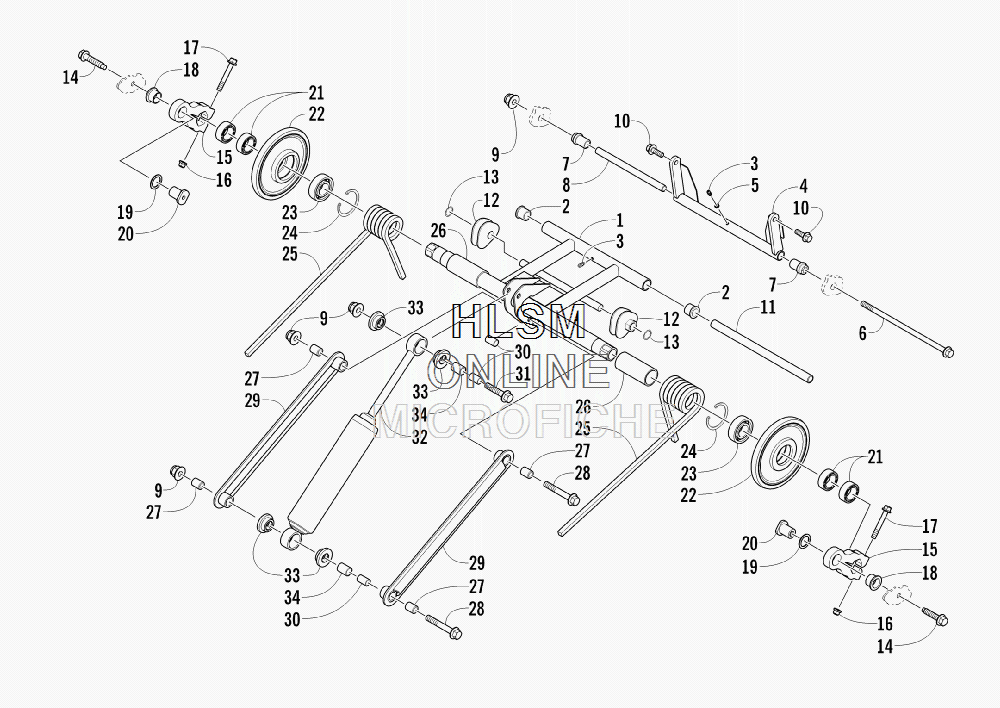

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat BEARCAT 570 XT - 2012 года выпуска`
-
№АртикулНазвание
-
11704-928 ARM, IDLER - BLACK (INC. 2 AND ONE NO. 3)ARM, IDLER - BLACK (INC. 2 AND ONE NO. 3)
-
20104-386 ...BUSHING, FLARED...BUSHING, FLARED
-
31623-010 ...FITTING, GREASE...FITTING, GREASE
-
41704-779 ARM, REAR - BLACK (INC. ONE NO. 3 AND 5)ARM, REAR - BLACK (INC. ONE NO. 3 AND 5)
-
51623-011 ...WASHER...WASHER
-
61623-756 SCREW, CAPSCREW, CAP
-
73604-286 BUSHINGBUSHING
-
83604-441 AXLEAXLE
-
98427-002 NUT, LOCKNUT, LOCK
-
108408-041 SCREW, CAPSCREW, CAP
-
113604-440 AXLEAXLE
-
121604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
121604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
130623-138 RING, RETAININGRING, RETAINING
-
141623-836 SCREW, CAPSCREW, CAP
-
151704-627 PIVOT - IDLER ARM (INC. 16-18)PIVOT - IDLER ARM (INC. 16-18)
-
168427-802 ...NUT, LOCK...NUT, LOCK
-
178408-860 ...SCREW, CAP...SCREW, CAP
-
183604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
191604-187 WASHERWASHER
-
203604-275 AXLEAXLE
-
213604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
223604-264 WHEEL, IDLER (INC. 23-24)WHEEL, IDLER (INC. 23-24)
-
233604-257 ...BEARING...BEARING
-
243604-256 ...RING, RETAINING...RING, RETAINING
-
251704-852 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
251704-853 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
263604-288 SLEEVE, SPRINGSLEEVE, SPRING
-
273604-330 AXLEAXLE
-
288408-090 SCREW, CAPSCREW, CAP
-
290704-929 LINK, REAR SHOCKLINK, REAR SHOCK
-
303604-109 SPACERSPACER
-
318408-050 SCREW, CAPSCREW, CAP
-
323604-442 SHOCK ABSORBER (INC. 33-34)SHOCK ABSORBER (INC. 33-34)
-
331604-262 ...BUSHING...BUSHING
-
341604-397 ...SLEEVE...SLEEVE
