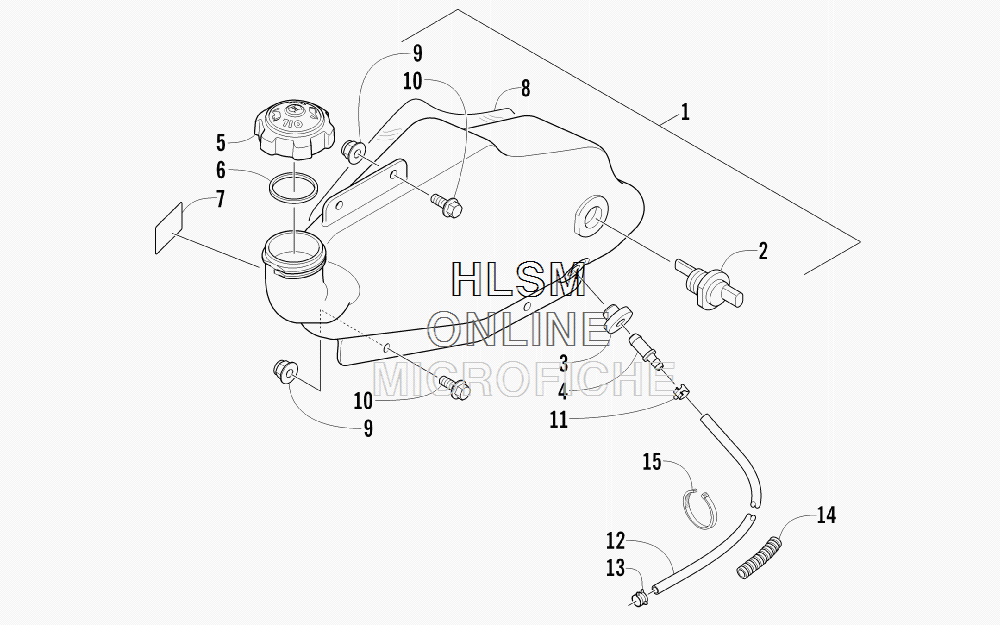

OIL TANK ASSEMBLY для Arctic Cat BEARCAT 570 XT (INTERNATIONAL) - 2012 года выпуска`
-
№АртикулНазвание
-
10770-909 TANK, OIL (INC. 2-8)TANK, OIL (INC. 2-8)
-
20609-773 ...SENSOR, LOW OIL...SENSOR, LOW OIL
-
31670-325 ...GROMMET...GROMMET
-
41670-481 ...FITTING, OIL TANK...FITTING, OIL TANK
-
51670-365 ...CAP, OIL TANK (INC. 6)...CAP, OIL TANK (INC. 6)
-
60109-733 ......SEAL, CAP - OIL TANK......SEAL, CAP - OIL TANK
-
71611-564 ...DECAL, OIL TANK...DECAL, OIL TANK
-
86606-185 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
98427-602 NUT, LOCKNUT, LOCK
-
108408-620 SCREW, CAPSCREW, CAP
-
111623-042 CLAMP, HOSECLAMP, HOSE
-
126101-009 HOSE, OIL - 25 FTHOSE, OIL - 25 FT
-
126101-001 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
131623-351 CLAMP, HOSECLAMP, HOSE
-
140716-558 CONDUIT, PROTECTIVE - 10 FTCONDUIT, PROTECTIVE - 10 FT
-
150123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
