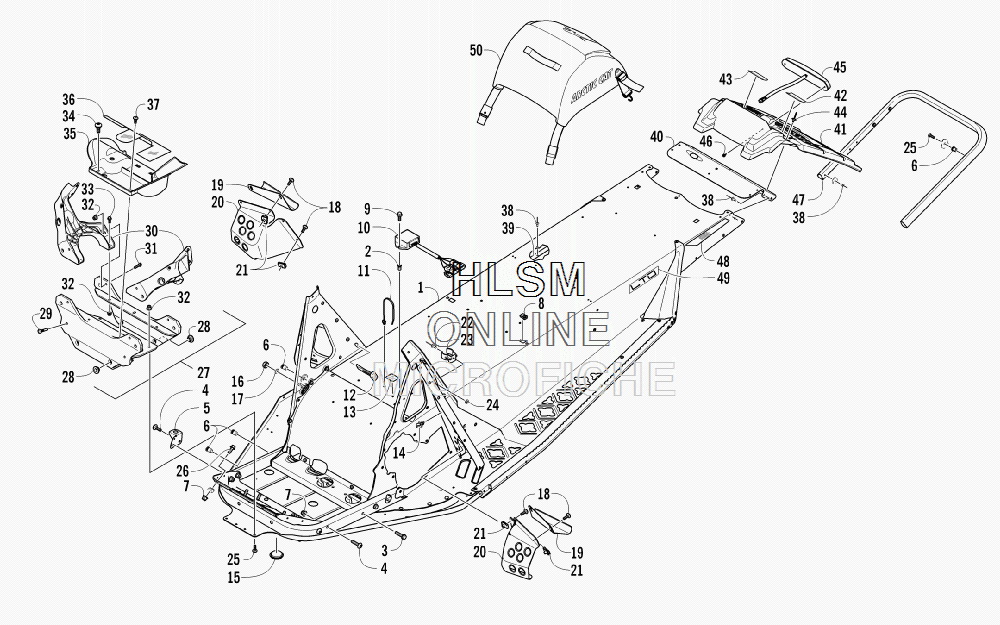

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat Z1 TURBO LXR SNO PRO LTD - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-416 CHASSIS - ASSEMBLY - BLACK (INC. 2-6 AND FOUR NO. 7)
    CHASSIS - ASSEMBLY - BLACK (INC. 2-6 AND FOUR NO. 7)
  • 2
    1623-797 ...INSERT
    ...INSERT
  • 3
    1623-428 ...SCREW, CAP
    ...SCREW, CAP
  • 4
    8476-835 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 5
    1712-139 ...BRACKET, MOUNTING - RESONATOR
    ...BRACKET, MOUNTING - RESONATOR
  • 6
    0423-391 ...INSERT
    ...INSERT
  • 7
    8427-802 ...NUT, LOCK
    ...NUT, LOCK
  • 8
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    8408-516 SCREW, CAP
    SCREW, CAP
  • 10
    0630-255 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 11
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
  • 12
    4606-454 STRAP, HOLD-DOWN - RIGHT
    STRAP, HOLD-DOWN - RIGHT
  • 12
    4606-455 STRAP, HOLD-DOWN - LEFT
    STRAP, HOLD-DOWN - LEFT
  • 13
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 14
    0623-101 CLIP, ROUTING - SNAP-IN
    CLIP, ROUTING - SNAP-IN
  • 15
    1623-625 PLUG
    PLUG
  • 16
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 17
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 18
    8471-616 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    3706-504 BRACKET, TOE HOOK - RIGHT - BLACK
    BRACKET, TOE HOOK - RIGHT - BLACK
  • 19
    3706-505 BRACKET, TOE HOOK - LEFT - BLACK
    BRACKET, TOE HOOK - LEFT - BLACK
  • 20
    3706-502 SHIELD, TOE - RIGHT - BLACK
    SHIELD, TOE - RIGHT - BLACK
  • 20
    3706-503 SHIELD, TOE - LEFT - BLACK
    SHIELD, TOE - LEFT - BLACK
  • 21
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 22
    8061-708 RIVET
    RIVET
  • 23
    1670-826 BRACKET, MOUNTING - FUEL FILTER
    BRACKET, MOUNTING - FUEL FILTER
  • 24
    8050-157 WASHER
    WASHER
  • 25
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    8408-820 SCREW, CAP
    SCREW, CAP
  • 27
    1707-340 BRACKET, MOUNTING - FRONT SUSPENSION (INC. 28-29)
    BRACKET, MOUNTING - FRONT SUSPENSION (INC. 28-29)
  • 28
    0605-763 ...BUSHING
    ...BUSHING
  • 29
    1623-443 ...BOLT, RIBBED
    ...BOLT, RIBBED
  • 30
    0607-806 FRAME, MOUNTING - SHOCK - RIGHT
    FRAME, MOUNTING - SHOCK - RIGHT
  • 30
    0607-807 FRAME, MOUNTING - SHOCK - LEFT
    FRAME, MOUNTING - SHOCK - LEFT
  • 31
    8408-625 SCREW, CAP
    SCREW, CAP
  • 32
    8427-602 NUT, LOCK
    NUT, LOCK
  • 33
    8408-620 SCREW, CAP
    SCREW, CAP
  • 34
    0423-029 SCREW, SHOULDER
    SCREW, SHOULDER
  • 35
    4606-308 CLOSE-OFF, FRONT END
    CLOSE-OFF, FRONT END
  • 36
    5606-596 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 37
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 38
    8060-706 RIVET
    RIVET
  • 39
    6606-056 SUPPORT, TUNNEL
    SUPPORT, TUNNEL
  • 40
    4706-667 END CAP, TUNNEL - BLACK
    END CAP, TUNNEL - BLACK
  • 41
    4706-547 SNOWFLAP
    SNOWFLAP
  • 42
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 43
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 44
    8061-706 RIVET
    RIVET
  • 45
    0609-863 TAILLIGHT, LED
    TAILLIGHT, LED
  • 46
    0623-301 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 47
    4706-666 BUMPER, REAR - BLACK (INC. FOUR NO. 6)
    BUMPER, REAR - BLACK (INC. FOUR NO. 6)
  • 48
    8611-720 DECAL, REFLECTOR - RIGHT - RED
    DECAL, REFLECTOR - RIGHT - RED
  • 48
    8611-721 DECAL, REFLECTOR - LEFT - RED
    DECAL, REFLECTOR - LEFT - RED
  • 49
    9611-308 DECAL, TUNNEL
    DECAL, TUNNEL
  • 50
    6606-241 SADDLEBAG
    SADDLEBAG
