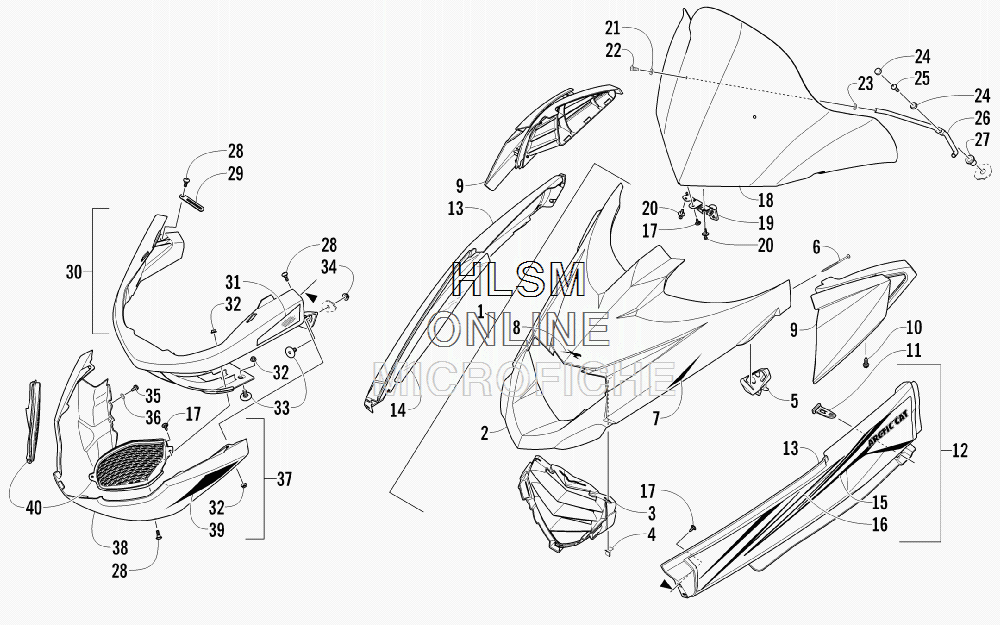

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat Z1 TURBO LXR (ORANGE) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-959 HOOD W/DECALS - BLACK (INC. 2-8)
    HOOD W/DECALS - BLACK (INC. 2-8)
  • 2
    7800-520 ...HOOD W/O DECALS - BLACK (INC. 3-6)
    ...HOOD W/O DECALS - BLACK (INC. 3-6)
  • 3
    5606-655 ......GRILLE, HOOD - BLACK
    ......GRILLE, HOOD - BLACK
  • 4
    1623-765 ......CLIP, RETAINING
    ......CLIP, RETAINING
  • 5
    1623-768 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
    ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
  • 5
    1623-769 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
    ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
  • 6
    1623-810 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 7
    9611-176 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 7
    9611-177 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 8
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 9
    6606-232 BEZEL, INTAKE - RIGHT - GREEN
    BEZEL, INTAKE - RIGHT - GREEN
  • 9
    6606-233 BEZEL, INTAKE - LEFT - GREEN
    BEZEL, INTAKE - LEFT - GREEN
  • 9
    6606-230 BEZEL, INTAKE - RIGHT - BLACK
    BEZEL, INTAKE - RIGHT - BLACK
  • 9
    6606-231 BEZEL, INTAKE - LEFT - BLACK
    BEZEL, INTAKE - LEFT - BLACK
  • 10
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 12
    2718-974 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 13-16)
    SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 13-16)
  • 12
    2718-975 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 13 AND 15-16)
    SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 13 AND 15-16)
  • 13
    4706-610 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK
    ...SPAR, FRONT W/O DECALS - RIGHT - BLACK
  • 13
    4706-611 ...SPAR, FRONT W/O DECALS - LEFT - BLACK
    ...SPAR, FRONT W/O DECALS - LEFT - BLACK
  • 14
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 15
    9611-158 ...DECAL, FRONT SPAR - REAR RIGHT
    ...DECAL, FRONT SPAR - REAR RIGHT
  • 15
    9611-159 ...DECAL, FRONT SPAR - REAR LEFT
    ...DECAL, FRONT SPAR - REAR LEFT
  • 16
    9611-164 ...DECAL, FRONT SPAR - FORWARD RIGHT
    ...DECAL, FRONT SPAR - FORWARD RIGHT
  • 16
    9611-165 ...DECAL, FRONT SPAR - FORWARD LEFT
    ...DECAL, FRONT SPAR - FORWARD LEFT
  • 17
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    6606-255 WINDSHIELD
    WINDSHIELD
  • 19
    4706-442 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 20
    0623-362 RIVET, PLASTIC
    RIVET, PLASTIC
  • 21
    1623-837 WASHER, RUBBER
    WASHER, RUBBER
  • 22
    1623-842 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    8050-242 WASHER
    WASHER
  • 24
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 25
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    4706-805 SUPPORT, WINDSHIELD
    SUPPORT, WINDSHIELD
  • 27
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 28
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 29
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 30
    2718-942 BUMPER, FRONT - ORANGE (INC. 31)
    BUMPER, FRONT - ORANGE (INC. 31)
  • 31
    9611-384 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 31
    9611-385 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 32
    8427-602 NUT, LOCK
    NUT, LOCK
  • 33
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 34
    8424-602 NUT
    NUT
  • 35
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 36
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 37
    2718-944 FASCIA, BUMPER W/DECALS - LOWER - ORANGE (INC. 38-39)
    FASCIA, BUMPER W/DECALS - LOWER - ORANGE (INC. 38-39)
  • 38
    5606-465 ...FASCIA, BUMPER - LOWER - ORANGE
    ...FASCIA, BUMPER - LOWER - ORANGE
  • 39
    9611-160 ...DECAL, FASCIA - LOWER - RIGHT
    ...DECAL, FASCIA - LOWER - RIGHT
  • 39
    9611-161 ...DECAL, FASCIA - LOWER - LEFT
    ...DECAL, FASCIA - LOWER - LEFT
  • 40
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 40
    4606-605 VENT, BUMPER - LEFT - BLACK
    VENT, BUMPER - LEFT - BLACK
