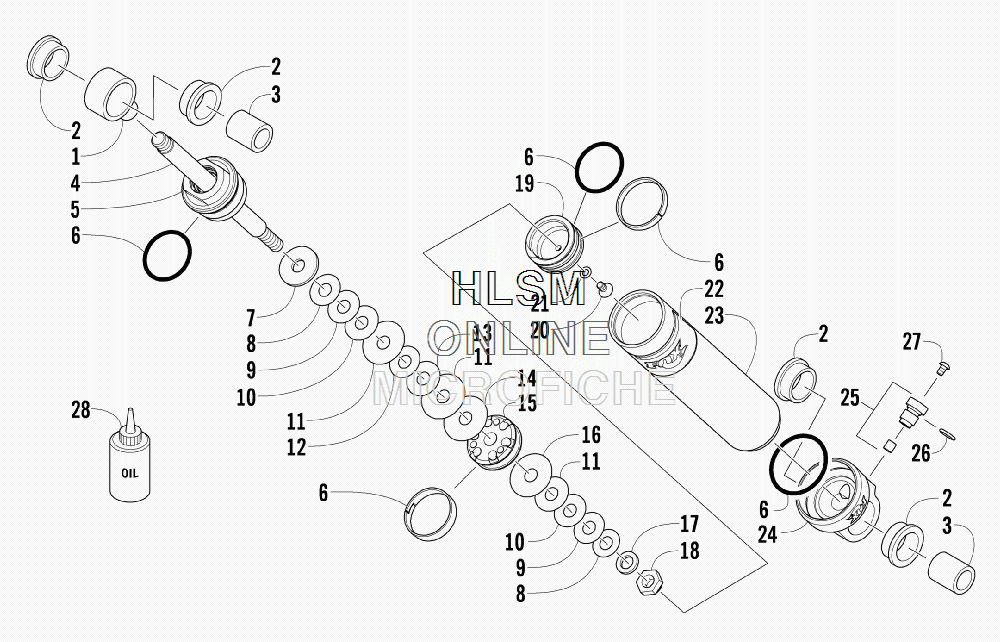

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat Z1 TURBO EXT - 2011 года выпуска`
-
№АртикулНазвание
-
-1704-830 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-893 EYELET, SHOCKEYELET, SHOCK
-
21604-222 BUSHINGBUSHING
-
32604-223 SLEEVESLEEVE
-
43604-481 ROD, SHOCKROD, SHOCK
-
52604-413 CAP, SHOCKCAP, SHOCK
-
62604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
70603-540 WASHER, TOP OUTWASHER, TOP OUT
-
80603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
90603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
100603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
110603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
120603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
130603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
140603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
152604-412 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
160603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
170603-389 WASHER, BACKUPWASHER, BACKUP
-
180603-301 NUTNUT
-
192604-816 PISTON, FLOATINGPISTON, FLOATING
-
201604-316 SCREW, MACHINE W/O-RING (INC. 21)SCREW, MACHINE W/O-RING (INC. 21)
-
211604-425 ...O-RING...O-RING
-
222604-897 DECAL, SHOCKDECAL, SHOCK
-
233604-482 BODY, SHOCKBODY, SHOCK
-
242604-817 END CAP, SHOCK - ASSEMBLY (INC. 25-26)END CAP, SHOCK - ASSEMBLY (INC. 25-26)
-
250703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 26)...VALVE, PRESSURE - ASSEMBLY (INC. 26)
-
261604-318 ......O-RING......O-RING
-
270624-097 SCREW, VALVESCREW, VALVE
-
285639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
