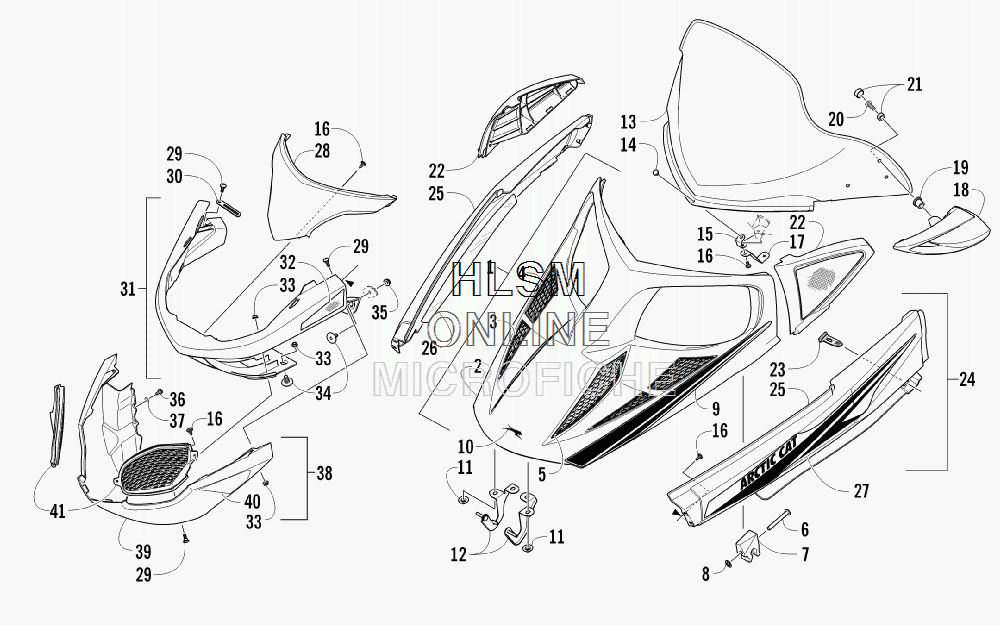

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat TZ1 LXR LTD - 2011 года выпуска`
-
№АртикулНазвание
-
13718-049 HOOD W/DECALS - CRIMSON RED (INC. 2-10)HOOD W/DECALS - CRIMSON RED (INC. 2-10)
-
27800-955 ...HOOD W/O DECALS - CRIMSON RED (INC. 3-8)...HOOD W/O DECALS - CRIMSON RED (INC. 3-8)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-610 ......PIN, RETAINING......PIN, RETAINING
-
75706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
75706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
81623-409 ......NUT, PUSH......NUT, PUSH
-
99611-252 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
99611-253 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
108611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
111623-469 NUT, STAMPEDNUT, STAMPED
-
123706-348 BRACKET, HINGE - RIGHTBRACKET, HINGE - RIGHT
-
123706-347 BRACKET, HINGE - LEFTBRACKET, HINGE - LEFT
-
135606-963 WINDSHIELDWINDSHIELD
-
141623-677 RIVET, PLASTICRIVET, PLASTIC
-
154606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
161623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
175606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
184639-734 MIRROR, KIT (INC. 19-21)MIRROR, KIT (INC. 19-21)
-
190623-845 ...NUT, EXPANSION...NUT, EXPANSION
-
200623-902 ...SCREW, MACHINE...SCREW, MACHINE
-
210124-054 ...SNAP CAP W/WASHER...SNAP CAP W/WASHER
-
226606-248 BEZEL, INTAKE - RIGHT - CRIMSON REDBEZEL, INTAKE - RIGHT - CRIMSON RED
-
226606-249 BEZEL, INTAKE - LEFT - CRIMSON REDBEZEL, INTAKE - LEFT - CRIMSON RED
-
234606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
243718-052 SPAR, FRONT W/DECALS - RIGHT - CRIMSON RED (INC. 25-27)SPAR, FRONT W/DECALS - RIGHT - CRIMSON RED (INC. 25-27)
-
243718-053 SPAR, FRONT W/DECALS - LEFT - CRIMSON RED (INC. 25 AND 27)SPAR, FRONT W/DECALS - LEFT - CRIMSON RED (INC. 25 AND 27)
-
254706-982 ...SPAR, FRONT W/O DECALS - RIGHT - CRIMSON RED...SPAR, FRONT W/O DECALS - RIGHT - CRIMSON RED
-
254706-983 ...SPAR, FRONT W/O DECALS - LEFT - CRIMSON RED...SPAR, FRONT W/O DECALS - LEFT - CRIMSON RED
-
264606-934 ...FOIL, SPAR - RIGHT...FOIL, SPAR - RIGHT
-
279611-258 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
279611-259 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
284706-969 FASCIA, BUMPER - UPPER - CRIMSON REDFASCIA, BUMPER - UPPER - CRIMSON RED
-
290423-355 SCREW, SHOULDERSCREW, SHOULDER
-
303002-964 CLAMP, WIRECLAMP, WIRE
-
313718-039 BUMPER, FRONT - CRIMSON RED (INC. 32)BUMPER, FRONT - CRIMSON RED (INC. 32)
-
329611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
329611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
338427-602 NUT, LOCKNUT, LOCK
-
341623-775 SCREW, SHOULDERSCREW, SHOULDER
-
358424-602 NUTNUT
-
360623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
378053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
383718-023 FASCIA, BUMPER W/DECALS - LOWER - BLACK (INC. 39-40)FASCIA, BUMPER W/DECALS - LOWER - BLACK (INC. 39-40)
-
395606-462 ...FASCIA, BUMPER - LOWER - BLACK...FASCIA, BUMPER - LOWER - BLACK
-
409611-250 ...DECAL, LOWER BUMPER FASCIA - RIGHT...DECAL, LOWER BUMPER FASCIA - RIGHT
-
409611-251 ...DECAL, LOWER BUMPER FASCIA - LEFT...DECAL, LOWER BUMPER FASCIA - LEFT
-
414606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
414606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
