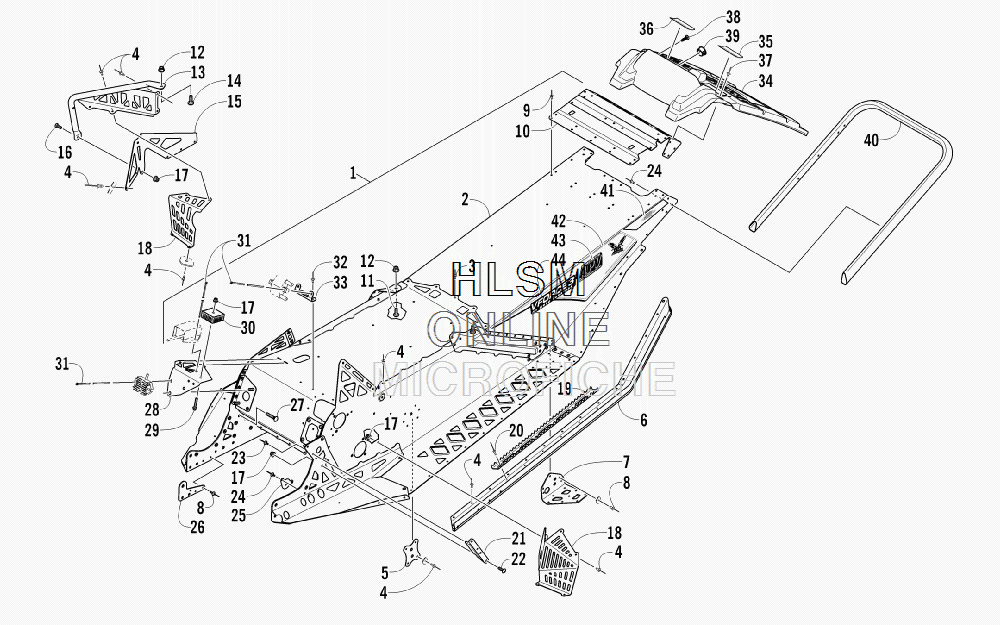

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat SNO PRO 600 CROSS COUNTRY - 2011 года выпуска`
-
№АртикулНазвание
-
11707-462 CHASSIS ASSEMBLY - BLACK (INC. 2-11 AND TWO NO. 12)CHASSIS ASSEMBLY - BLACK (INC. 2-11 AND TWO NO. 12)
-
21707-440 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
38061-682 ...RIVET...RIVET
-
41623-130 ...RIVET...RIVET
-
51607-090 ...PLATE, BACKING...PLATE, BACKING
-
64706-750 ...ROLL, TUNNEL - RIGHT - BLACK...ROLL, TUNNEL - RIGHT - BLACK
-
64706-751 ...ROLL, TUNNEL - LEFT - BLACK...ROLL, TUNNEL - LEFT - BLACK
-
74706-834 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK
-
74706-835 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK
-
81623-241 ...RIVET...RIVET
-
98060-706 ...RIVET...RIVET
-
101707-441 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
118476-835 ...SCREW, MACHINE...SCREW, MACHINE
-
128427-802 ...NUT, LOCK...NUT, LOCK
-
134706-514 HOOK, TOE - RIGHT - BLACKHOOK, TOE - RIGHT - BLACK
-
134706-515 HOOK, TOE - LEFT - BLACKHOOK, TOE - LEFT - BLACK
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
154706-510 GUSSET, TOE STOP - RIGHT - BLACKGUSSET, TOE STOP - RIGHT - BLACK
-
154706-511 GUSSET, TOE STOP - LEFT - BLACKGUSSET, TOE STOP - LEFT - BLACK
-
168476-630 SCREW, MACHINESCREW, MACHINE
-
178427-602 NUT, LOCKNUT, LOCK
-
184706-516 SHIELD, TOE - RIGHT - BLACKSHIELD, TOE - RIGHT - BLACK
-
184706-517 SHIELD, TOE - LEFT - BLACKSHIELD, TOE - LEFT - BLACK
-
194706-307 PLATE, GRIP - GREENPLATE, GRIP - GREEN
-
208060-506 RIVETRIVET
-
210608-585 BRACKET, ENGINE/CHASSIS MOUNTING - LEFTBRACKET, ENGINE/CHASSIS MOUNTING - LEFT
-
228476-620 SCREW, MACHINESCREW, MACHINE
-
231623-206 RIVETRIVET
-
248060-686 RIVETRIVET
-
255606-672 PLATE, BACKING - PTO MOUNTINGPLATE, BACKING - PTO MOUNTING
-
265606-628 BRACE, SUPPORT - INNERBRACE, SUPPORT - INNER
-
271623-020 BOLT, CARRIAGEBOLT, CARRIAGE
-
285606-966 PANEL, ELECTRICALPANEL, ELECTRICAL
-
298408-635 SCREW, CAPSCREW, CAP
-
300630-181 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
310123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
310123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
328060-682 RIVETRIVET
-
335606-536 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
345606-525 SNOWFLAPSNOWFLAP
-
355611-853 DECAL, WARNING - TOWING - ENGLISHDECAL, WARNING - TOWING - ENGLISH
-
365611-852 DECAL, WARNING - TOWING - FRENCHDECAL, WARNING - TOWING - FRENCH
-
378061-708 RIVETRIVET
-
381623-343 PLUG, HOLEPLUG, HOLE
-
395606-988 PLUG, HOLEPLUG, HOLE
-
404706-882 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
418611-676 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
418611-677 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
429611-292 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
429611-293 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
437611-150 DECAL, "APV"DECAL, "APV"
-
448611-994 DECAL, "V-FORCE"DECAL, "V-FORCE"
