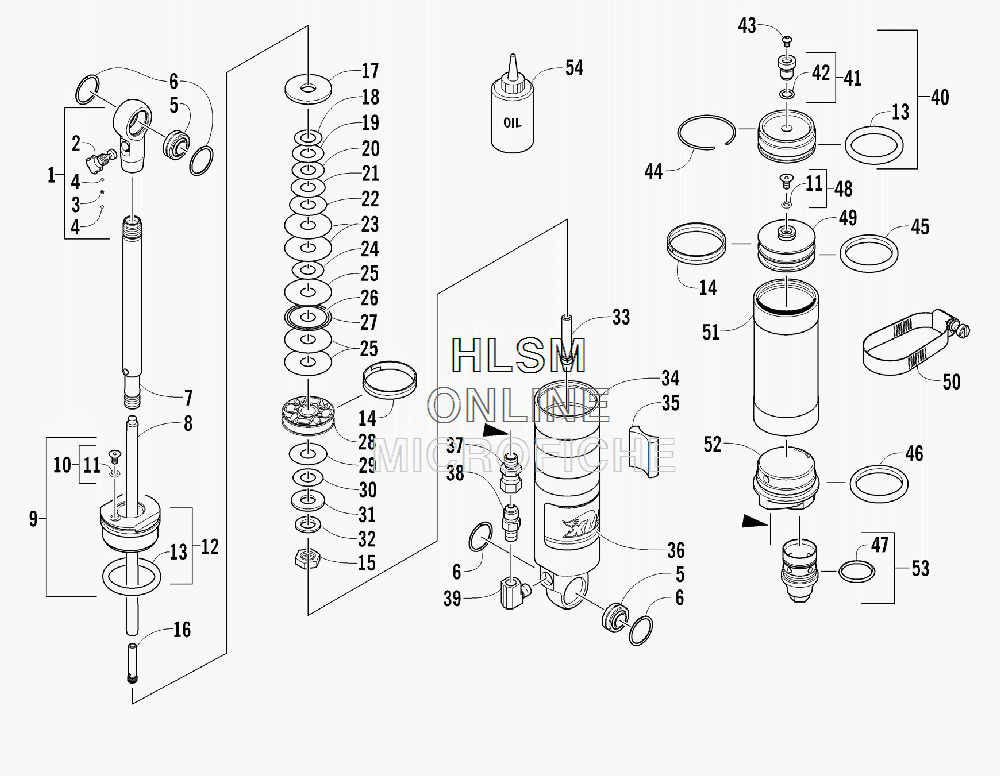

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat SNO PRO 600 CROSS COUNTRY (INTERNATIONAL) - 2011 года выпуска

№

Артикул

Название
-

2704-049 COMPLETE SHOCK ABSORBER

COMPLETE SHOCK ABSORBER

130 ₽
1

2604-961 EYELET, SHOCK - ASSEMBLY (INC. 2-4)

EYELET, SHOCK - ASSEMBLY (INC. 2-4)

48 460 ₽
2

2604-958 ...KNOB, DAMPING ADJUSTER

...KNOB, DAMPING ADJUSTER

12 680 ₽
3

2604-960 ...SPRING

...SPRING

1 660 ₽
4

1604-315 ...BALL, ADJUSTER

...BALL, ADJUSTER

630 ₽
5

1604-664 BEARING

BEARING

6 860 ₽
6

3604-147 RING, RETAINING

RING, RETAINING

2 490 ₽
7

2604-955 SHAFT, SHOCK

SHAFT, SHOCK

27 450 ₽
8

2604-954 ROD, DAMPING ADJUSTER - ASSEMBLY

ROD, DAMPING ADJUSTER - ASSEMBLY

16 840 ₽
9

3604-162 KIT, REBUILD - SHOCK (INC. 10-15)

KIT, REBUILD - SHOCK (INC. 10-15)

30 150 ₽
10

2604-530 ...SCREW, MACHINE (INC. ONE NO. 11)

...SCREW, MACHINE (INC. ONE NO. 11)

480 ₽
11

1604-425 ......O-RING

......O-RING

690 ₽
12

2604-956 ...BEARING - ASSEMBLY (INC. ONE NO. 13)

...BEARING - ASSEMBLY (INC. ONE NO. 13)

37 020 ₽
13

0603-671 ......O-RING

......O-RING

630 ₽
14

1603-235 ...STRAP, PISTON

...STRAP, PISTON

3 110 ₽
15

2604-448 ...NUT

...NUT

2 700 ₽
16

2604-953 NEEDLE, DAMPING W/O-RING

NEEDLE, DAMPING W/O-RING

6 650 ₽
17

2604-449 WASHER, TOP OUT

WASHER, TOP OUT

2 070 ₽
18

3604-628 VALVE, 0.800 X 0.004 IN.

VALVE, 0.800 X 0.004 IN.

1 870 ₽
19

2604-479 VALVE, 0.950 X 0.008 IN.

VALVE, 0.950 X 0.008 IN.

1 020 ₽
20

2604-485 VALVE, 1.100 X 0.008 IN.

VALVE, 1.100 X 0.008 IN.

1 020 ₽
21

2604-491 VALVE, 1.350 X 0.008 IN.

VALVE, 1.350 X 0.008 IN.

1 870 ₽
22

2604-496 VALVE, 1.425 X 0.008 IN.

VALVE, 1.425 X 0.008 IN.

1 870 ₽
23

2604-502 VALVE, 1.600 X 0.010 IN.

VALVE, 1.600 X 0.010 IN.

1 870 ₽
24

2604-480 VALVE, 0.950 X 0.010 IN.

VALVE, 0.950 X 0.010 IN.

2 070 ₽
25

2604-501 VALVE, 1.600 X 0.008 IN.

VALVE, 1.600 X 0.008 IN.

1 870 ₽
26

2604-495 VALVE, 1.425 X 0.006 IN.

VALVE, 1.425 X 0.006 IN.

1 870 ₽
27

2604-692 VALVE RING, 1.600 X 0.012 IN.

VALVE RING, 1.600 X 0.012 IN.

2 070 ₽
28

2604-673 PISTON, DAMPING

PISTON, DAMPING

15 180 ₽
29

2604-498 VALVE, 1.425 X 0.012 IN.

VALVE, 1.425 X 0.012 IN.

1 870 ₽
30

3604-626 VALVE, 1.000 X 0.004 IN.

VALVE, 1.000 X 0.004 IN.

1 870 ₽
31

3604-624 WASHER, TOP OUT

WASHER, TOP OUT

1 040 ₽
32

3604-184 WASHER, BACKUP

WASHER, BACKUP

2 070 ₽
33

3604-423 VALVE, CHECK - ASSEMBLY

VALVE, CHECK - ASSEMBLY

23 290 ₽
34

3604-514 BODY, SHOCK

BODY, SHOCK

54 070 ₽
35

3604-518 SPACER, SHOCK/RESERVOIR

SPACER, SHOCK/RESERVOIR

4 150 ₽
36

2604-889 DECAL, SHOCK

DECAL, SHOCK

5 610 ₽
37

2604-208 ADAPTER, FITTING

ADAPTER, FITTING

8 310 ₽
38

3604-521 FITTING

FITTING

9 350 ₽
39

3604-520 FITTING, ELBOW

FITTING, ELBOW

10 810 ₽
40

2603-525 END CAP, RESERVOIR (INC. ONE NO. 13 AND 41-42)

END CAP, RESERVOIR (INC. ONE NO. 13 AND 41-42)

11 850 ₽
41

0703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 42)

...VALVE, PRESSURE - ASSEMBLY (INC. 42)

8 310 ₽
42

1604-318 ......O-RING

......O-RING

1 870 ₽
43

0624-097 SCREW, VALVE

SCREW, VALVE

130 ₽
44

0604-992 RING, RETAINING

RING, RETAINING

920 ₽
45

3604-539 KIT, REBUILD - RESERVOIR (INC. ONE NO. 11, 13, 14, AND 46-48)

KIT, REBUILD - RESERVOIR (INC. ONE NO. 11, 13, 14, AND 46-48)

29 950 ₽
46

2603-504 ...O-RING

...O-RING

2 070 ₽
47

2603-502 ...O-RING

...O-RING

980 ₽
48

1604-316 ...SCREW, RELIEF (INC. ONE NO. 11)

...SCREW, RELIEF (INC. ONE NO. 11)

770 ₽
49

2604-969 PISTON, INTERNAL FLOATING - ASSEMBLY

PISTON, INTERNAL FLOATING - ASSEMBLY

14 350 ₽
50

3604-519 CLAMP, RESERVOIR

CLAMP, RESERVOIR

3 950 ₽
51

2603-515 RESERVOIR

RESERVOIR

24 540 ₽
52

3604-516 HOUSING, DAMPING ADJUSTER

HOUSING, DAMPING ADJUSTER

52 410 ₽
53

3604-620 PLUG, END CAP (INC. 47)

PLUG, END CAP (INC. 47)

18 510 ₽
54

5639-240 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
