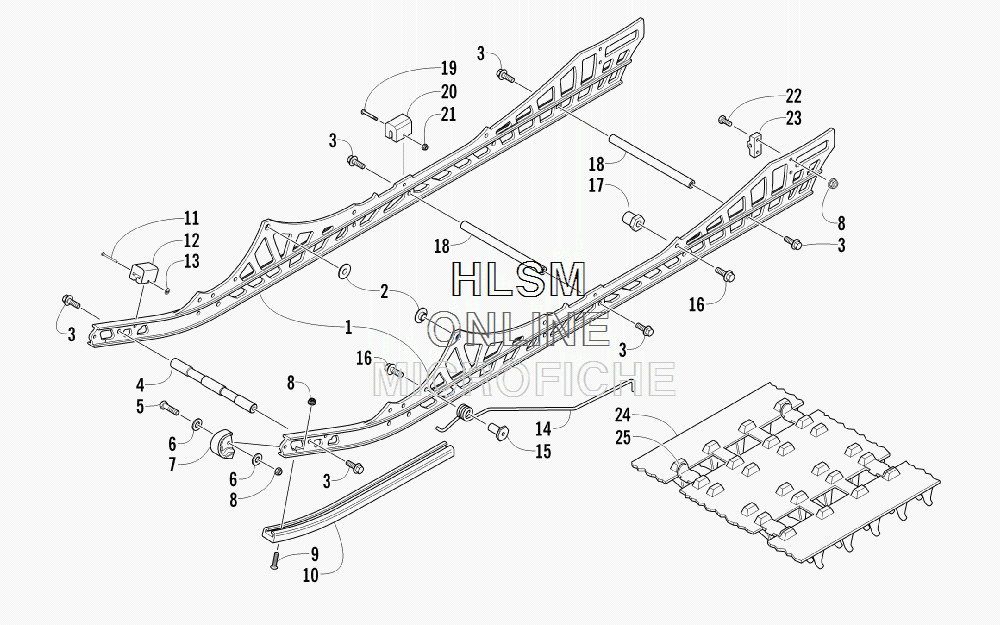

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat M8 SNO PRO LTD 153 (INTERNATIONAL) - 2011 года выпуска
-
№АртикулНазвание
-
-1704-975 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-396 RAIL, FORMEDRAIL, FORMED
-
22604-733 INSERT, RAILINSERT, RAIL
-
31623-502 SCREW, CAPSCREW, CAP
-
43604-401 AXLE, CROSSBRACE/LIMITERAXLE, CROSSBRACE/LIMITER
-
58002-043 SCREW, CAPSCREW, CAP
-
68050-217 WASHERWASHER
-
73604-003 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88047-366 NUT, LOCKNUT, LOCK
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
102604-798 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
141704-734 SCRATCHER, ICE - RIGHTSCRATCHER, ICE - RIGHT
-
141704-735 SCRATCHER, ICE - LEFTSCRATCHER, ICE - LEFT
-
153604-381 BUSHING, ICE SCRATCHERBUSHING, ICE SCRATCHER
-
161623-566 SCREW, CAPSCREW, CAP
-
173604-400 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
183604-402 AXLE, CROSSBRACEAXLE, CROSSBRACE
-
198017-405 SCREW, MACHINESCREW, MACHINE
-
201604-429 PAD, SHOCKPAD, SHOCK
-
218041-246 NUT, LOCKNUT, LOCK
-
228002-042 SCREW, CAPSCREW, CAP
-
230704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
242602-167 TRACK, POWER CLAW-15X153X2.25 (3.0 PITCH) (INC. 25)TRACK, POWER CLAW-15X153X2.25 (3.0 PITCH) (INC. 25)
-
252602-081 ...CLIP, GUIDE...CLIP, GUIDE
