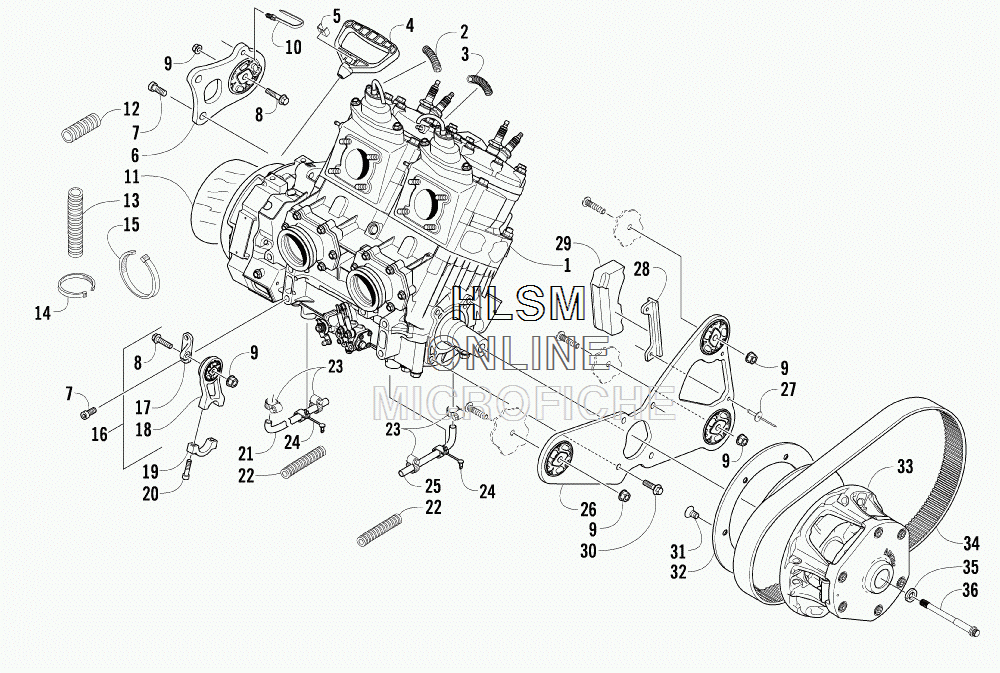

ENGINE AND RELATED PARTS для Arctic Cat M8 HCR (GREEN) [S2011M8HHCOSG] (INTERNATIONAL) - 2011 года выпуска`
-
№АртикулНазвание
-
10662-609 ENGINE, AB80L4 W/O EFI COMPONENTSENGINE, AB80L4 W/O EFI COMPONENTS
-
21619-221 LOOM, HIGH-TEMPERATURELOOM, HIGH-TEMPERATURE
-
31619-220 LOOM, HIGH-TEMPERATURELOOM, HIGH-TEMPERATURE
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
60708-581 MOUNT, ENGINE - MAGMOUNT, ENGINE - MAG
-
71623-504 SCREW, CAPSCREW, CAP
-
88020-136 SCREW, CAPSCREW, CAP
-
98047-426 NUT, LOCKNUT, LOCK
-
100623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
114606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
120619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
131619-131 CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.
-
140123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
150623-144 TIE, CABLE - 17.5 IN.TIE, CABLE - 17.5 IN.
-
160708-523 BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 8-9 AND 17-18)BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 8-9 AND 17-18)
-
170608-549 ...BRACKET, ENGINE MOUNTING - UPPER RIGHT...BRACKET, ENGINE MOUNTING - UPPER RIGHT
-
180708-519 ...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT
-
190608-467 CAP, MOUNTING BRACKET - ENGINECAP, MOUNTING BRACKET - ENGINE
-
201623-603 SCREW, CAPSCREW, CAP
-
210610-774 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
220619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
230623-373 CLAMP, HOSECLAMP, HOSE
-
241623-659 CLAMP, PUSH-MOUNTCLAMP, PUSH-MOUNT
-
250610-699 HOSE, COOLANT - PTO/THROTTLE BODYHOSE, COOLANT - PTO/THROTTLE BODY
-
260708-558 BRACKET, ENGINE MOUNTING - LEFT (INC. 27-28)BRACKET, ENGINE MOUNTING - LEFT (INC. 27-28)
-
278060-730 ...RIVET...RIVET
-
280608-565 ...PLATE, BACKING - TORQUE BUMPER...PLATE, BACKING - TORQUE BUMPER
-
290608-462 BUMPER, TORQUEBUMPER, TORQUE
-
308408-821 SCREW, CAPSCREW, CAP
-
311623-821 SCREW, MACHINESCREW, MACHINE
-
320645-410 RING, DAMPERRING, DAMPER
-
330746-245 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
340627-046 BELT, DRIVEBELT, DRIVE
-
351623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
361623-792 BOLT, CLUTCHBOLT, CLUTCH
