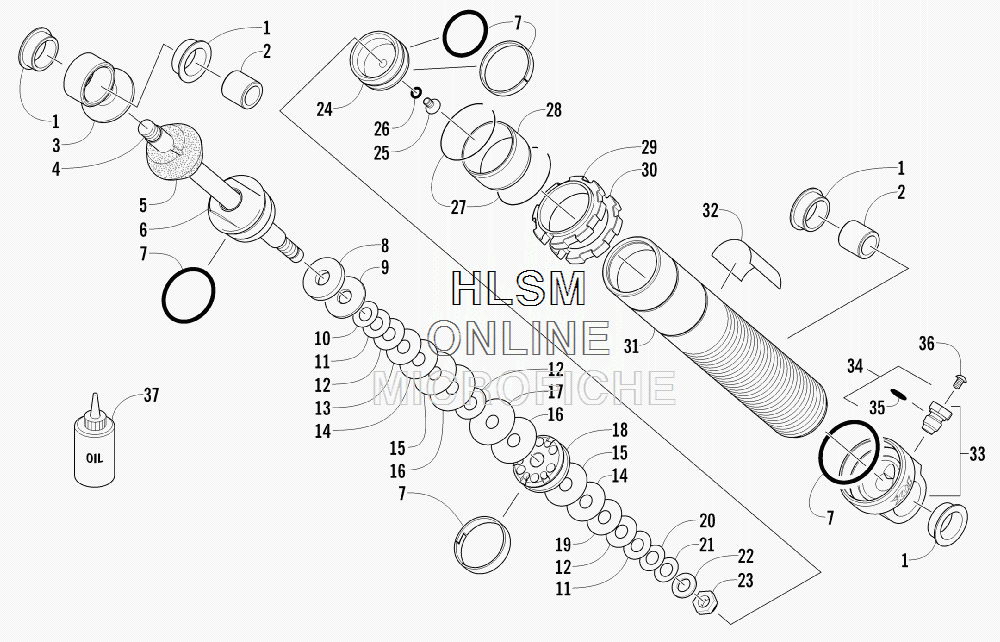

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat M8 162 (INTERNATIONAL) - 2011 года выпуска

  • №
    Артикул
    Название
  • -
    2703-802 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    0603-955 BUSHING
    BUSHING
  • 2
    1603-209 SLEEVE
    SLEEVE
  • 3
    0603-910 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    2603-416 SHAFT, SHOCK-.498 X 8.850"
    SHAFT, SHOCK-.498 X 8.850"
  • 5
    2603-459 BUMPER, SHOCK
    BUMPER, SHOCK
  • 6
    2604-812 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 7
    2604-815 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 8
    2603-474 SPACER
    SPACER
  • 9
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 10
    0603-332 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 11
    0603-334 VALVE, 0.800 X 0.008 IN.
    VALVE, 0.800 X 0.008 IN.
  • 12
    0603-337 VALVE, 0.900 X 0.008 IN.
    VALVE, 0.900 X 0.008 IN.
  • 13
    0603-339 VALVE, 1.000 X 0.006 IN.
    VALVE, 1.000 X 0.006 IN.
  • 14
    0603-342 VALVE, 1.100 X 0.006 IN.
    VALVE, 1.100 X 0.006 IN.
  • 15
    0603-346 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 16
    0603-348 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 17
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 18
    0603-209 PISTON, 0.081 IN. - ORIFICE
    PISTON, 0.081 IN. - ORIFICE
  • 19
    0603-340 VALVE, 1.000 X 0.008 IN.
    VALVE, 1.000 X 0.008 IN.
  • 20
    0603-331 VALVE, 0.700 X 0.008 IN.
    VALVE, 0.700 X 0.008 IN.
  • 21
    2603-902 VALVE, 0.550 X 0.020 IN.
    VALVE, 0.550 X 0.020 IN.
  • 22
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 23
    0603-301 NUT
    NUT
  • 24
    2604-816 PISTON, FLOATING
    PISTON, FLOATING
  • 25
    1604-316 SCREW, MACHINE W/O-RING (INC. 26)
    SCREW, MACHINE W/O-RING (INC. 26)
  • 26
    1604-425 ...O-RING
    ...O-RING
  • 27
    2603-245 RETAINER, WEAR SLEEVE
    RETAINER, WEAR SLEEVE
  • 28
    2603-246 SLEEVE, WEAR
    SLEEVE, WEAR
  • 29
    2604-840 NUT, ADJUSTER
    NUT, ADJUSTER
  • 30
    2604-841 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 31
    2603-839 BODY, SHOCK
    BODY, SHOCK
  • 32
    2604-897 DECAL, SHOCK
    DECAL, SHOCK
  • 33
    2604-817 END CAP, SHOCK - ASSEMBLY (INC. 34-35)
    END CAP, SHOCK - ASSEMBLY (INC. 34-35)
  • 34
    0703-341 ...VALVE, PRESSURE (INC. 35)
    ...VALVE, PRESSURE (INC. 35)
  • 35
    1604-318 ......O-RING, VALVE
    ......O-RING, VALVE
  • 36
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 37
    5639-240 SEMI-SYN SHOCK OIL-1 QUART
    SEMI-SYN SHOCK OIL-1 QUART
