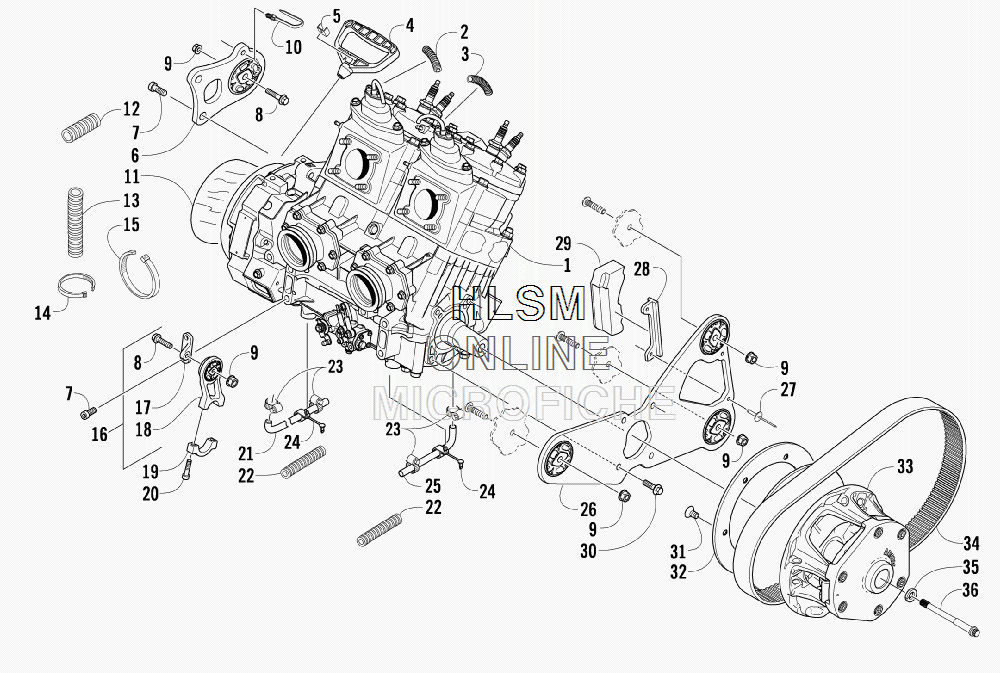

ENGINE AND RELATED PARTS для Arctic Cat M8 153 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-609 ENGINE, AB80L4 W/O EFI COMPONENTS
    ENGINE, AB80L4 W/O EFI COMPONENTS
  • 2
    1619-221 LOOM, HIGH TEMP-1/4 X 15"
    LOOM, HIGH TEMP-1/4 X 15"
  • 3
    1619-220 LOOM, HIGH TEMP-1/4 X 11"
    LOOM, HIGH TEMP-1/4 X 11"
  • 4
    0636-363 HANDLE, RECOIL
    HANDLE, RECOIL
  • 5
    0606-885 CAP, RECOIL HANDLE
    CAP, RECOIL HANDLE
  • 6
    0708-581 MOUNT, ENGINE - MAG
    MOUNT, ENGINE - MAG
  • 7
    1623-504 SCREW, CAP-HSH M10X1.25X25 CL10.9 W/2353
    SCREW, CAP-HSH M10X1.25X25 CL10.9 W/2353
  • 8
    8020-136 SCREW, CAP-HFH 5/16-18 X 1.75 G5 Z & Y
    SCREW, CAP-HFH 5/16-18 X 1.75 G5 Z & Y
  • 9
    8047-426 NUT, LOCK
    NUT, LOCK
  • 10
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
  • 11
    4606-425 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 12
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 13
    1619-131 CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.
    CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.
  • 14
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 15
    0623-144 TIE, CABLE - 17.5 IN.
    TIE, CABLE - 17.5 IN.
  • 16
    0708-523 BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 8-9 AND 17-18)
    BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 8-9 AND 17-18)
  • 17
    0608-549 ...BRACKET, ENGINE MOUNTING - UPPER RIGHT
    ...BRACKET, ENGINE MOUNTING - UPPER RIGHT
  • 18
    0708-519 ...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT
    ...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT
  • 19
    0608-467 CAP, MOUNTING BRACKET - ENGINE
    CAP, MOUNTING BRACKET - ENGINE
  • 20
    1623-603 SCREW, CAP
    SCREW, CAP
  • 21
    0610-774 HOSE, COOLANT - MAG/THROTTLE BODY
    HOSE, COOLANT - MAG/THROTTLE BODY
  • 22
    0619-776 CONDUIT, FLEXIBLE - 5 FT
    CONDUIT, FLEXIBLE - 5 FT
  • 23
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    1623-659 CLAMP, PUSH-MOUNT
    CLAMP, PUSH-MOUNT
  • 25
    0610-699 HOSE, COOLANT - PTO/THROTTLE BODY
    HOSE, COOLANT - PTO/THROTTLE BODY
  • 26
    0708-558 BRACKET, ENGINE MOUNTING - LEFT (INC. 27-28)
    BRACKET, ENGINE MOUNTING - LEFT (INC. 27-28)
  • 27
    8060-730 ...RIVET
    ...RIVET
  • 28
    0608-565 ...PLATE, BACKING - TORQUE BUMPER
    ...PLATE, BACKING - TORQUE BUMPER
  • 29
    0608-462 BUMPER, TORQUE
    BUMPER, TORQUE
  • 30
    8408-821 SCREW, CAP
    SCREW, CAP
  • 31
    1623-821 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    0645-410 RING, DAMPER
    RING, DAMPER
  • 33
    0746-245 CLUTCH, DRIVE - UNCALIBRATED
    CLUTCH, DRIVE - UNCALIBRATED
  • 34
    0627-046 BELT, DRIVE-S-3C-1.448"WX45.998"OC-DC
    BELT, DRIVE-S-3C-1.448"WX45.998"OC-DC
  • 35
    1623-649 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 36
    1623-792 BOLT, CLUTCH
    BOLT, CLUTCH
