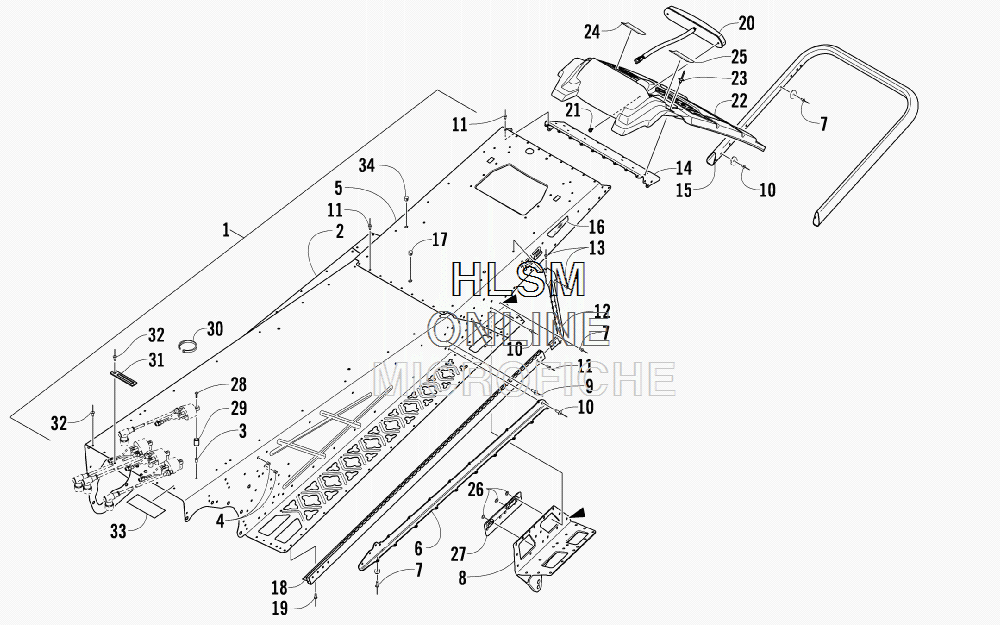

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat M1000 SNO PRO - 2011 года выпуска

  • №
    Артикул
    Название
  • -
    1707-428 COMPLETE CHASSIS ASSEMBLY
    COMPLETE CHASSIS ASSEMBLY
  • 1
    2718-738 TUNNEL ASSEMBLY (INC. 2-11)
    TUNNEL ASSEMBLY (INC. 2-11)
  • 2
    2718-735 ...TUNNEL, FRONT (INC. 3-4)
    ...TUNNEL, FRONT (INC. 3-4)
  • 3
    1623-562 ......INSERT, AL SERIES ALS4-1024-130
    ......INSERT, AL SERIES ALS4-1024-130
  • 4
    1623-657 ......INSERT,AT SERIES-ATS2-1024
    ......INSERT,AT SERIES-ATS2-1024
  • 5
    5606-500 ...TUNNEL, REAR
    ...TUNNEL, REAR
  • 6
    5606-402 ...BRACKET, TUNNEL SUPPORT - RIGHT
    ...BRACKET, TUNNEL SUPPORT - RIGHT
  • 6
    5606-403 ...BRACKET, TUNNEL SUPPORT - LEFT
    ...BRACKET, TUNNEL SUPPORT - LEFT
  • 7
    8060-686 ...RIVET
    ...RIVET
  • 8
    2706-456 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
    ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
  • 8
    2706-457 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
    ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
  • 9
    8060-682 ...RIVET,BLIND-DH SS62 ZINC
    ...RIVET,BLIND-DH SS62 ZINC
  • 10
    8060-688 ...RIVET,BLIND-DH SS66 ZINC
    ...RIVET,BLIND-DH SS66 ZINC
  • 11
    8060-484 ...RIVET, BLIND-DH SS53 ZINC
    ...RIVET, BLIND-DH SS53 ZINC
  • 12
    5606-594 GUSSET, TUNNEL ROLL - RIGHT
    GUSSET, TUNNEL ROLL - RIGHT
  • 12
    5606-595 GUSSET, TUNNEL ROLL - LEFT
    GUSSET, TUNNEL ROLL - LEFT
  • 13
    8060-488 RIVET
    RIVET
  • 14
    5606-253 END CAP, TUNNEL
    END CAP, TUNNEL
  • 15
    5606-479 BUMPER, REAR
    BUMPER, REAR
  • 16
    8611-520 DECAL, REFLECTOR - RED - RIGHT
    DECAL, REFLECTOR - RED - RIGHT
  • 16
    8611-521 DECAL, REFLECTOR - RED - LEFT
    DECAL, REFLECTOR - RED - LEFT
  • 17
    0623-562 PLUG,HOLE-3/8 DIA-BLK
    PLUG,HOLE-3/8 DIA-BLK
  • 18
    5606-490 ROLL, TUNNEL - RIGHT
    ROLL, TUNNEL - RIGHT
  • 18
    5606-491 ROLL, TUNNEL - LEFT
    ROLL, TUNNEL - LEFT
  • 19
    8060-482 RIVET
    RIVET
  • 20
    0609-863 TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED
    TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED
  • 21
    0623-301 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    5606-525 SNOWFLAP,LONG-INJ MOLD
    SNOWFLAP,LONG-INJ MOLD
  • 23
    8061-706 RIVET,BLIND-LF SS64 BLACK
    RIVET,BLIND-LF SS64 BLACK
  • 24
    5611-853 DECAL, WARNING - TOWING - ENGLISH
    DECAL, WARNING - TOWING - ENGLISH
  • 25
    5611-852 DECAL, WARNING - TOWING - FRENCH
    DECAL, WARNING - TOWING - FRENCH
  • 26
    0123-802 WASHER
    WASHER
  • 27
    4606-790 GUIDE, TRACK - TUNNEL - RIGHT
    GUIDE, TRACK - TUNNEL - RIGHT
  • 27
    4606-791 GUIDE, TRACK - TUNNEL - LEFT
    GUIDE, TRACK - TUNNEL - LEFT
  • 28
    1623-671 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    1623-045 SPACER
    SPACER
  • 30
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 31
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 32
    8060-486 RIVET
    RIVET
  • 33
    3606-814 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 34
    0623-355 PLUG,HOLE-5/16 DIA-BLK
    PLUG,HOLE-5/16 DIA-BLK
