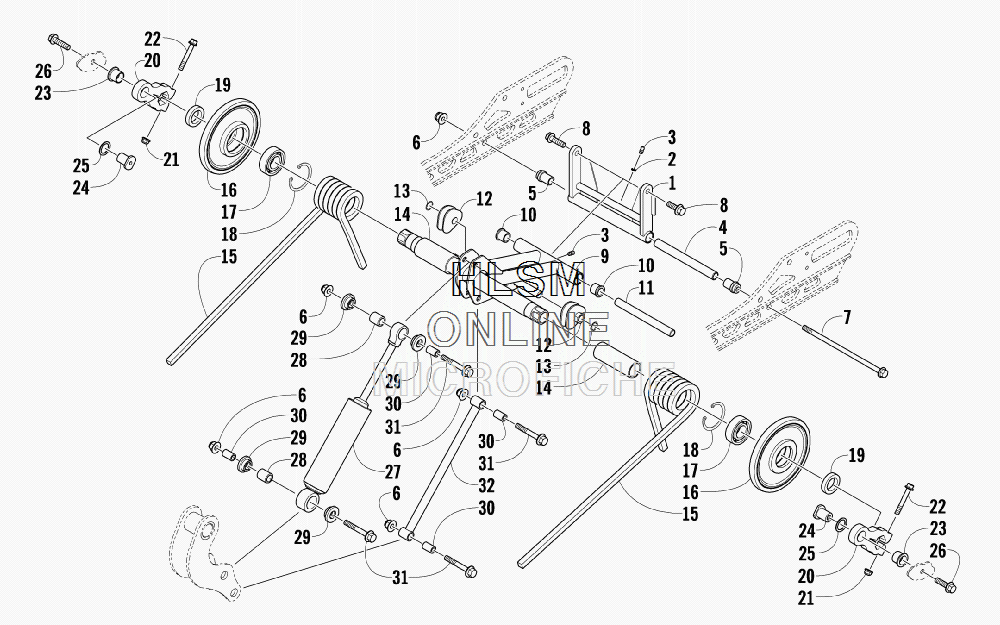

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat F5 LXR (ORANGE) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-624 ARM, REAR - BLACK (INC. 2 AND ONE NO. 3)
    ARM, REAR - BLACK (INC. 2 AND ONE NO. 3)
  • 2
    1623-011 ...WASHER
    ...WASHER
  • 3
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 4
    3604-285 AXLE, INNER
    AXLE, INNER
  • 5
    3604-286 BUSHING, REAR ARM
    BUSHING, REAR ARM
  • 6
    8427-002 NUT, LOCK
    NUT, LOCK
  • 7
    0423-537 SCREW, CAP
    SCREW, CAP
  • 8
    8408-041 SCREW, CAP
    SCREW, CAP
  • 9
    1704-619 ARM, IDLER - BLACK (INC. 10 AND ONE NO. 3)
    ARM, IDLER - BLACK (INC. 10 AND ONE NO. 3)
  • 10
    1604-100 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 11
    3604-276 AXLE
    AXLE
  • 12
    1604-204 BLOCK, SPRING ADJUSTER - RIGHT
    BLOCK, SPRING ADJUSTER - RIGHT
  • 12
    1604-205 BLOCK, SPRING ADJUSTER - LEFT
    BLOCK, SPRING ADJUSTER - LEFT
  • 13
    0623-138 RING, RETAINING
    RING, RETAINING
  • 14
    3604-288 SLEEVE, SPRING
    SLEEVE, SPRING
  • 15
    1704-504 SPRING, SUSPENSION - RIGHT
    SPRING, SUSPENSION - RIGHT
  • 15
    1704-505 SPRING, SUSPENSION - LEFT
    SPRING, SUSPENSION - LEFT
  • 16
    3604-553 WHEEL, IDLER (INC. 17-18)
    WHEEL, IDLER (INC. 17-18)
  • 17
    3604-257 ...BEARING
    ...BEARING
  • 18
    3604-256 ...RING, RETAINING
    ...RING, RETAINING
  • 19
    3604-289 SPACER, PIVOT - IDLER ARM
    SPACER, PIVOT - IDLER ARM
  • 20
    1704-627 PIVOT - IDLER ARM (INC. 21-23)
    PIVOT - IDLER ARM (INC. 21-23)
  • 21
    8427-802 ...NUT, LOCK
    ...NUT, LOCK
  • 22
    8408-860 ...SCREW, CAP
    ...SCREW, CAP
  • 23
    3604-028 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 24
    3604-275 AXLE
    AXLE
  • 25
    1604-187 WASHER
    WASHER
  • 26
    8408-031 SCREW, CAP
    SCREW, CAP
  • 27
    1704-744 SHOCK ABSORBER (INC. 28-29)
    SHOCK ABSORBER (INC. 28-29)
  • 28
    1604-397 ...SLEEVE
    ...SLEEVE
  • 29
    1604-262 ...BUSHING
    ...BUSHING
  • 30
    3604-109 SLEEVE
    SLEEVE
  • 31
    8408-050 SCREW, CAP
    SCREW, CAP
  • 32
    1704-686 LINK, SHOCK - BLACK
    LINK, SHOCK - BLACK
