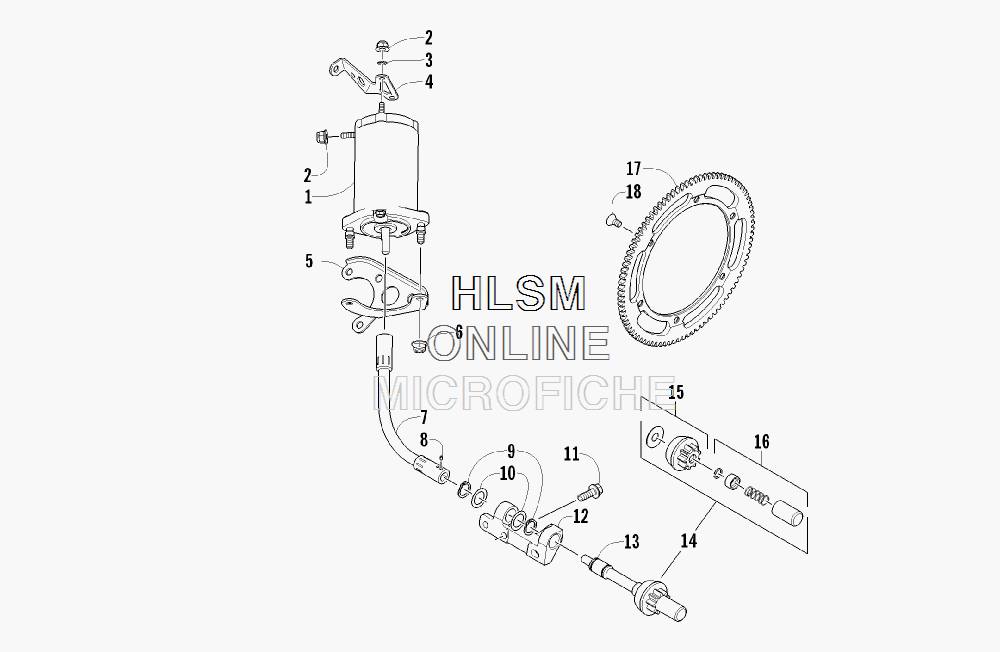

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat F5 LXR (GREEN) - 2011 года выпуска`
-
№АртикулНазвание
-
10745-356 MOTOR, STARTER - ASSEMBLY (INC. 2 AND 6)MOTOR, STARTER - ASSEMBLY (INC. 2 AND 6)
-
28427-602 ...NUT, LOCK...NUT, LOCK
-
38053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
40745-326 BRACKET, MOUNTING - STARTER MOTOR - TOPBRACKET, MOUNTING - STARTER MOTOR - TOP
-
50745-321 BRACKET, MOUNTING - STARTER MOTOR - BOTTOMBRACKET, MOUNTING - STARTER MOTOR - BOTTOM
-
68427-802 NUT, LOCKNUT, LOCK
-
70645-603 SHAFT, FLEX-DRIVESHAFT, FLEX-DRIVE
-
80623-891 SCREW, SETSCREW, SET
-
90645-382 RING, SNAPRING, SNAP
-
100645-429 WASHER, THRUSTWASHER, THRUST
-
118026-131 SCREW, CAPSCREW, CAP
-
120745-165 BRACKET, PINION DRIVEBRACKET, PINION DRIVE
-
130745-170 DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 14-16)DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 14-16)
-
140745-224 ...KIT, PINION DRIVE ASSEMBLY (INC. 15-16)...KIT, PINION DRIVE ASSEMBLY (INC. 15-16)
-
150645-380 ......PINION DRIVE ASSEMBLY......PINION DRIVE ASSEMBLY
-
160645-186 ......PINION STOPPER ASSEMBLY......PINION STOPPER ASSEMBLY
-
170645-367 RING GEARRING GEAR
-
181623-821 SCREW, MACHINESCREW, MACHINE
