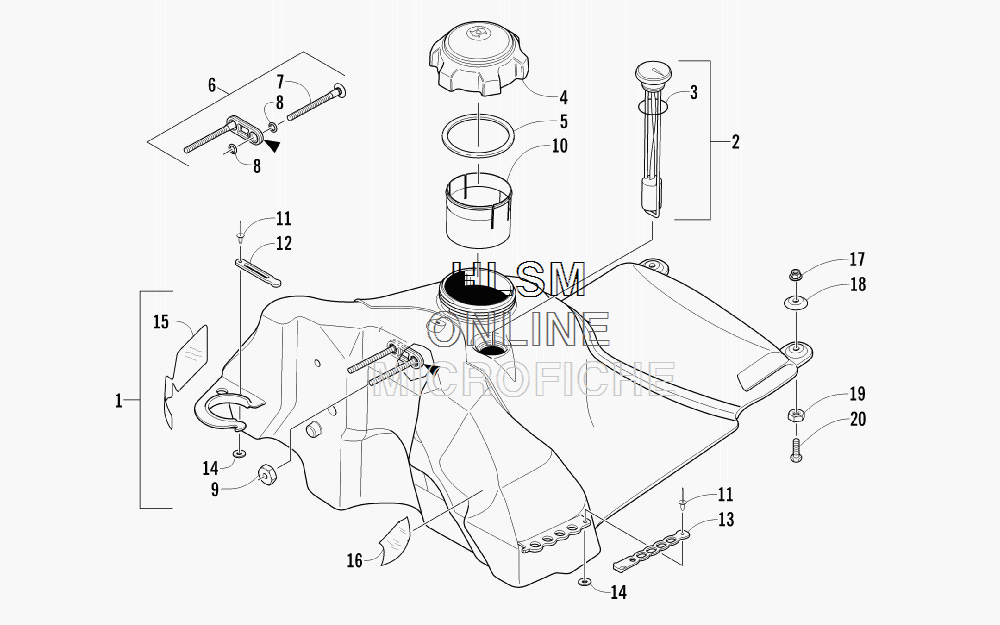

GAS TANK ASSEMBLY для Arctic Cat CFR 1000 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-810 TANK, GAS (INC. 2-16)
    TANK, GAS (INC. 2-16)
  • 2
    1670-824 ...GAUGE, FUEL W/SEAL (INC. 3)
    ...GAUGE, FUEL W/SEAL (INC. 3)
  • 3
    0470-400 ......SEAL, FUEL GAUGE
    ......SEAL, FUEL GAUGE
  • 4
    1670-447 ...CAP, GAS TANK (INC. 5)
    ...CAP, GAS TANK (INC. 5)
  • 5
    1670-511 ......SEAL, GAS TANK CAP
    ......SEAL, GAS TANK CAP
  • 6
    1705-116 ...PLATE, MOUNTING - STEERING POST (INC. 7 AND TWO NO. 8)
    ...PLATE, MOUNTING - STEERING POST (INC. 7 AND TWO NO. 8)
  • 7
    1623-447 ......BOLT, CARRIAGE
    ......BOLT, CARRIAGE
  • 8
    1623-448 ......O-RING
    ......O-RING
  • 9
    1623-483 ...NUT, ALUMINUM
    ...NUT, ALUMINUM
  • 10
    1670-801 ...NECK, GAS TANK EXTENSION
    ...NECK, GAS TANK EXTENSION
  • 11
    8061-630 ...RIVET
    ...RIVET
  • 12
    3606-173 ...STRAP, HOLD-DOWN - COOLANT TANK
    ...STRAP, HOLD-DOWN - COOLANT TANK
  • 13
    4606-160 ...STRAP, HOLD-DOWN - SPARK PLUG
    ...STRAP, HOLD-DOWN - SPARK PLUG
  • 14
    8050-157 ...WASHER
    ...WASHER
  • 15
    5606-107 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 16
    5606-049 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 17
    8047-366 NUT, LOCK
    NUT, LOCK
  • 18
    0123-765 WASHER, CUP
    WASHER, CUP
  • 19
    1623-077 NUT
    NUT
  • 20
    1623-889 SCREW, CAP
    SCREW, CAP
