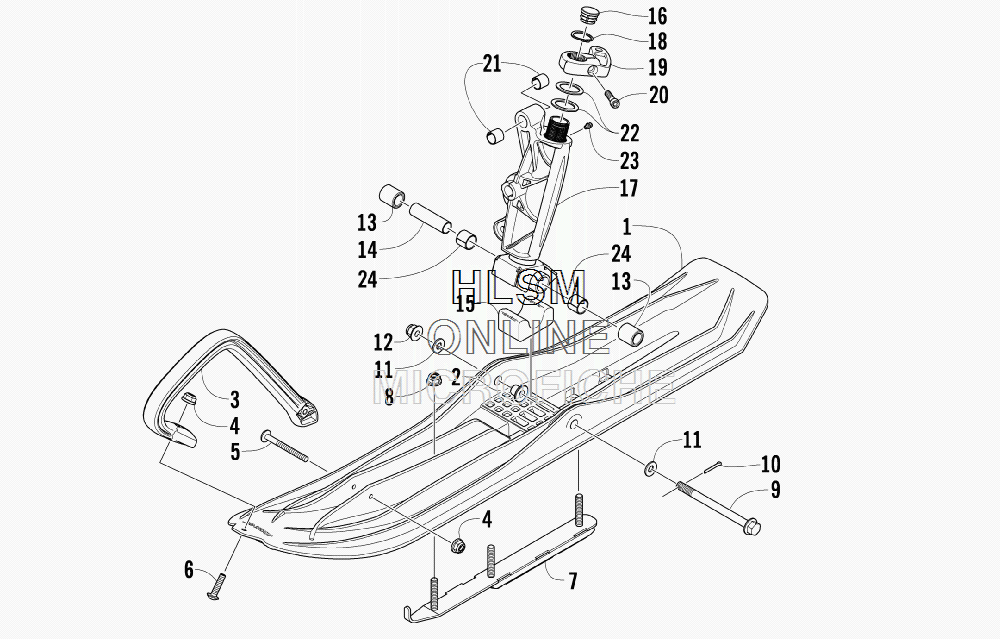

SKI AND SPINDLE ASSEMBLY для Arctic Cat BEARCAT Z1 XT LTD - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2603-729 SKI, PLASTIC - BLACK
    SKI, PLASTIC - BLACK
  • 2
    2603-746 INSERT, SKI - 10 MM
    INSERT, SKI - 10 MM
  • 3
    2603-598 HANDLE, PLASTIC - BLACK
    HANDLE, PLASTIC - BLACK
  • 4
    8047-366 NUT, LOCK
    NUT, LOCK
  • 5
    1623-688 SCREW, MACH-TSTRH 1/4-20 X 2.00 GR5 Z & Y
    SCREW, MACH-TSTRH 1/4-20 X 2.00 GR5 Z & Y
  • 6
    1623-689 SCREW, MACH-TSTRH 1/4-20 X 1.00 GR5 Z & Y
    SCREW, MACH-TSTRH 1/4-20 X 1.00 GR5 Z & Y
  • 7
    2703-598 SKAG, SPLIT-4"-3 BOLT-.312"-PTD BLK - RIGHT
    SKAG, SPLIT-4"-3 BOLT-.312"-PTD BLK - RIGHT
  • 7
    2703-599 SKAG, SPLIT-4"-3 BOLT-3.12"-PTD BLK - LEFT
    SKAG, SPLIT-4"-3 BOLT-3.12"-PTD BLK - LEFT
  • 8
    8047-486 NUT, HEX FLG-NY LOCK 3/8-16 GR F Z & Y
    NUT, HEX FLG-NY LOCK 3/8-16 GR F Z & Y
  • 9
    1623-718 SCREW, CAP
    SCREW, CAP
  • 10
    0123-458 PIN, COTTER
    PIN, COTTER
  • 11
    8050-282 WASHER
    WASHER
  • 12
    0423-744 NUT, LOCK
    NUT, LOCK
  • 13
    2603-731 SPACER
    SPACER
  • 14
    2603-730 AXLE, SPINDLE
    AXLE, SPINDLE
  • 15
    0603-036 DAMPER, SKI
    DAMPER, SKI
  • 16
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 17
    2703-452 SPINDLE, STEERING - RIGHT - PLATINUM (INC. 18-24)
    SPINDLE, STEERING - RIGHT - PLATINUM (INC. 18-24)
  • 17
    2703-453 SPINDLE, STEERING - LEFT - PLATINUM (INC. 18-24)
    SPINDLE, STEERING - LEFT - PLATINUM (INC. 18-24)
  • 18
    0623-796 ...RING, RETAINING
    ...RING, RETAINING
  • 19
    4706-116 ...ARM, SPINDLE - RIGHT - PLATINUM
    ...ARM, SPINDLE - RIGHT - PLATINUM
  • 19
    4706-117 ...ARM, SPINDLE - LEFT - PLATINUM
    ...ARM, SPINDLE - LEFT - PLATINUM
  • 20
    0623-872 ...SCREW, CAP
    ...SCREW, CAP
  • 21
    1603-895 ...BEARING, 10DU10-FRONT SUSPENSION
    ...BEARING, 10DU10-FRONT SUSPENSION
  • 22
    2603-382 ...WASHER, THRUST-SPINDLE WELD'T-.030
    ...WASHER, THRUST-SPINDLE WELD'T-.030
  • 23
    1623-654 ...FITTING, GREASE
    ...FITTING, GREASE
  • 24
    0603-158 ...BEARING, GARLOCK 12DU12
    ...BEARING, GARLOCK 12DU12
