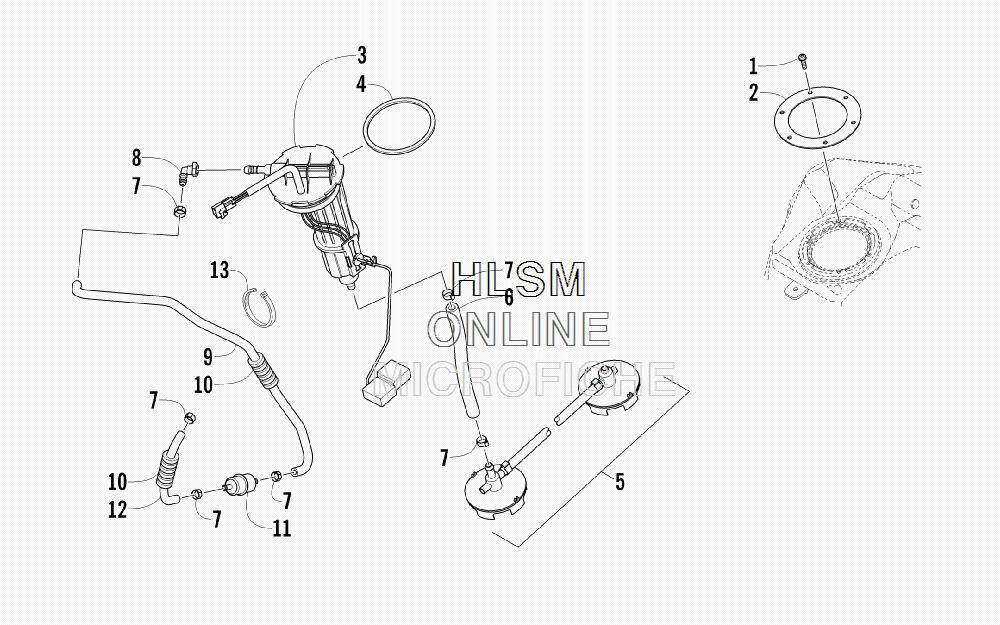

FUEL PUMP ASSEMBLY для Arctic Cat BEARCAT Z1 XT (BLACK/BLUE) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    2670-042 PLATE, RETAINING
    PLATE, RETAINING
  • 3
    2670-051 PUMP, FUEL
    PUMP, FUEL
  • 4
    0470-838 SEAL
    SEAL
  • 5
    2670-054 PICKUP, FUEL - ASSEMBLY (INC. 6 AND ONE NO. 7)
    PICKUP, FUEL - ASSEMBLY (INC. 6 AND ONE NO. 7)
  • 6
    0610-691 ...HOSE, GASLINE
    ...HOSE, GASLINE
  • 7
    0610-563 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 8
    1670-878 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 9
    0610-812 HOSE, GASLINE
    HOSE, GASLINE
  • 10
    0619-776 CONDUIT - 5 FT
    CONDUIT - 5 FT
  • 11
    1670-825 FILTER, FUEL
    FILTER, FUEL
  • 12
    0610-706 HOSE, GASLINE
    HOSE, GASLINE
  • 13
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 13
    0623-751 TIE, CABLE - 11.75 IN.
    TIE, CABLE - 11.75 IN.
