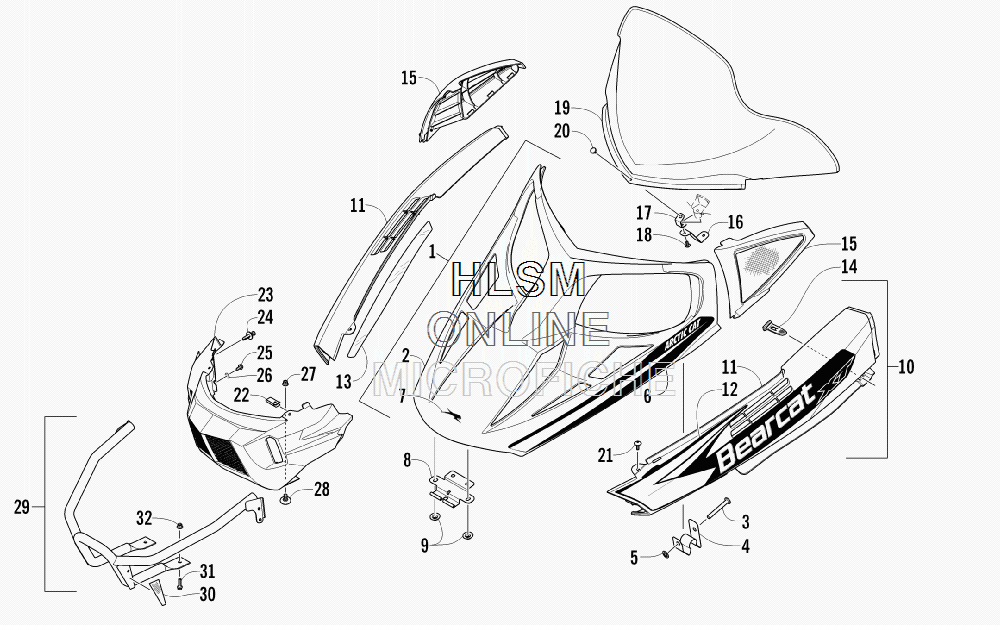

HOOD- WINDSHIELD- AND FRONT BUMBER ASSEMBLY для Arctic Cat BEARCAT 570 XT - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-034 HOOD W/DECALS - BLACK (INC. 2-7)
    HOOD W/DECALS - BLACK (INC. 2-7)
  • 2
    7800-953 ...HOOD W/O DECALS - BLACK (INC. 3-5)
    ...HOOD W/O DECALS - BLACK (INC. 3-5)
  • 3
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 4
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 4
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 5
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 6
    9611-224 ...DECAL, "ARCTIC CAT" - RIGHT
    ...DECAL, "ARCTIC CAT" - RIGHT
  • 6
    9611-225 ...DECAL, "ARCTIC CAT" - LEFT
    ...DECAL, "ARCTIC CAT" - LEFT
  • 7
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 8
    6606-027 BRACKET, HINGE
    BRACKET, HINGE
  • 9
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 10
    3718-030 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 11-13)
    SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 11-13)
  • 10
    3718-031 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 11-12)
    SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 11-12)
  • 11
    5606-356 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK
    ...SPAR, FRONT W/O DECALS - RIGHT - BLACK
  • 11
    5606-357 ...SPAR, FRONT W/O DECALS - LEFT - BLACK
    ...SPAR, FRONT W/O DECALS - LEFT - BLACK
  • 12
    9611-230 ...DECAL, FRONT SPAR - RIGHT
    ...DECAL, FRONT SPAR - RIGHT
  • 12
    9611-231 ...DECAL, FRONT SPAR - LEFT
    ...DECAL, FRONT SPAR - LEFT
  • 13
    4606-934 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 14
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 15
    5606-924 BEZEL, INTAKE - RIGHT - BLACK
    BEZEL, INTAKE - RIGHT - BLACK
  • 15
    5606-925 BEZEL, INTAKE - LEFT - BLACK
    BEZEL, INTAKE - LEFT - BLACK
  • 16
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 17
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 18
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    5606-962 WINDSHIELD
    WINDSHIELD
  • 20
    1623-677 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 21
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    5606-351 FASCIA, FRONT - BLACK
    FASCIA, FRONT - BLACK
  • 24
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 25
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 27
    8427-602 NUT, LOCK
    NUT, LOCK
  • 28
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 29
    4706-961 BUMPER, FRONT (INC. 30)
    BUMPER, FRONT (INC. 30)
  • 30
    9611-386 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 30
    9611-387 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 31
    8408-025 SCREW, CAP
    SCREW, CAP
  • 32
    8427-002 NUT, LOCK
    NUT, LOCK
