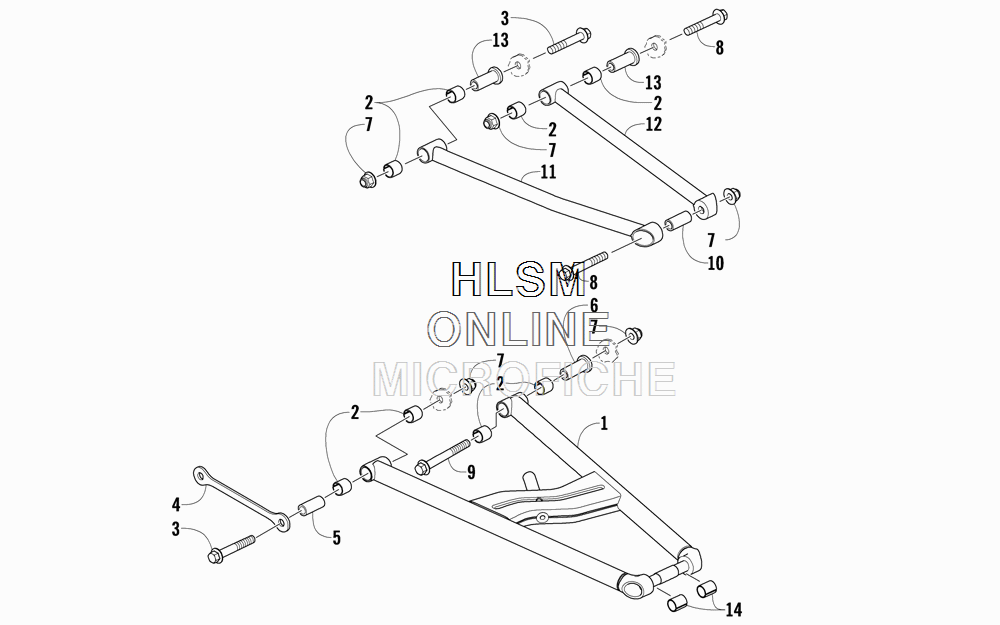

A-ARM ASSEMBLY для Arctic Cat BEARCAT 570 (INTERNATONAL) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2703-467 A-ARM, LOWER - PLATINUM (INC. EIGHT NO. 2)
    A-ARM, LOWER - PLATINUM (INC. EIGHT NO. 2)
  • 2
    1603-895 ...BEARING
    ...BEARING
  • 3
    8408-070 SCREW, CAP
    SCREW, CAP
  • 4
    4606-402 BRACE, LOWER A-ARM
    BRACE, LOWER A-ARM
  • 5
    2603-544 AXLE, INNER - LOWER A-ARM - FRONT
    AXLE, INNER - LOWER A-ARM - FRONT
  • 6
    2603-543 AXLE, LOWER A-ARM - REAR
    AXLE, LOWER A-ARM - REAR
  • 7
    8427-002 NUT, LOCK
    NUT, LOCK
  • 8
    8408-065 SCREW, CAP-HFH M10X1.25X65 CL8.8 Z & Y
    SCREW, CAP-HFH M10X1.25X65 CL8.8 Z & Y
  • 9
    8408-090 SCREW, CAP-HFH M10X1.25X90 CL8.8 Z & Y
    SCREW, CAP-HFH M10X1.25X90 CL8.8 Z & Y
  • 10
    2603-643 AXLE, SPINDLE
    AXLE, SPINDLE
  • 11
    2703-075 A-ARM, UPPER - FRONT - PLATINUM (INC. FOUR NO. 2)
    A-ARM, UPPER - FRONT - PLATINUM (INC. FOUR NO. 2)
  • 12
    2703-076 A-ARM, UPPER - REAR - PLATINUM (INC. FOUR NO. 2)
    A-ARM, UPPER - REAR - PLATINUM (INC. FOUR NO. 2)
  • 13
    2603-634 AXLE, INNER - UPPER A-ARM
    AXLE, INNER - UPPER A-ARM
  • 14
    2603-577 BEARING, SPLIT
    BEARING, SPLIT
