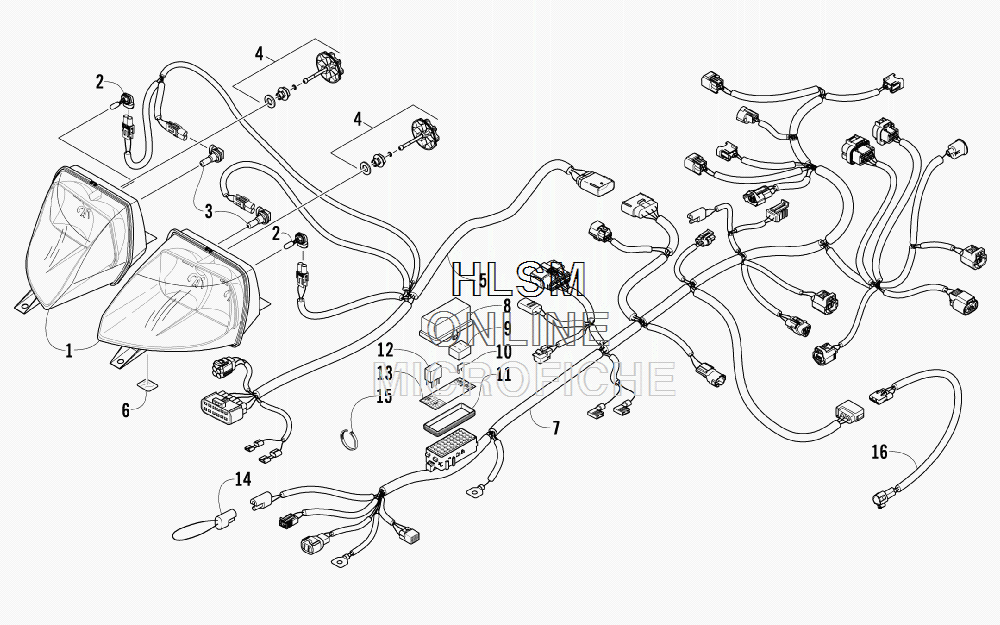

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat Z1 - 2010 года выпуска`
-
№АртикулНазвание
-
10609-870 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
-
10609-871 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
-
20609-783 ...BULB, HEADLIGHT - LOW BEAM...BULB, HEADLIGHT - LOW BEAM
-
30609-782 ...BULB, HEADLIGHT - HIGH BEAM...BULB, HEADLIGHT - HIGH BEAM
-
40609-779 ...ADJUSTER, HEADLIGHT - ASSEMBLY...ADJUSTER, HEADLIGHT - ASSEMBLY
-
51686-547 HARNESS, CONSOLEHARNESS, CONSOLE
-
62606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
71686-515 HARNESS, MAIN (INC. 8-14)HARNESS, MAIN (INC. 8-14)
-
80430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
90430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
100430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
100630-232 ...FUSE - 20 AMP...FUSE - 20 AMP
-
100630-233 ...FUSE - 25 AMP...FUSE - 25 AMP
-
100430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
110430-086 ...SEAL...SEAL
-
120430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
120430-033 ...RELAY (5-PIN) - 20 AMP...RELAY (5-PIN) - 20 AMP
-
138611-663 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
140486-164 ...TETHER, ACCESSORY CONNECTOR - OPTIONAL...TETHER, ACCESSORY CONNECTOR - OPTIONAL
-
150123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
161686-556 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
