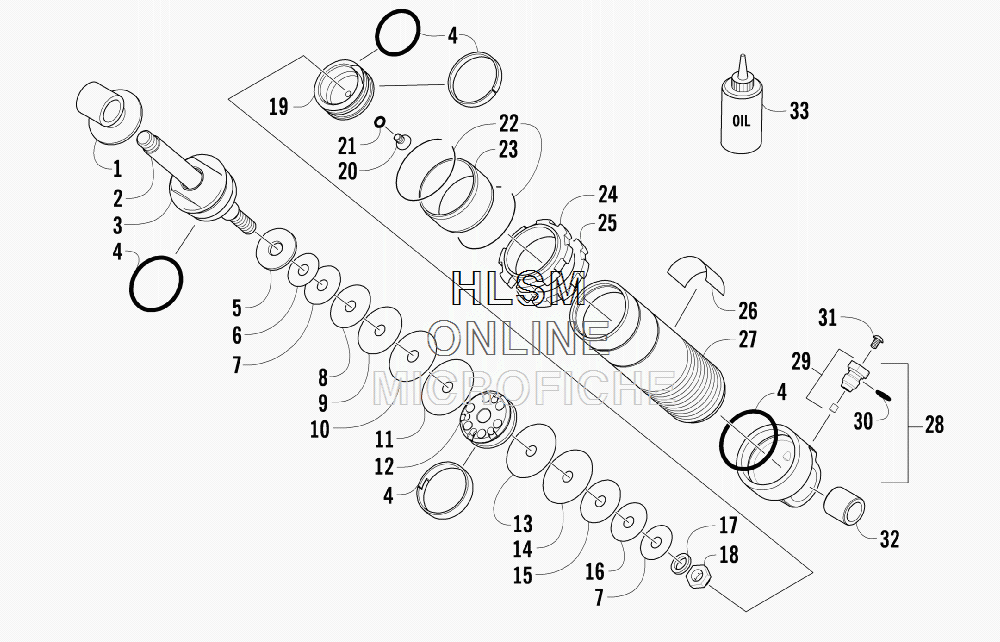

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Z1 TURBO EXT METALLIC CAT GREEN - 2010 года выпуска`
-
№АртикулНазвание
-
-1704-848 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-883 ROD, SHOCKROD, SHOCK
-
32604-812 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
42604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
50603-540 WASHER, TOP OUTWASHER, TOP OUT
-
60603-332 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
70603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
80603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
90603-340 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
100603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
110603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
122603-309 PISTON, 0.093 IN. - ORIFICEPISTON, 0.093 IN. - ORIFICE
-
130603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
140603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
150603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
160603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
170603-389 WASHER, BACKUPWASHER, BACKUP
-
180603-301 NUTNUT
-
192604-816 PISTON, FLOATINGPISTON, FLOATING
-
201604-316 SCREW, RELIEF (INC. 21)SCREW, RELIEF (INC. 21)
-
211604-425 ...O-RING...O-RING
-
222603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
232603-246 SLEEVE, WEARSLEEVE, WEAR
-
242604-840 NUT, ADJUSTERNUT, ADJUSTER
-
252604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
262603-475 DECAL, SHOCKDECAL, SHOCK
-
273604-178 BODY, SHOCKBODY, SHOCK
-
282604-817 END CAP, SHOCK - ASSEMBLY (INC. 29-30)END CAP, SHOCK - ASSEMBLY (INC. 29-30)
-
290703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 30)...VALVE, PRESSURE - ASSEMBLY (INC. 30)
-
301604-318 ......O-RING......O-RING
-
310624-097 SCREW, VALVESCREW, VALVE
-
322604-415 SLEEVESLEEVE
-
335639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
