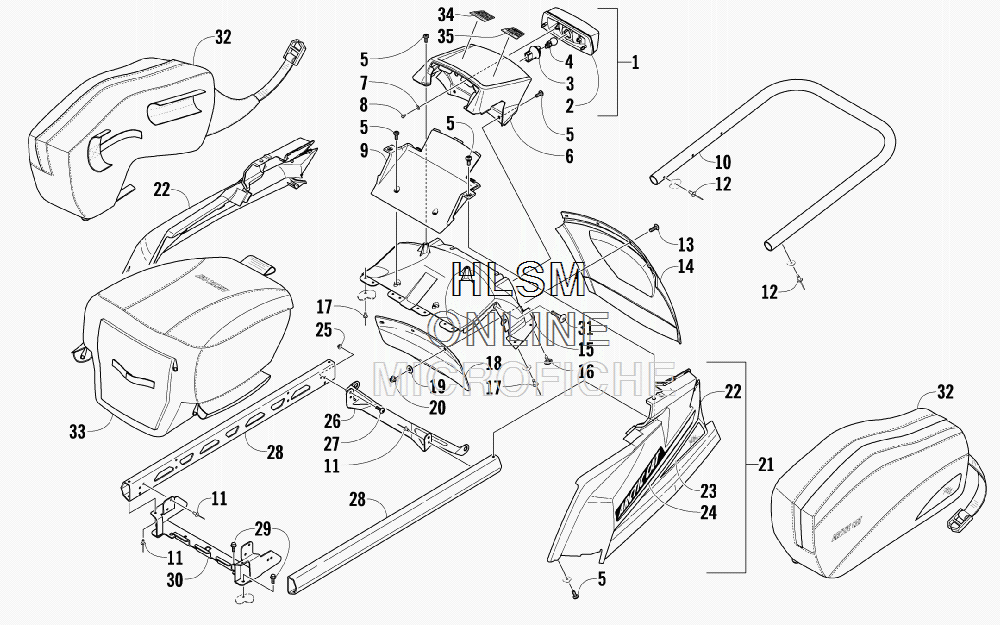

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat TZ1 TURBO LXR LE METALLIC CAT GREEN - 2010 года выпуска`
-
№АртикулНазвание
-
10509-022 TAILLIGHT - ASSEMBLY (INC. 2-4)TAILLIGHT - ASSEMBLY (INC. 2-4)
-
20509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
30409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
40409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
51623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
64706-640 HOOD, TAILLIGHTHOOD, TAILLIGHT
-
78050-127 WASHERWASHER
-
80623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
94706-641 PANEL, ACCESS - TAILLIGHTPANEL, ACCESS - TAILLIGHT
-
101707-260 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
118060-686 RIVETRIVET
-
121623-241 RIVETRIVET
-
131623-782 SCREW, MACHINESCREW, MACHINE
-
145606-254 SNOWFLAPSNOWFLAP
-
155606-056 CLOSE-OFF, TUNNELCLOSE-OFF, TUNNEL
-
160623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
178061-506 RIVETRIVET
-
183606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
190623-184 WASHERWASHER
-
208427-602 NUT, LOCKNUT, LOCK
-
212718-826 FENDER, REAR - RIGHT W/DECAL (INC. 22-24)FENDER, REAR - RIGHT W/DECAL (INC. 22-24)
-
212718-827 FENDER, REAR - LEFT W/DECAL (INC. 22-24)FENDER, REAR - LEFT W/DECAL (INC. 22-24)
-
222718-822 ...FENDER, REAR - RIGHT (INC. 23)...FENDER, REAR - RIGHT (INC. 23)
-
222718-823 ...FENDER, REAR - LEFT (INC. 23)...FENDER, REAR - LEFT (INC. 23)
-
238611-304 ......DECAL, REFLECTOR - RIGHT - RED......DECAL, REFLECTOR - RIGHT - RED
-
238611-305 ......DECAL, REFLECTOR - LEFT - RED......DECAL, REFLECTOR - LEFT - RED
-
248611-822 ...DECAL, REAR FENDER - RIGHT...DECAL, REAR FENDER - RIGHT
-
248611-823 ...DECAL, REAR FENDER - LEFT...DECAL, REAR FENDER - LEFT
-
258427-502 NUT, LOCKNUT, LOCK
-
263706-989 BRACKET, MOUNTING - RACK RAIL - REARBRACKET, MOUNTING - RACK RAIL - REAR
-
278470-516 SCREW, MACHINESCREW, MACHINE
-
284706-482 RAIL, RACKRAIL, RACK
-
298408-620 SCREW, CAPSCREW, CAP
-
305706-045 BRACKET, MOUNTING - RACK RAIL - FRONTBRACKET, MOUNTING - RACK RAIL - FRONT
-
311623-700 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
325606-172 SADDLEBAG, SIDE - RIGHTSADDLEBAG, SIDE - RIGHT
-
325606-173 SADDLEBAG, SIDE - LEFTSADDLEBAG, SIDE - LEFT
-
335606-171 SADDLEBAG, REARSADDLEBAG, REAR
-
347611-432 DECAL, WARNING - TOWING - ENGLISHDECAL, WARNING - TOWING - ENGLISH
-
357611-433 DECAL, WARNING - TOWING - FRENCHDECAL, WARNING - TOWING - FRENCH
-
-4706-886 KIT, TOOL - NOT ILLUSTRATEDKIT, TOOL - NOT ILLUSTRATED
