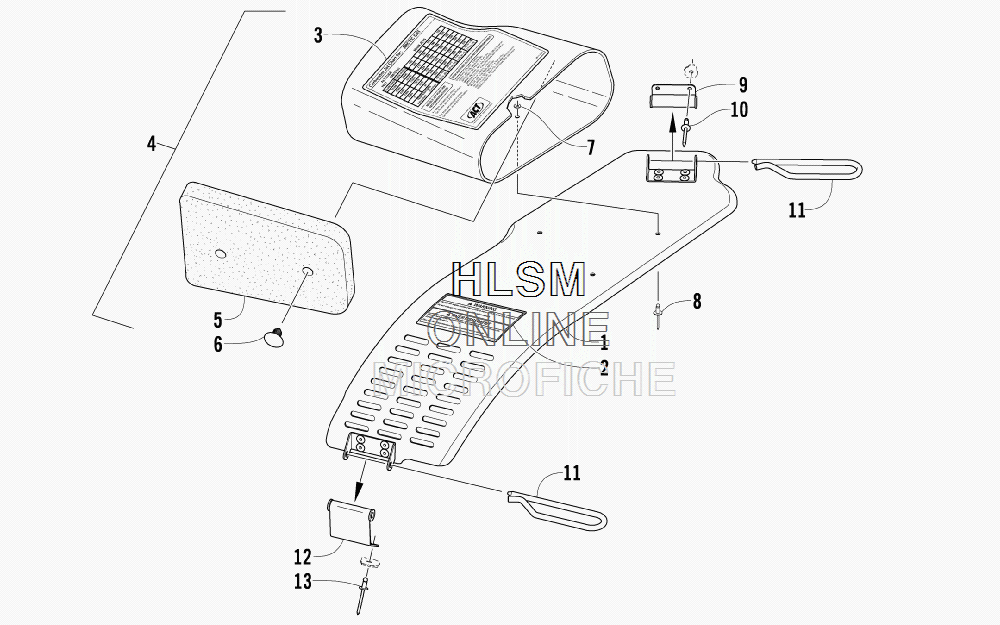

BELT GUARD ASSEMBLY для Arctic Cat T570 - 2010 года выпуска`
-
№АртикулНазвание
-
11707-153 GUARD, BELTGUARD, BELT
-
21611-565 DECAL, WARNING - BELT GUARDDECAL, WARNING - BELT GUARD
-
38611-996 DECAL, CLUTCHING CHARTDECAL, CLUTCHING CHART
-
40713-010 DUCT, AIR-OUT (INC. 5-6)DUCT, AIR-OUT (INC. 5-6)
-
50617-561 ...FOAM, AIR-OUT...FOAM, AIR-OUT
-
61623-809 ...CLIP, RETAINING...CLIP, RETAINING
-
70123-802 WASHERWASHER
-
88060-688 RIVETRIVET
-
91707-169 HINGE, BELT GUARD - REARHINGE, BELT GUARD - REAR
-
108060-504 RIVETRIVET
-
111623-720 PIN, BELT GUARDPIN, BELT GUARD
-
121707-168 HINGE, BELT GUARD - FRONTHINGE, BELT GUARD - FRONT
-
138061-508 RIVETRIVET
