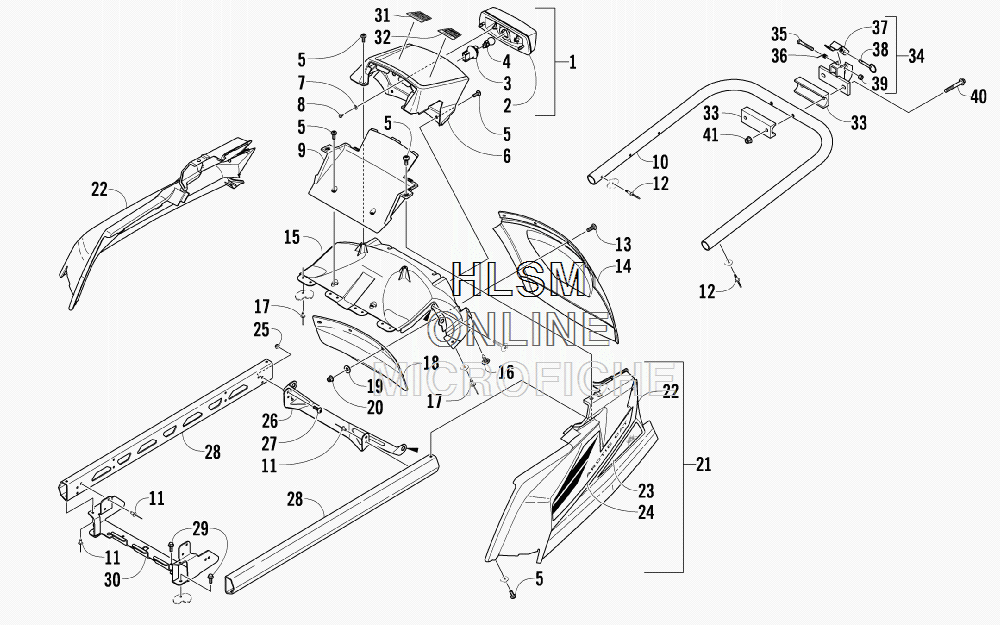

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat T570 INTERNATIONAL - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0509-022 TAILLIGHT - ASSEMBLY (INC. 2-4)
    TAILLIGHT - ASSEMBLY (INC. 2-4)
  • 2
    0509-025 ...HOUSING, TAILLIGHT
    ...HOUSING, TAILLIGHT
  • 3
    0409-057 ...SOCKET, TAILLIGHT
    ...SOCKET, TAILLIGHT
  • 4
    0409-056 ...BULB, TAILLIGHT
    ...BULB, TAILLIGHT
  • 5
    1623-661 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    5606-063 HOOD, TAILLIGHT
    HOOD, TAILLIGHT
  • 7
    8050-127 WASHER
    WASHER
  • 8
    0623-257 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    5606-065 PANEL, ACCESS - TAILLIGHT
    PANEL, ACCESS - TAILLIGHT
  • 10
    1707-355 BUMPER, REAR - NAVY BLUE
    BUMPER, REAR - NAVY BLUE
  • 11
    8060-686 RIVET
    RIVET
  • 12
    1623-241 RIVET
    RIVET
  • 13
    1623-782 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    5606-254 SNOWFLAP
    SNOWFLAP
  • 15
    5606-056 CLOSE-OFF, TUNNEL
    CLOSE-OFF, TUNNEL
  • 16
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    8061-506 RIVET
    RIVET
  • 18
    3606-776 SUPPORT, SNOWFLAP
    SUPPORT, SNOWFLAP
  • 19
    0623-184 WASHER
    WASHER
  • 20
    8427-602 NUT, LOCK
    NUT, LOCK
  • 21
    2718-820 FENDER, REAR - RIGHT W/DECAL (INC. 22-24)
    FENDER, REAR - RIGHT W/DECAL (INC. 22-24)
  • 21
    2718-821 FENDER, REAR - LEFT W/DECAL (INC. 22-24)
    FENDER, REAR - LEFT W/DECAL (INC. 22-24)
  • 22
    2718-488 ...FENDER, REAR - RIGHT (INC. 23)
    ...FENDER, REAR - RIGHT (INC. 23)
  • 22
    2718-489 ...FENDER, REAR - LEFT (INC. 23)
    ...FENDER, REAR - LEFT (INC. 23)
  • 23
    8611-304 ......REFLECTOR - RIGHT
    ......REFLECTOR - RIGHT
  • 23
    8611-305 ......REFLECTOR - LEFT
    ......REFLECTOR - LEFT
  • 24
    8611-790 ...DECAL, REAR FENDER - RIGHT
    ...DECAL, REAR FENDER - RIGHT
  • 24
    8611-791 ...DECAL, REAR FENDER - LEFT
    ...DECAL, REAR FENDER - LEFT
  • 25
    8427-502 NUT, LOCK
    NUT, LOCK
  • 26
    3706-989 BRACKET, MOUNTING - RACK RAIL - REAR
    BRACKET, MOUNTING - RACK RAIL - REAR
  • 27
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    4706-482 RAIL, RACK
    RAIL, RACK
  • 29
    8408-620 SCREW, CAP
    SCREW, CAP
  • 30
    4706-017 BRACKET, MOUNTING - RACK RAIL - FRONT
    BRACKET, MOUNTING - RACK RAIL - FRONT
  • 31
    7611-432 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 32
    7611-433 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 33
    3706-896 BRACKET, MOUNTING - HITCH
    BRACKET, MOUNTING - HITCH
  • 34
    0706-727 HITCH, PINTLE - ASSEMBLY (INC. 35-39)
    HITCH, PINTLE - ASSEMBLY (INC. 35-39)
  • 35
    8002-046 ...SCREW, CAP
    ...SCREW, CAP
  • 36
    0623-335 ...SPRING, HITCH
    ...SPRING, HITCH
  • 37
    2706-229 ...LATCH, HITCH
    ...LATCH, HITCH
  • 38
    0623-213 ...PIN, HITCH
    ...PIN, HITCH
  • 39
    8040-366 ...NUT, LOCK
    ...NUT, LOCK
  • 40
    8408-860 SCREW, CAP
    SCREW, CAP
  • 41
    8427-802 NUT, LOCK
    NUT, LOCK
  • -
    4706-072 KIT, TOOL - NOT ILLUSTRATED
    KIT, TOOL - NOT ILLUSTRATED
