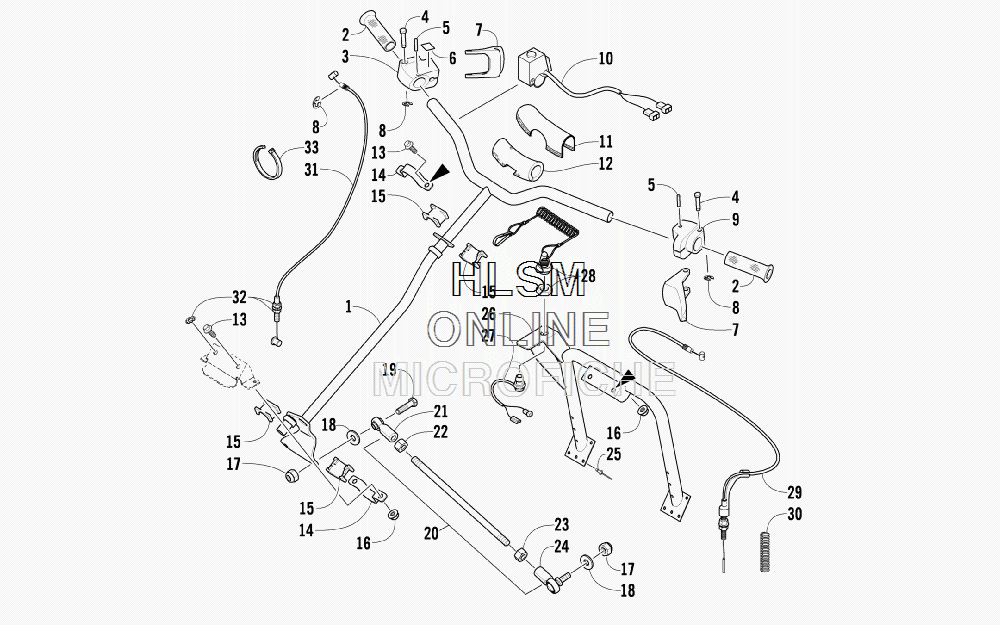

STEERING POST AND TIE ROD ASSEMBLY для Arctic Cat SNO PRO 120 - 2010 года выпуска`
-
№АртикулНазвание
-
11705-313 POST, STEERING - BLACKPOST, STEERING - BLACK
-
21606-765 GRIP, HANDLEGRIP, HANDLE
-
30302-165 CONTROL, THROTTLECONTROL, THROTTLE
-
41623-828 PINPIN
-
51623-882 PIN, SPRINGPIN, SPRING
-
60611-022 DECAL, ENGINE STOP SWITCHDECAL, ENGINE STOP SWITCH
-
70109-609 LEVER, THROTTLE/BRAKELEVER, THROTTLE/BRAKE
-
80123-231 RING, RETAININGRING, RETAINING
-
90302-147 HOUSING, BRAKEHOUSING, BRAKE
-
100609-007 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
110605-887 COVER, HANDLEBAR PADCOVER, HANDLEBAR PAD
-
120605-501 PAD, HANDLEBARPAD, HANDLEBAR
-
131623-861 SCREW, CAPSCREW, CAP
-
140705-896 RETAINER, BEARINGRETAINER, BEARING
-
150605-444 BEARING, STEERING POSTBEARING, STEERING POST
-
161623-868 NUT, LOCKNUT, LOCK
-
171623-423 NUT, LOCKNUT, LOCK
-
181623-874 WASHERWASHER
-
198004-135 SCREW, CAPSCREW, CAP
-
201703-853 TIE ROD - ASSEMBLY (INC. 21-24)TIE ROD - ASSEMBLY (INC. 21-24)
-
210605-777 ...ROD END - LEFT-HAND THREAD...ROD END - LEFT-HAND THREAD
-
220623-260 ...NUT, HEX - LEFT-HAND THREAD...NUT, HEX - LEFT-HAND THREAD
-
230123-144 ...NUT, HEX - RIGHT-HAND THREAD...NUT, HEX - RIGHT-HAND THREAD
-
240605-776 ...ROD END - RIGHT-HAND THREAD...ROD END - RIGHT-HAND THREAD
-
258060-504 RIVETRIVET
-
261707-444 SUPPORT, STEERING POST - BLACKSUPPORT, STEERING POST - BLACK
-
270630-266 SWITCH, TETHER - ASSEMBLY (INC. 28)SWITCH, TETHER - ASSEMBLY (INC. 28)
-
280630-139 ...CORD, TETHER SWITCH...CORD, TETHER SWITCH
-
290687-229 CABLE, BRAKECABLE, BRAKE
-
301602-100 SPRING, RETURN - BRAKESPRING, RETURN - BRAKE
-
310687-221 CABLE, THROTTLE (INC. TWO NO. 32)CABLE, THROTTLE (INC. TWO NO. 32)
-
328053-212 ...WASHER, EXTERNAL TOOTH LOCK...WASHER, EXTERNAL TOOTH LOCK
-
330123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
