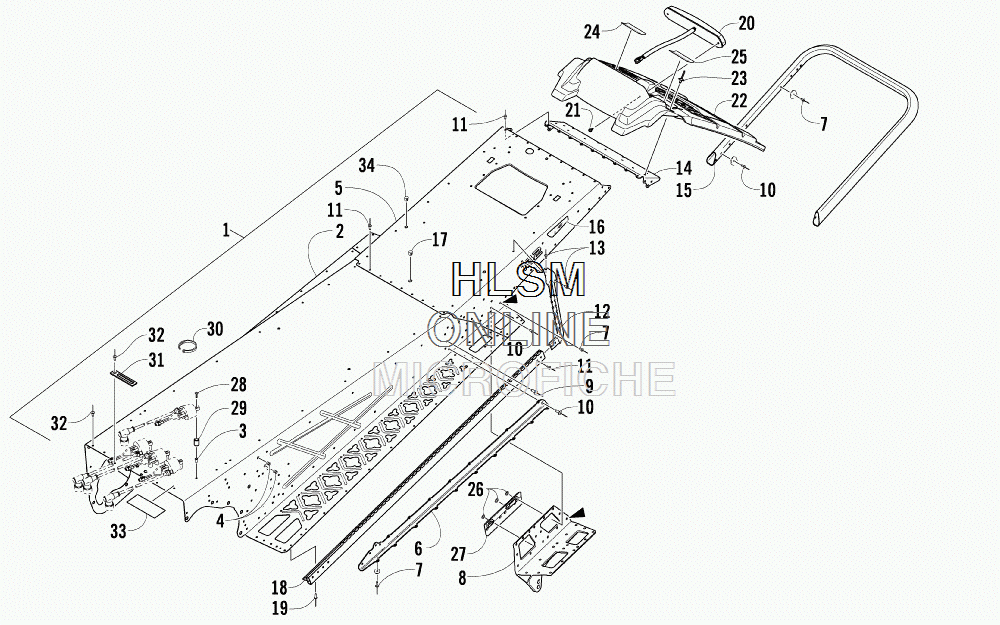

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat M8 SNO PRO LE 153 - BLACK [S2010M8HLEUSB] - 2010 года выпуска`
-
№АртикулНазвание
-
-1707-430 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12718-931 TUNNEL ASSEMBLY - BLACK (INC. 2-11)TUNNEL ASSEMBLY - BLACK (INC. 2-11)
-
22718-932 ...TUNNEL, FRONT - BLACK (INC. 3-4)...TUNNEL, FRONT - BLACK (INC. 3-4)
-
31623-562 ......INSERT......INSERT
-
41623-657 ......INSERT......INSERT
-
54706-894 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
64706-170 ...BRACKET, TUNNEL SUPPORT - RIGHT - BLACK...BRACKET, TUNNEL SUPPORT - RIGHT - BLACK
-
64706-171 ...BRACKET, TUNNEL SUPPORT - LEFT - BLACK...BRACKET, TUNNEL SUPPORT - LEFT - BLACK
-
78060-706 ...RIVET - BLACK...RIVET - BLACK
-
84706-190 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR - BLACK
-
84706-191 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK...BRACKET, SUSPENSION MOUNTING - LEFT - REAR - BLACK
-
98060-702 ...RIVET - BLACK...RIVET - BLACK
-
108060-708 ...RIVET - BLACK...RIVET - BLACK
-
118060-504 ...RIVET - BLACK...RIVET - BLACK
-
124706-796 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
124706-797 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
138060-508 RIVET - BLACKRIVET - BLACK
-
144706-689 END CAP, TUNNEL - BLACKEND CAP, TUNNEL - BLACK
-
154706-893 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
168611-520 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
168611-521 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
170623-562 PLUG, HOLEPLUG, HOLE
-
184706-872 ROLL, TUNNEL - RIGHT - BLACKROLL, TUNNEL - RIGHT - BLACK
-
184706-873 ROLL, TUNNEL - LEFT - BLACKROLL, TUNNEL - LEFT - BLACK
-
198060-502 RIVET - BLACKRIVET - BLACK
-
200609-863 TAILLIGHT, LEDTAILLIGHT, LED
-
210623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
225606-525 SNOWFLAPSNOWFLAP
-
238061-706 RIVETRIVET
-
245611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
255611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
260123-802 WASHERWASHER
-
274606-790 GUIDE, TRACK - TUNNEL - RIGHTGUIDE, TRACK - TUNNEL - RIGHT
-
274606-791 GUIDE, TRACK - TUNNEL - LEFTGUIDE, TRACK - TUNNEL - LEFT
-
281623-671 SCREW, MACHINESCREW, MACHINE
-
291623-045 SPACERSPACER
-
300123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
313002-964 CLAMP, WIRECLAMP, WIRE
-
328060-506 RIVET - BLACKRIVET - BLACK
-
333606-814 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
340623-355 PLUG, HOLEPLUG, HOLE
