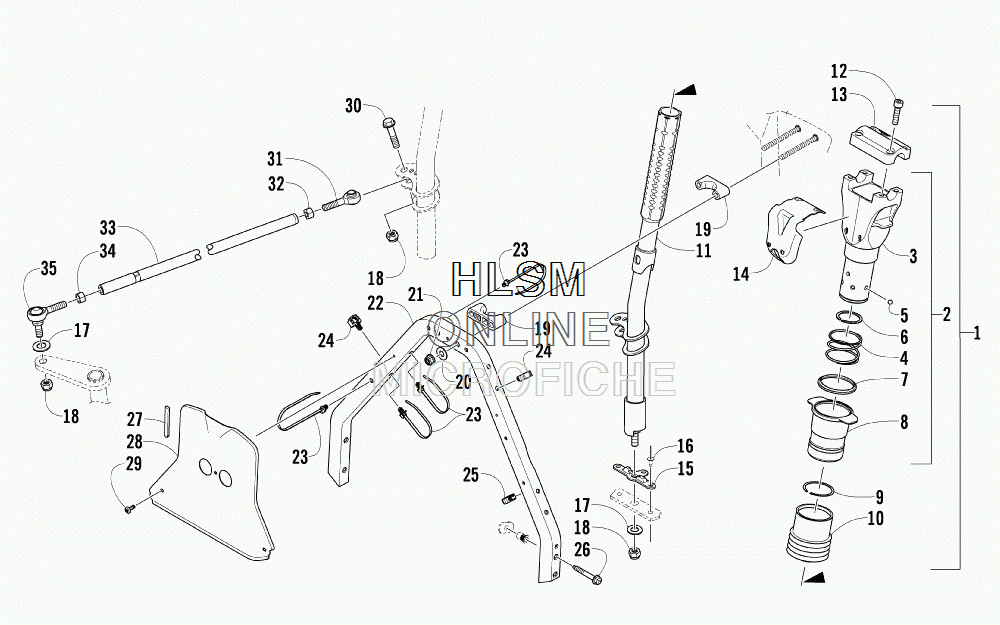

STEERING POST ASSEMBLY для Arctic Cat M8 SNO PRO LE 153 - BLACK [S2010M8HLEOSB] (INTERNATIONAL) - 2010 года выпуска`
-
№АртикулНазвание
-
11705-356 POST, STEERING - ASSEMBLY (INC. 2-11)POST, STEERING - ASSEMBLY (INC. 2-11)
-
20705-985 ...BLOCK, ADJUSTING - ASSEMBLY (INC. 3-8)...BLOCK, ADJUSTING - ASSEMBLY (INC. 3-8)
-
30605-713 ......BLOCK, ADJUSTING......BLOCK, ADJUSTING
-
40605-715 ......SPRING, COMPRESSION......SPRING, COMPRESSION
-
50605-714 ......BEARING, BALL......BEARING, BALL
-
61623-506 ......RING, RETAINING......RING, RETAINING
-
70605-852 ......SEAL, WIPER......SEAL, WIPER
-
81705-283 ......COLLAR, SLIDE......COLLAR, SLIDE
-
91623-507 ...RING, RETAINING...RING, RETAINING
-
100605-992 ...SLEEVE, PROTECTIVE...SLEEVE, PROTECTIVE
-
111705-355 ...POST, STEERING...POST, STEERING
-
121623-753 SCREW, CAPSCREW, CAP
-
131705-284 CLAMP, HANDLEBARCLAMP, HANDLEBAR
-
140605-867 COVER, ADJUSTING BLOCKCOVER, ADJUSTING BLOCK
-
150605-943 STOP, STEERING POSTSTOP, STEERING POST
-
168060-888 RIVETRIVET
-
170623-044 WASHERWASHER
-
180623-025 NUT, LOCKNUT, LOCK
-
190605-576 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
208050-252 WASHERWASHER
-
218047-426 NUT, LOCKNUT, LOCK
-
221705-260 SUPPORT, STEERINGSUPPORT, STEERING
-
230623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
241623-406 CLIP, RETAININGCLIP, RETAINING
-
251623-717 CLIP, RETAININGCLIP, RETAINING
-
261623-482 SCREW, CAPSCREW, CAP
-
270706-371 TRIMTRIM
-
285606-501 PANEL, CLOSE-OUTPANEL, CLOSE-OUT
-
291623-353 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
308004-225 SCREW, CAPSCREW, CAP
-
311605-010 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
320623-294 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
330605-994 TUBE, TIE RODTUBE, TIE ROD
-
340123-917 NUT, HEX - LEFT-HAND THREADNUT, HEX - LEFT-HAND THREAD
-
351605-011 BALL JOINT, TIE ROD - LEFT-HAND THREADBALL JOINT, TIE ROD - LEFT-HAND THREAD
