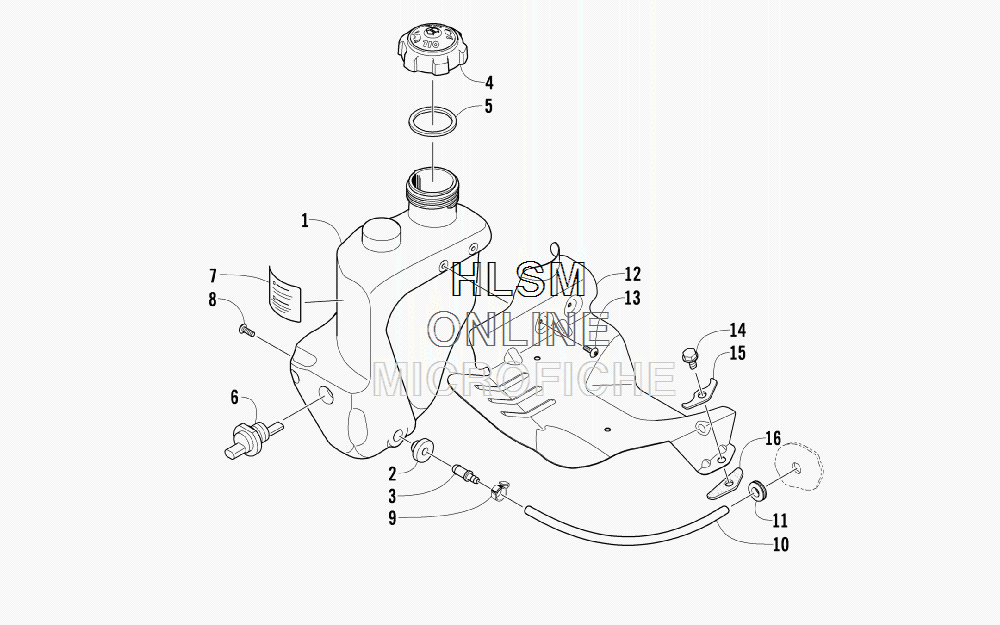

OIL TANK ASSEMBLY для Arctic Cat M1000 SNO PRO 162 INTERNATIONAL - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-081 TANK, OIL
    TANK, OIL
  • 2
    1670-325 GROMMET
    GROMMET
  • 3
    1670-481 FITTING
    FITTING
  • 4
    1670-365 CAP (INC. 5)
    CAP (INC. 5)
  • 5
    0109-733 ...SEAL, CAP
    ...SEAL, CAP
  • 6
    0609-773 SENSOR, LOW OIL
    SENSOR, LOW OIL
  • 7
    4611-532 DECAL, OIL TANK
    DECAL, OIL TANK
  • 8
    1623-806 SCREW, MACH-TSTRH 1/4-20X0.375 G2 W/203
    SCREW, MACH-TSTRH 1/4-20X0.375 G2 W/203
  • 9
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    0610-692 HOSE, OIL - 25 FT
    HOSE, OIL - 25 FT
  • 10
    0610-693 HOSE, OIL - 100 FT
    HOSE, OIL - 100 FT
  • 11
    1623-256 GROMMET
    GROMMET
  • 12
    5606-372 SHIELD, HEAT
    SHIELD, HEAT
  • 13
    1623-705 SCREW, MACH-TSTRH 10-24X.3125 G2 W/204
    SCREW, MACH-TSTRH 10-24X.3125 G2 W/204
  • 14
    0623-765 SCREW, SELF TAP-HWH 5/16-18X.625 TT Z & Y
    SCREW, SELF TAP-HWH 5/16-18X.625 TT Z & Y
  • 15
    5606-657 SPACER
    SPACER
  • 16
    0617-598 PAD, HEAT SHIELD
    PAD, HEAT SHIELD
