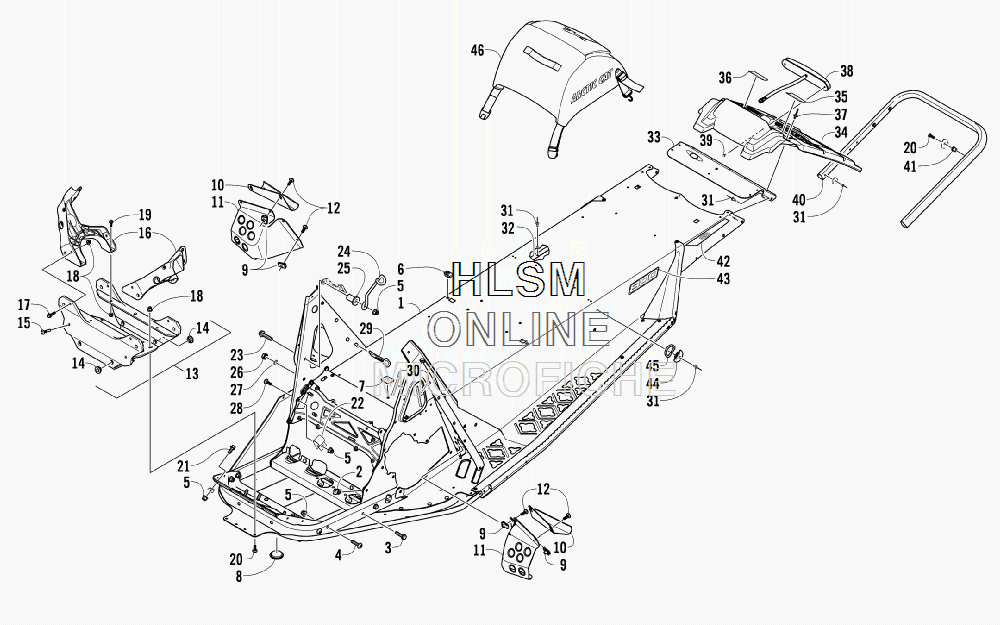

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat F8 LXR - 2010 года выпуска`
-
№АртикулНазвание
-
11707-272 CHASSIS - ASSEMBLY (INC. 2-4 AND FOUR NO. 5)CHASSIS - ASSEMBLY (INC. 2-4 AND FOUR NO. 5)
-
21623-640 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-428 ...SCREW, CAP...SCREW, CAP
-
48476-835 ...SCREW, MACHINE...SCREW, MACHINE
-
58427-802 ...NUT, LOCK...NUT, LOCK
-
61623-637 CLIP, U-NUTCLIP, U-NUT
-
72606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
81623-625 PLUGPLUG
-
90423-577 CLIP, U-NUTCLIP, U-NUT
-
103606-920 BRACKET, TOE HOOK - RIGHTBRACKET, TOE HOOK - RIGHT
-
103606-921 BRACKET, TOE HOOK - LEFTBRACKET, TOE HOOK - LEFT
-
113606-710 SHIELD, TOE - RIGHTSHIELD, TOE - RIGHT
-
113606-711 SHIELD, TOE - LEFTSHIELD, TOE - LEFT
-
128471-616 SCREW, MACHINESCREW, MACHINE
-
131707-340 BRACKET, MOUNTING - FRONT SUSPENSION (INC. 14-15)BRACKET, MOUNTING - FRONT SUSPENSION (INC. 14-15)
-
140605-763 ...BUSHING...BUSHING
-
151623-443 ...BOLT, RIBBED...BOLT, RIBBED
-
160607-806 FRAME, MOUNTING - SHOCK - RIGHTFRAME, MOUNTING - SHOCK - RIGHT
-
160607-807 FRAME, MOUNTING - SHOCK - LEFTFRAME, MOUNTING - SHOCK - LEFT
-
178408-625 SCREW, CAPSCREW, CAP
-
188427-602 NUT, LOCKNUT, LOCK
-
198408-620 SCREW, CAPSCREW, CAP
-
208476-620 SCREW, MACHINESCREW, MACHINE
-
218408-820 SCREW, CAPSCREW, CAP
-
221623-080 CLAMPCLAMP
-
238408-870 SCREW, CAPSCREW, CAP
-
240708-532 GUIDE, ROPEGUIDE, ROPE
-
252603-543 SPACERSPACER
-
260623-038 NUT W/WASHERNUT W/WASHER
-
278053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
288476-825 SCREW, MACHINESCREW, MACHINE
-
294606-454 STRAP, HOLD-DOWN - RIGHTSTRAP, HOLD-DOWN - RIGHT
-
294606-455 STRAP, HOLD-DOWN - LEFTSTRAP, HOLD-DOWN - LEFT
-
300706-371 TRIMTRIM
-
318060-686 RIVETRIVET
-
326606-056 SUPPORT, TUNNELSUPPORT, TUNNEL
-
335606-701 END CAP, TUNNELEND CAP, TUNNEL
-
344706-547 SNOWFLAPSNOWFLAP
-
355611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
365611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
378061-706 RIVETRIVET
-
380609-863 TAILLIGHT, LEDTAILLIGHT, LED
-
390623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
404706-841 BUMPER, REAR - PLATINUM (INC. 41)BUMPER, REAR - PLATINUM (INC. 41)
-
410423-391 ...INSERT...INSERT
-
428611-720 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
428611-721 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
438611-737 DECAL, TUNNELDECAL, TUNNEL
-
446606-211 BRACKET, HOLD-DOWN - SADDLEBAGBRACKET, HOLD-DOWN - SADDLEBAG
-
456606-229 RING, HOLD-DOWN - SADDLEBAGRING, HOLD-DOWN - SADDLEBAG
-
466606-174 SADDLEBAGSADDLEBAG
