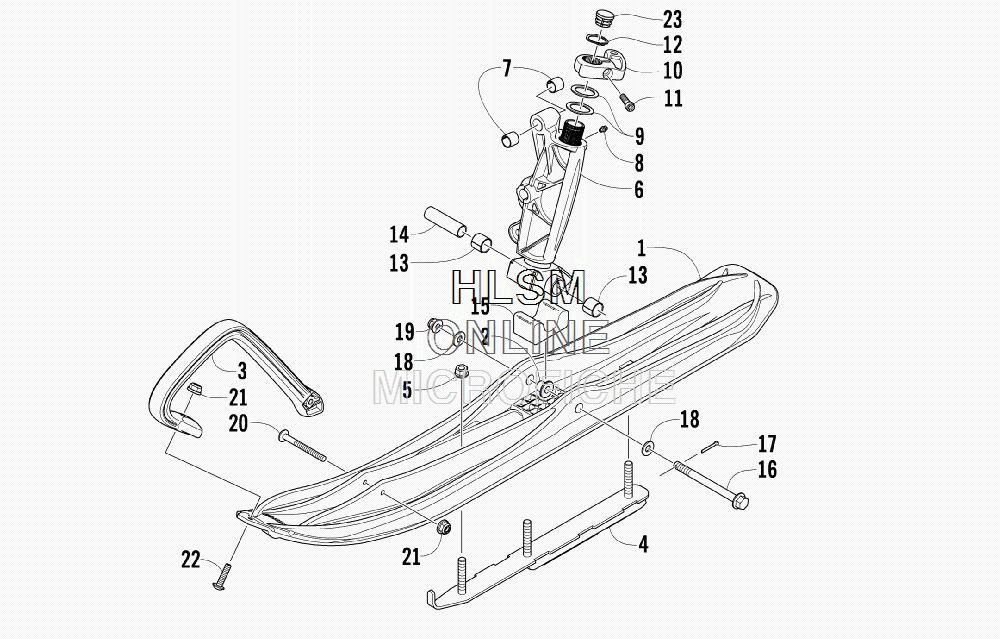

SKI AND SPINDLE ASSEMBLY для Arctic Cat F570 INTERNATONAL - 2010 года выпуска`
-
№АртикулНазвание
-
12603-833 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
22603-746 INSERTINSERT
-
32603-598 HANDLE, PLASTIC - BLACKHANDLE, PLASTIC - BLACK
-
42703-598 WEARBAR - RIGHTWEARBAR - RIGHT
-
42703-599 WEARBAR - LEFTWEARBAR - LEFT
-
58047-486 NUT, LOCKNUT, LOCK
-
62703-372 SPINDLE, STEERING - RIGHT - BLACK (INC. 7-13)SPINDLE, STEERING - RIGHT - BLACK (INC. 7-13)
-
62703-373 SPINDLE, STEERING - LEFT - BLACK (INC. 7-13)SPINDLE, STEERING - LEFT - BLACK (INC. 7-13)
-
71603-895 ...BEARING...BEARING
-
81623-654 ...FITTING, GREASE...FITTING, GREASE
-
92603-382 ...WASHER, THRUST...WASHER, THRUST
-
104706-272 ...ARM, SPINDLE - RIGHT - BLACK...ARM, SPINDLE - RIGHT - BLACK
-
104706-273 ...ARM, SPINDLE - LEFT - BLACK...ARM, SPINDLE - LEFT - BLACK
-
110623-872 ...SCREW, CAP...SCREW, CAP
-
120623-796 ...RING, RETAINING...RING, RETAINING
-
130603-158 ...BEARING...BEARING
-
142603-813 AXLE, SPINDLEAXLE, SPINDLE
-
150603-036 DAMPER, SKIDAMPER, SKI
-
161623-781 SCREW, CAPSCREW, CAP
-
170123-458 PIN, COTTERPIN, COTTER
-
181623-801 WASHERWASHER
-
190423-744 NUT, LOCKNUT, LOCK
-
201623-688 SCREW, MACHINESCREW, MACHINE
-
218047-366 NUT, LOCKNUT, LOCK
-
221623-689 SCREW, MACHINESCREW, MACHINE
-
230623-831 CAP, SPINDLECAP, SPINDLE
