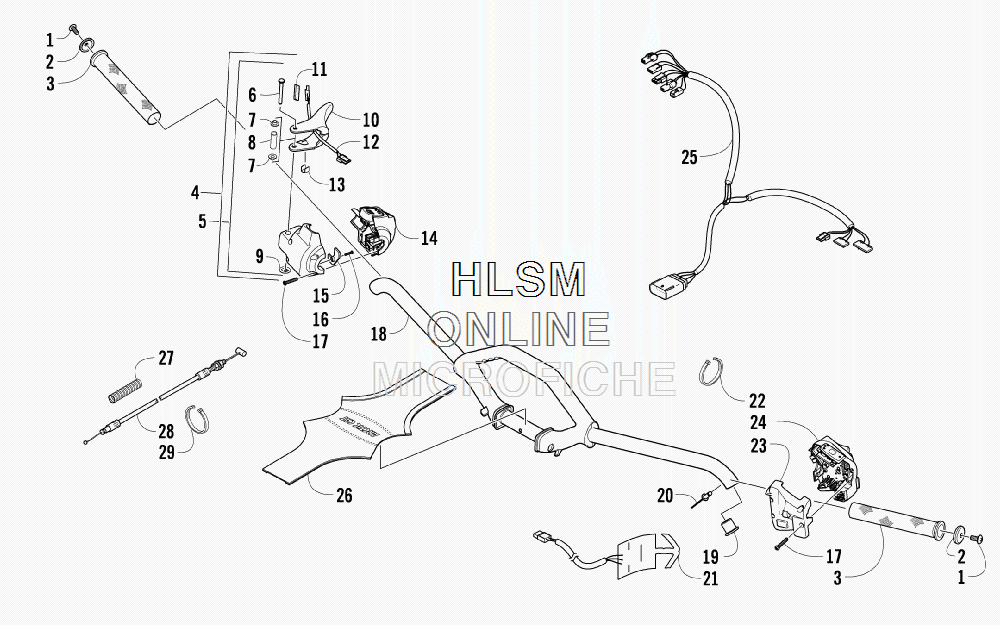

HANDLEBAR AND CONTROLS для Arctic Cat CROSSFIRE 800 SNO PRO LTD - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1623-618 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    1623-754 WASHER, BACKING
    WASHER, BACKING
  • 3
    4606-945 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 4
    0609-888 CONTROL, THROTTLE - REAR (INC. 5-10)
    CONTROL, THROTTLE - REAR (INC. 5-10)
  • 5
    0609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
    ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
  • 9
    0123-766 ......NUT, PUSH - INCLUDED IN KIT
    ......NUT, PUSH - INCLUDED IN KIT
  • 10
    0609-797 ...LEVER, THROTTLE
    ...LEVER, THROTTLE
  • 11
    0617-248 PAD, INSULATOR
    PAD, INSULATOR
  • 12
    0609-827 ELEMENT, THUMBWARMER
    ELEMENT, THUMBWARMER
  • 13
    0609-595 CLIP, RETAINING
    CLIP, RETAINING
  • 14
    0609-880 CONTROL, THROTTLE - FRONT
    CONTROL, THROTTLE - FRONT
  • 15
    0609-792 COVER, CONNECTOR
    COVER, CONNECTOR
  • 16
    0609-793 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    0609-791 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    1705-229 HANDLEBAR (INC. 19-20)
    HANDLEBAR (INC. 19-20)
  • 19
    0605-945 ...INSERT, HANDLEBAR
    ...INSERT, HANDLEBAR
  • 20
    8060-682 ...RIVET
    ...RIVET
  • 21
    0609-828 ELEMENT, HANDWARMER - RIGHT
    ELEMENT, HANDWARMER - RIGHT
  • 21
    0609-829 ELEMENT, HANDWARMER - LEFT
    ELEMENT, HANDWARMER - LEFT
  • 22
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 23
    0609-883 CONTROL, DIMMER - REAR
    CONTROL, DIMMER - REAR
  • 24
    0609-881 CONTROL, DIMMER - FRONT
    CONTROL, DIMMER - FRONT
  • 25
    1686-566 HARNESS, HANDLEBAR
    HARNESS, HANDLEBAR
  • 26
    1705-149 WRAP, HANDLEBAR
    WRAP, HANDLEBAR
  • 27
    1619-356 LOOM, HIGH-TEMPERATURE - 5 FT
    LOOM, HIGH-TEMPERATURE - 5 FT
  • 28
    0687-218 CABLE, THROTTLE
    CABLE, THROTTLE
  • 29
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
