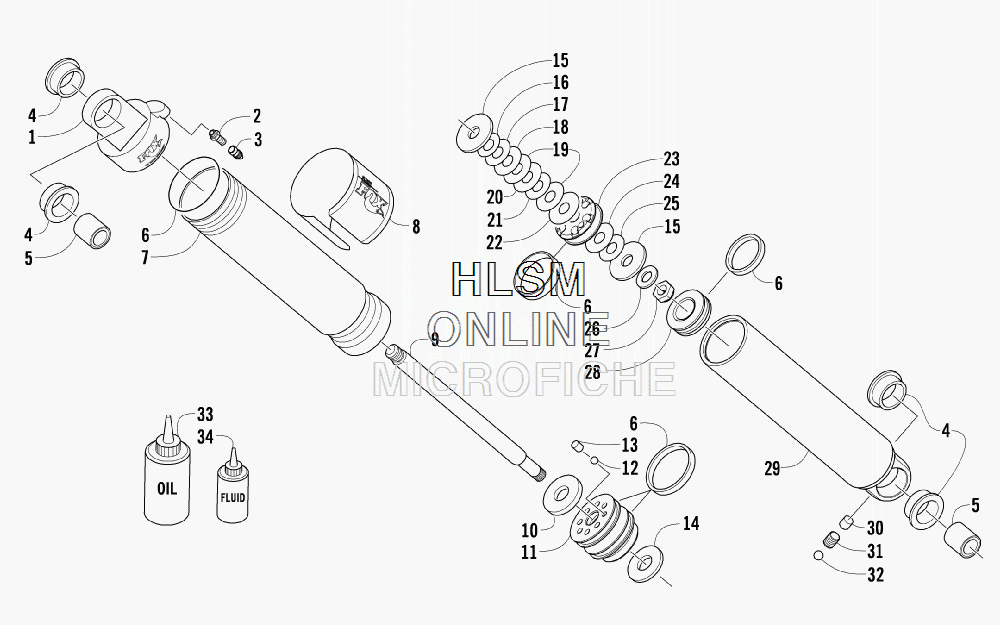

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat CROSSFIRE 800 LE - 2010 года выпуска
-
№АртикулНазвание
-
-1704-813 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13604-319 END CAP, SHOCK (INC. 2)END CAP, SHOCK (INC. 2)
-
22603-511 ...VALVE, AIR...VALVE, AIR
-
32603-327 CAP, AIR VALVECAP, AIR VALVE
-
41604-222 BUSHINGBUSHING
-
52604-223 SLEEVESLEEVE
-
62604-796 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
72603-665 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
82603-610 DECAL, SHOCKDECAL, SHOCK
-
93604-320 ROD, SHOCKROD, SHOCK
-
103604-005 SPACERSPACER
-
112603-333 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
121604-315 BALL, BLEEDBALL, BLEED
-
131603-940 SCREW, SETSCREW, SET
-
140603-386 BUMPER, INTERNAL - TOP OUTBUMPER, INTERNAL - TOP OUT
-
150603-540 WASHER, TOP OUTWASHER, TOP OUT
-
160603-334 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
170603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
180603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
190603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
200603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
210603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
220603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
232603-482 PISTON, 0.046 IN. - ORIFICEPISTON, 0.046 IN. - ORIFICE
-
240603-889 VALVE, 1.250 X 0.015 IN.VALVE, 1.250 X 0.015 IN.
-
250603-339 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
260603-389 WASHER, BACKUPWASHER, BACKUP
-
270603-301 NUTNUT
-
282603-417 PISTON, FLOATINGPISTON, FLOATING
-
292603-335 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
301604-428 PLUG, RUBBER - VALVEPLUG, RUBBER - VALVE
-
312603-338 SCREW, SETSCREW, SET
-
322603-337 BALL, AIR VALVEBALL, AIR VALVE
-
335639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
344639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
