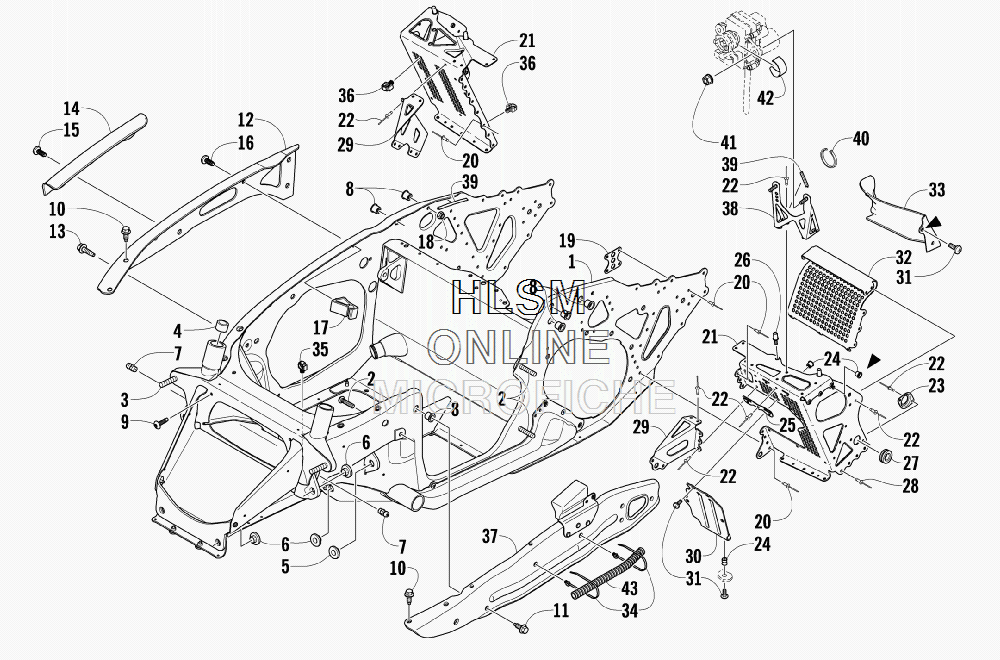

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat CRF 800 LE - 2010 года выпуска

  • №
    Артикул
    Название
  • -
    1707-425 COMPLETE CHASSIS ASSEMBLY
    COMPLETE CHASSIS ASSEMBLY
  • 1
    1707-228 CHASSIS - ASSEMBLY - BLACK (INC. 2-8)
    CHASSIS - ASSEMBLY - BLACK (INC. 2-8)
  • 2
    1623-359 ...BOLT, CARRIAGE - RIBBED
    ...BOLT, CARRIAGE - RIBBED
  • 3
    1623-019 ...BOLT, CARRIAGE - RIBBED
    ...BOLT, CARRIAGE - RIBBED
  • 4
    0675-161 ...BEARING
    ...BEARING
  • 5
    0607-656 ...BUSHING, UPPER A-ARM MOUNT
    ...BUSHING, UPPER A-ARM MOUNT
  • 6
    0607-657 ...BUSHING, LOWER A-ARM MOUNT
    ...BUSHING, LOWER A-ARM MOUNT
  • 7
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 8
    0623-581 ...INSERT
    ...INSERT
  • 9
    1623-022 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    1623-480 SCREW, CAP
    SCREW, CAP
  • 11
    1623-481 SCREW, CAP
    SCREW, CAP
  • 12
    6606-068 BRACE, SIDE PLATE - RIGHT
    BRACE, SIDE PLATE - RIGHT
  • 13
    1623-561 SCREW, CAP
    SCREW, CAP
  • 14
    4606-793 PROTECTOR, MAIN HARNESS
    PROTECTOR, MAIN HARNESS
  • 15
    1623-353 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    1623-204 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    0608-449 GUIDE, ROPE
    GUIDE, ROPE
  • 18
    8041-426 NUT, LOCK
    NUT, LOCK
  • 19
    2706-580 PLATE, BACKING
    PLATE, BACKING
  • 20
    8060-706 RIVET
    RIVET
  • 21
    4706-192 FOOTREST - RIGHT - BLACK (INC. 22-24 AND 26)
    FOOTREST - RIGHT - BLACK (INC. 22-24 AND 26)
  • 21
    4706-193 FOOTREST - LEFT - BLACK (INC. 22-26)
    FOOTREST - LEFT - BLACK (INC. 22-26)
  • 22
    8060-504 ...RIVET
    ...RIVET
  • 23
    3706-335 ...PLATE, RETAINING - BLACK
    ...PLATE, RETAINING - BLACK
  • 24
    1623-657 ...INSERT
    ...INSERT
  • 25
    0607-835 ...PLATE, MOUNTING - BELT GUARD
    ...PLATE, MOUNTING - BELT GUARD
  • 26
    1623-706 ...STUD, CAPTIVE
    ...STUD, CAPTIVE
  • 27
    1623-529 GROMMET
    GROMMET
  • 28
    1623-264 RIVET
    RIVET
  • 29
    3706-336 BRACKET, SUPPORT - FOOTREST - RIGHT - BLACK
    BRACKET, SUPPORT - FOOTREST - RIGHT - BLACK
  • 29
    3706-692 BRACKET, SUPPORT - FOOTREST - LEFT - BLACK
    BRACKET, SUPPORT - FOOTREST - LEFT - BLACK
  • 30
    4706-091 PANEL, CLOSE-OUT - FOOTREST (INC. TWO NO. 24)
    PANEL, CLOSE-OUT - FOOTREST (INC. TWO NO. 24)
  • 31
    1623-498 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    3706-690 BRACKET, SUPPORT - FOOTREST - LOWER RIGHT - BLACK
    BRACKET, SUPPORT - FOOTREST - LOWER RIGHT - BLACK
  • 32
    3706-691 BRACKET, SUPPORT - FOOTREST - LOWER LEFT - BLACK
    BRACKET, SUPPORT - FOOTREST - LOWER LEFT - BLACK
  • 33
    4606-434 COVER, FOOTREST - RIGHT
    COVER, FOOTREST - RIGHT
  • 33
    4606-435 COVER, FOOTREST - LEFT
    COVER, FOOTREST - LEFT
  • 34
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
  • 35
    1623-717 CLIP, ROUTING
    CLIP, ROUTING
  • 36
    1623-406 CLIP, ROUTING
    CLIP, ROUTING
  • 37
    4706-755 BRACE, SIDE PLATE - LEFT
    BRACE, SIDE PLATE - LEFT
  • 38
    3706-613 BRACKET, MOUNTING - SERVOMOTOR (INC. 39)
    BRACKET, MOUNTING - SERVOMOTOR (INC. 39)
  • 39
    0706-371 ...TRIM
    ...TRIM
  • 40
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 41
    8047-366 NUT, LOCK
    NUT, LOCK
  • 42
    5606-208 CLIP, SERVOMOTOR
    CLIP, SERVOMOTOR
  • 43
    1619-350 CONDUIT, FLEXIBLE - 5 FT
    CONDUIT, FLEXIBLE - 5 FT
