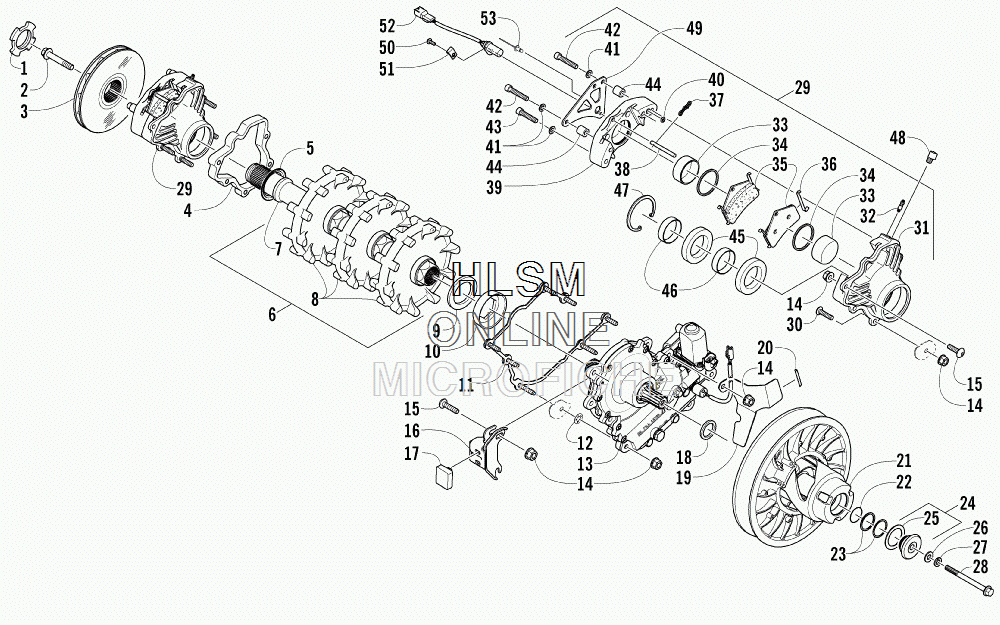

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat BEARCAT Z1 XT (GREEN) - 2010 года выпуска`
-
№АртикулНазвание
-
11602-957 NUT, RETAININGNUT, RETAINING
-
21623-461 SCREW, CAPSCREW, CAP
-
31602-656 DISC, BRAKEDISC, BRAKE
-
41602-497 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
52602-076 SHIELD, BEARINGSHIELD, BEARING
-
60728-180 TRACK, DRIVE - ASSEMBLY (INC. 7-8)TRACK, DRIVE - ASSEMBLY (INC. 7-8)
-
70702-991 ...DRIVESHAFT...DRIVESHAFT
-
81602-783 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
92602-068 SPACERSPACER
-
101602-984 SEALSEAL
-
111702-060 PLATE, MOUNTING - REVERSEPLATE, MOUNTING - REVERSE
-
121623-355 NUT, PUSHNUT, PUSH
-
131702-163 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
148427-802 NUT, LOCKNUT, LOCK
-
158476-830 SCREW, MACHINESCREW, MACHINE
-
160708-487 BRACKET, RUBBER SNUBBERBRACKET, RUBBER SNUBBER
-
170608-486 SNUBBER, RUBBERSNUBBER, RUBBER
-
180648-442 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
180648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
194606-939 SHIELD, ACTUATORSHIELD, ACTUATOR
-
200706-371 TRIMTRIM
-
210726-301 CLUTCH, DRIVENCLUTCH, DRIVEN
-
220648-441 O-RINGO-RING
-
230648-714 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
230648-715 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
230648-716 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
241702-114 ADJUSTER, SHEAVE (INC. 25)ADJUSTER, SHEAVE (INC. 25)
-
250648-788 ...WASHER, THRUST...WASHER, THRUST
-
268050-277 WASHERWASHER
-
278051-272 WASHER, LOCKWASHER, LOCK
-
281623-572 SCREW, CAPSCREW, CAP
-
291702-176 CALIPER, BRAKE - ASSEMBLY (INC. 30-47)CALIPER, BRAKE - ASSEMBLY (INC. 30-47)
-
301623-757 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
321602-458 ...FITTING, BLEED...FITTING, BLEED
-
331602-461 ...PISTON...PISTON
-
341602-669 ...O-RING...O-RING
-
350702-563 ...PAD, BRAKE - SET (INC. 36-37)...PAD, BRAKE - SET (INC. 36-37)
-
361602-466 ......CLIP, ANTI-RATTLE......CLIP, ANTI-RATTLE
-
371602-467 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
381602-464 ...PIN, RETAINING - BRAKE PAD...PIN, RETAINING - BRAKE PAD
-
400602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
410402-165 ...WASHER...WASHER
-
421602-670 ...SCREW, CAP...SCREW, CAP
-
431602-671 ...SCREW, CAP...SCREW, CAP
-
442602-132 ...SPACER, SPEEDOMETER BRACKET...SPACER, SPEEDOMETER BRACKET
-
452602-131 ...BEARING...BEARING
-
461602-463 ...SLEEVE, DRIVESHAFT...SLEEVE, DRIVESHAFT
-
471602-456 ...RING, RETAINING...RING, RETAINING
-
481602-978 FITTING, INLETFITTING, INLET
-
494606-309 PLATE, MOUNTING - SPEEDOMETER SENSORPLATE, MOUNTING - SPEEDOMETER SENSOR
-
508468-617 SCREW, MACHINESCREW, MACHINE
-
511623-676 CLAMPCLAMP
-
520630-207 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
538060-602 RIVETRIVET
