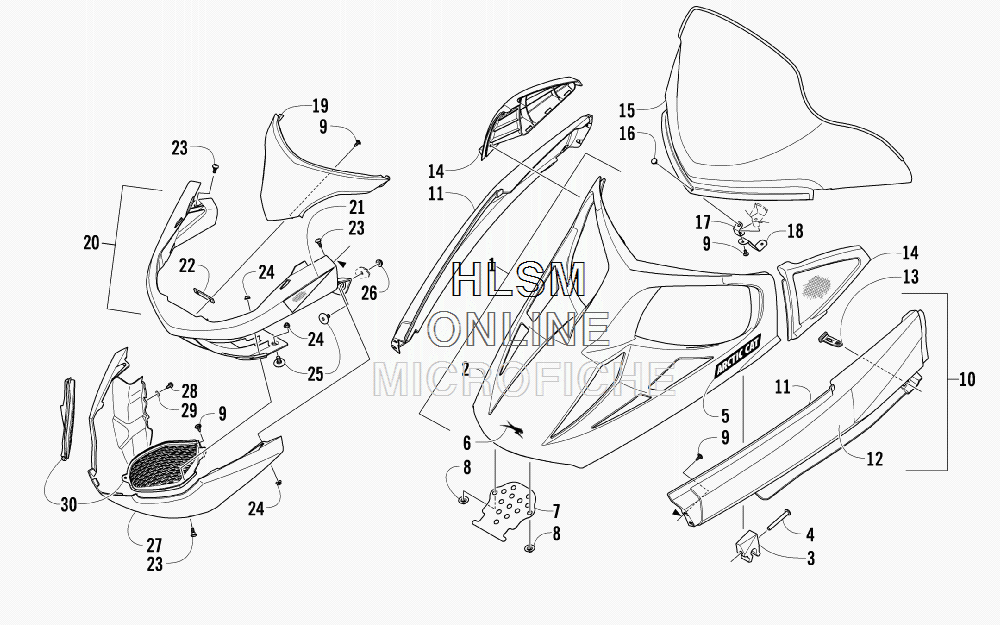

HOOD- WINDSHIELD- AND FRONT BUMBER ASSEMBLY для Arctic Cat BEARCAT 570 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-527 HOOD W/DECALS - BLUE (INC. 2-6)
    HOOD W/DECALS - BLUE (INC. 2-6)
  • 2
    7800-235 ...HOOD W/O DECALS - BLUE (INC. 3-4)
    ...HOOD W/O DECALS - BLUE (INC. 3-4)
  • 3
    1623-614 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
    ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
  • 3
    1623-615 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
    ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
  • 4
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 5
    8611-807 ...DECAL, HOOD - "ARCTIC CAT"
    ...DECAL, HOOD - "ARCTIC CAT"
  • 6
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 7
    5606-042 BRACKET, HINGE
    BRACKET, HINGE
  • 8
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 9
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    2718-804 SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 11-12)
    SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 11-12)
  • 10
    2718-805 SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 11-12)
    SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 11-12)
  • 11
    6606-016 ...SPAR, FRONT W/O DECALS - RIGHT - BLUE
    ...SPAR, FRONT W/O DECALS - RIGHT - BLUE
  • 11
    6606-017 ...SPAR, FRONT W/O DECALS - LEFT - BLUE
    ...SPAR, FRONT W/O DECALS - LEFT - BLUE
  • 12
    8611-808 ...DECAL, FRONT SPAR - RIGHT
    ...DECAL, FRONT SPAR - RIGHT
  • 12
    8611-809 ...DECAL, FRONT SPAR - LEFT
    ...DECAL, FRONT SPAR - LEFT
  • 13
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 14
    5606-934 BEZEL, INTAKE - RIGHT - BLUE
    BEZEL, INTAKE - RIGHT - BLUE
  • 14
    5606-935 BEZEL, INTAKE - LEFT - BLUE
    BEZEL, INTAKE - LEFT - BLUE
  • 15
    5606-962 WINDSHIELD
    WINDSHIELD
  • 16
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 17
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 18
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 19
    5606-601 FASCIA, BUMPER - UPPER - BLUE
    FASCIA, BUMPER - UPPER - BLUE
  • 20
    2718-765 BUMPER, FRONT - BLACK (INC. 21)
    BUMPER, FRONT - BLACK (INC. 21)
  • 21
    9611-282 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 21
    9611-283 ...DECAL, REFLECTOR -LEFT - AMBER
    ...DECAL, REFLECTOR -LEFT - AMBER
  • 22
    5606-953 SPACER
    SPACER
  • 23
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 24
    8427-602 NUT, LOCK
    NUT, LOCK
  • 25
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 26
    8424-602 NUT
    NUT
  • 27
    5606-462 FASCIA, BUMPER - LOWER - BLACK
    FASCIA, BUMPER - LOWER - BLACK
  • 28
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 29
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 30
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 30
    4606-605 VENT, BUMPER - LEFT - BLACK
    VENT, BUMPER - LEFT - BLACK
