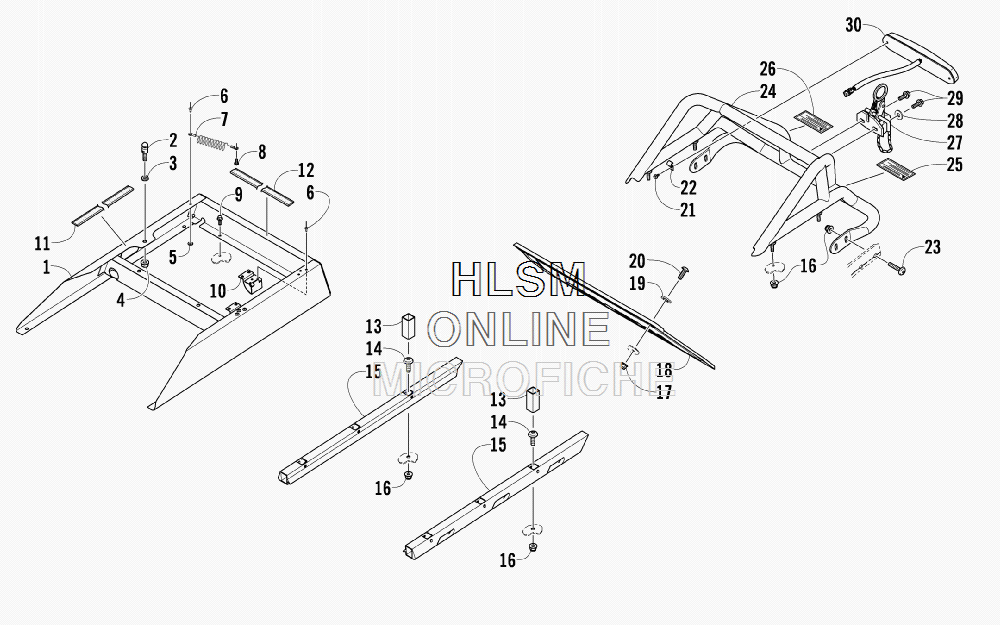

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat BEARCAT 570 XT - 2010 года выпуска

-
№АртикулНазвание
-
14706-480 RISER, SEAT - ASSEMBLYRISER, SEAT - ASSEMBLY
-
21623-345 STUD, SEATSTUD, SEAT
-
31623-083 NUTNUT
-
48422-002 NUT, LOCKNUT, LOCK
-
50123-802 WASHERWASHER
-
68060-706 RIVETRIVET
-
74606-162 CABLECABLE
-
81623-022 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
98408-616 SCREW, CAPSCREW, CAP
-
100623-579 HINGE, SEAT-BASEHINGE, SEAT-BASE
-
115606-802 SEALSEAL
-
125606-803 SEALSEAL
-
130441-592 INSERTINSERT
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
154706-258 MOUNT, RACK - RIGHTMOUNT, RACK - RIGHT
-
154706-259 MOUNT, RACK - LEFTMOUNT, RACK - LEFT
-
168427-802 NUT, LOCKNUT, LOCK
-
178427-602 NUT, LOCKNUT, LOCK
-
183606-740 SNOWFLAPSNOWFLAP
-
190623-184 WASHERWASHER
-
201623-782 SCREW, MACHINESCREW, MACHINE
-
210623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
221623-786 CLAMP, WIRECLAMP, WIRE
-
238476-835 SCREW, MACHINESCREW, MACHINE
-
244706-065 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
255611-582 DECAL, WARNING - TOWING - ENGLISHDECAL, WARNING - TOWING - ENGLISH
-
265611-583 DECAL, WARNING - TOWING - FRENCHDECAL, WARNING - TOWING - FRENCH
-
274606-156 HITCH, PINTLEHITCH, PINTLE
-
288050-242 WASHERWASHER
-
298408-832 SCREW, CAPSCREW, CAP
-
300609-887 TAILLIGHT, LEDTAILLIGHT, LED
-
-4706-072 KIT, TOOL - NOT ILLUSTRATEDKIT, TOOL - NOT ILLUSTRATED
