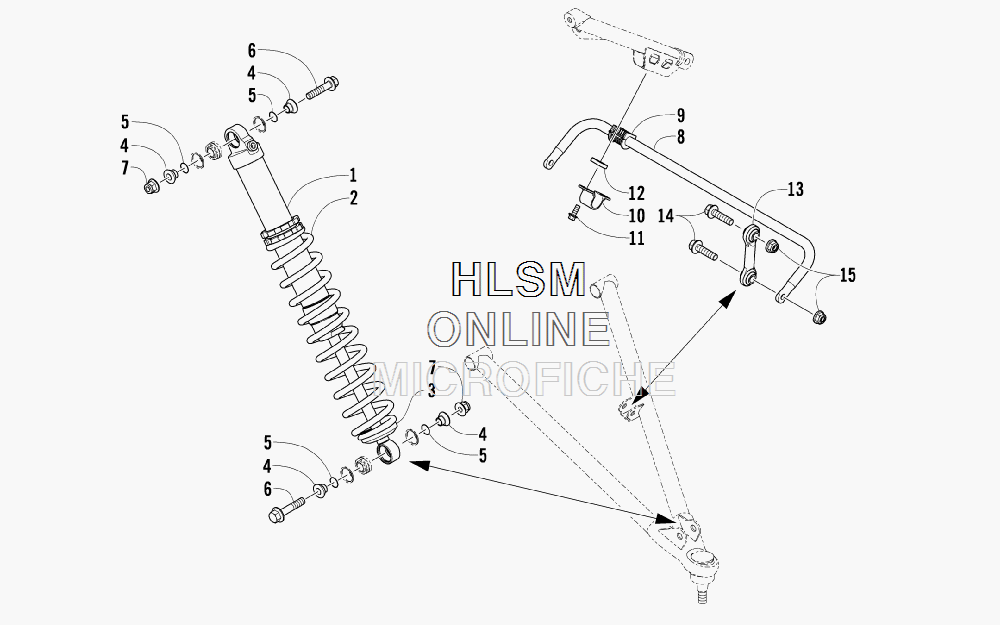

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat 600 SNO PRO SNO CROSS INTERNATIONAL - 2010 года выпуска`
-
№АртикулНазвание
-
12703-573 SHOCK, SKISHOCK, SKI
-
22703-385 SPRING, COMPRESSION - 175 LB - WHITESPRING, COMPRESSION - 175 LB - WHITE
-
22703-406 SPRING, COMPRESSION - 145 LB - WHITE - OPTIONALSPRING, COMPRESSION - 145 LB - WHITE - OPTIONAL
-
22703-386 SPRING, COMPRESSION - 160 LB - WHITE - OPTIONALSPRING, COMPRESSION - 160 LB - WHITE - OPTIONAL
-
22703-387 SPRING, COMPRESSION - 190 LB - WHITE - OPTIONALSPRING, COMPRESSION - 190 LB - WHITE - OPTIONAL
-
31603-890 RETAINER, SPRINGRETAINER, SPRING
-
42603-758 SPACERSPACER
-
52604-698 O-RINGO-RING
-
68408-045 SCREW, CAPSCREW, CAP
-
78427-002 NUT, LOCKNUT, LOCK
-
84639-961 KIT, SWAY BAR - 11.1 MM - BLACK (INC. 9)KIT, SWAY BAR - 11.1 MM - BLACK (INC. 9)
-
84639-962 KIT, SWAY BAR - 12.7 MM - BLACK (INC. 9) - OPTIONALKIT, SWAY BAR - 12.7 MM - BLACK (INC. 9) - OPTIONAL
-
84639-963 KIT, SWAY BAR - 14.3 MM - BLACK (INC. 9) - OPTIONALKIT, SWAY BAR - 14.3 MM - BLACK (INC. 9) - OPTIONAL
-
92603-803 ...BUSHING, SWAY BAR - 11.1 MM...BUSHING, SWAY BAR - 11.1 MM
-
92603-804 ...BUSHING, SWAY BAR - 12.7 MM - OPTIONAL...BUSHING, SWAY BAR - 12.7 MM - OPTIONAL
-
92603-775 ...BUSHING, SWAY BAR - 14.3 MM - OPTIONAL...BUSHING, SWAY BAR - 14.3 MM - OPTIONAL
-
102603-829 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
118408-616 SCREW, CAPSCREW, CAP
-
121623-564 WASHERWASHER
-
132603-830 LINK, SWAY BARLINK, SWAY BAR
-
148408-835 SCREW, CAPSCREW, CAP
-
158427-802 NUT, LOCKNUT, LOCK
