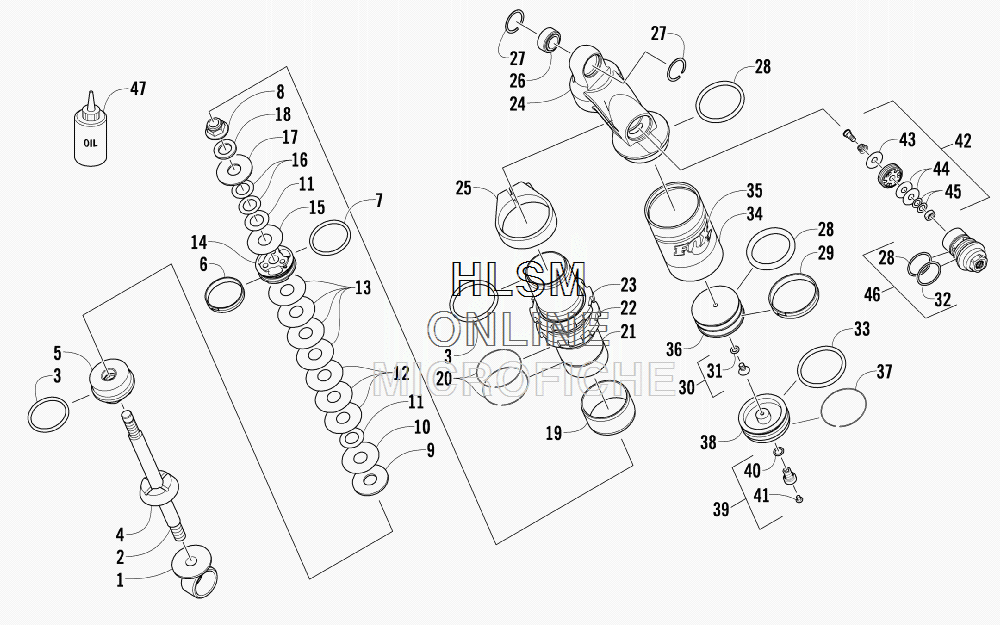

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat 600 SNO PRO CROSS COUNTRY - 2010 года выпуска`
-
№АртикулНазвание
-
-1704-923 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13604-576 EYELET, SHOCKEYELET, SHOCK
-
23604-525 ROD, SHOCKROD, SHOCK
-
33604-538 KIT, SEAL/REBUILD (INC. 4-8)KIT, SEAL/REBUILD (INC. 4-8)
-
43604-530 ...BUMPER...BUMPER
-
52604-812 ...BEARING - ASSEMBLY...BEARING - ASSEMBLY
-
60603-292 ...STRAP, PISTON...STRAP, PISTON
-
72604-214 ...O-RING...O-RING
-
80603-301 ...NUT...NUT
-
90603-540 WASHER, TOP OUTWASHER, TOP OUT
-
100603-349 VALVE, SHOCK 1.300 X 0.008 IN.VALVE, SHOCK 1.300 X 0.008 IN.
-
110603-333 VALVE, SHOCK 0.800 X 0.006 IN.VALVE, SHOCK 0.800 X 0.006 IN.
-
120603-890 VALVE, SHOCK 1.300 X 0.015 IN.VALVE, SHOCK 1.300 X 0.015 IN.
-
130603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
142604-965 PISTON, 0.041 IN. - ORIFICEPISTON, 0.041 IN. - ORIFICE
-
150603-342 VALVE, SHOCK 1.100 X 0.006 IN.VALVE, SHOCK 1.100 X 0.006 IN.
-
163604-171 VALVE, SHOCK 0.600 X 0.004 IN.VALVE, SHOCK 0.600 X 0.004 IN.
-
173604-170 WASHER, TOP OUTWASHER, TOP OUT
-
180603-389 WASHER, BACKUPWASHER, BACKUP
-
192603-246 SLEEVE, WEARSLEEVE, WEAR
-
202603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
213604-523 BODY, SHOCKBODY, SHOCK
-
222604-840 NUT, ADJUSTERNUT, ADJUSTER
-
232604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
243604-522 END CAP, SHOCK/RESERVOIR (INC. 25-27)END CAP, SHOCK/RESERVOIR (INC. 25-27)
-
253604-532 ...CLAMP, BODY/END CAP...CLAMP, BODY/END CAP
-
263604-526 ...BEARING...BEARING
-
273604-527 ...RING, RETAINING...RING, RETAINING
-
283604-539 KIT, REBUILD - RESERVOIR (INC. 29-33)KIT, REBUILD - RESERVOIR (INC. 29-33)
-
291603-235 ...STRAP, PISTON...STRAP, PISTON
-
301604-316 ...SCREW, RELIEF (INC. 31)...SCREW, RELIEF (INC. 31)
-
311604-425 ......O-RING......O-RING
-
322603-502 ...O-RING...O-RING
-
330603-671 ...O-RING...O-RING
-
343604-528 RESERVOIRRESERVOIR
-
353604-160 DECAL, SHOCK - RESERVOIRDECAL, SHOCK - RESERVOIR
-
363604-524 PISTON, INTERNAL FLOATINGPISTON, INTERNAL FLOATING
-
370604-992 RING, RETAININGRING, RETAINING
-
382603-525 END CAP, RESERVOIR (INC. 33 AND 39-40)END CAP, RESERVOIR (INC. 33 AND 39-40)
-
390703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 40)...VALVE, PRESSURE - ASSEMBLY (INC. 40)
-
401604-318 ......O-RING......O-RING
-
410624-097 SCREW, VALVESCREW, VALVE
-
423604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 43-45)PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 43-45)
-
430603-331 ...VALVE, SHOCK 0.700 X 0.008 IN....VALVE, SHOCK 0.700 X 0.008 IN.
-
442603-501 ...VALVE, SHOCK 0.700 X 0.010 IN....VALVE, SHOCK 0.700 X 0.010 IN.
-
453604-165 ...PLATE, BACKUP...PLATE, BACKUP
-
462603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 32)CARTRIDGE, DAMPING ADJUSTER (INC. 32)
-
475639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
