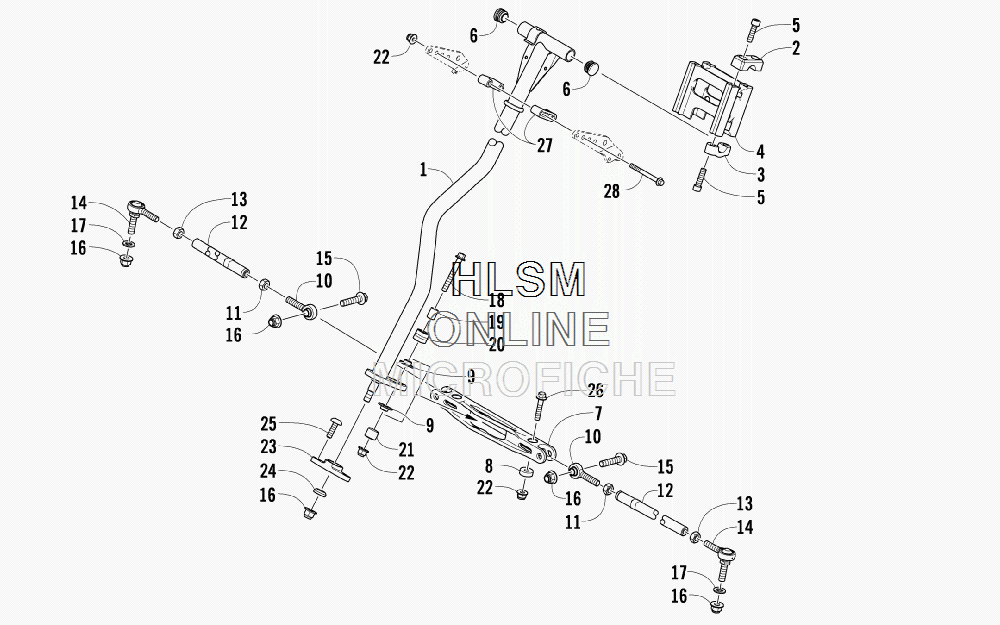

STEERING POST AND TIE ROD ASSEMBLY для Arctic Cat 500 SNO PRO - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1705-242 POST, STEERING
    POST, STEERING
  • 2
    0705-355 CAP, ADJUSTING BLOCK - UPPER
    CAP, ADJUSTING BLOCK - UPPER
  • 3
    0605-676 CAP, ADJUSTING BLOCK - LOWER
    CAP, ADJUSTING BLOCK - LOWER
  • 4
    0605-875 RISER, HANDLEBAR - 3.44 IN.
    RISER, HANDLEBAR - 3.44 IN.
  • 4
    0605-779 RISER, HANDLEBAR - 4.40 IN. - OPTIONAL
    RISER, HANDLEBAR - 4.40 IN. - OPTIONAL
  • 4
    0605-838 RISER, HANDLEBAR - 5.40 IN. - OPTIONAL
    RISER, HANDLEBAR - 5.40 IN. - OPTIONAL
  • 5
    0623-872 SCREW, CAP
    SCREW, CAP
  • 6
    1606-079 PLUG
    PLUG
  • 7
    1705-240 DRAG LINK - ASSEMBLY (INC. 8-9)
    DRAG LINK - ASSEMBLY (INC. 8-9)
  • 8
    0605-760 ...BEARING
    ...BEARING
  • 9
    0605-971 ...INSERT
    ...INSERT
  • 10
    1605-018 ROD END - RIGHT-HAND THREAD
    ROD END - RIGHT-HAND THREAD
  • 11
    8420-002 NUT, HEX - RIGHT-HAND THREAD
    NUT, HEX - RIGHT-HAND THREAD
  • 12
    0605-952 TUBE, TIE ROD - SPINDLE
    TUBE, TIE ROD - SPINDLE
  • 13
    0423-013 NUT, HEX - LEFT-HAND THREAD
    NUT, HEX - LEFT-HAND THREAD
  • 14
    1605-019 ROD END - LEFT-HAND THREAD
    ROD END - LEFT-HAND THREAD
  • 15
    8408-045 SCREW, CAP
    SCREW, CAP
  • 16
    8427-002 NUT, LOCK
    NUT, LOCK
  • 17
    1623-803 WASHER
    WASHER
  • 18
    8409-860 SCREW, CAP
    SCREW, CAP
  • 19
    0605-972 AXLE, BEARING - HOUSING
    AXLE, BEARING - HOUSING
  • 20
    1705-110 HOUSING W/BEARING
    HOUSING W/BEARING
  • 21
    0605-973 STOP, STEERING POST
    STOP, STEERING POST
  • 22
    8427-802 NUT, LOCK
    NUT, LOCK
  • 23
    1705-308 HOUSING, BEARING
    HOUSING, BEARING
  • 24
    3604-210 SPACER, BEARING
    SPACER, BEARING
  • 25
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    8408-840 SCREW, CAP
    SCREW, CAP
  • 27
    0605-576 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 28
    8408-880 SCREW, CAP
    SCREW, CAP
