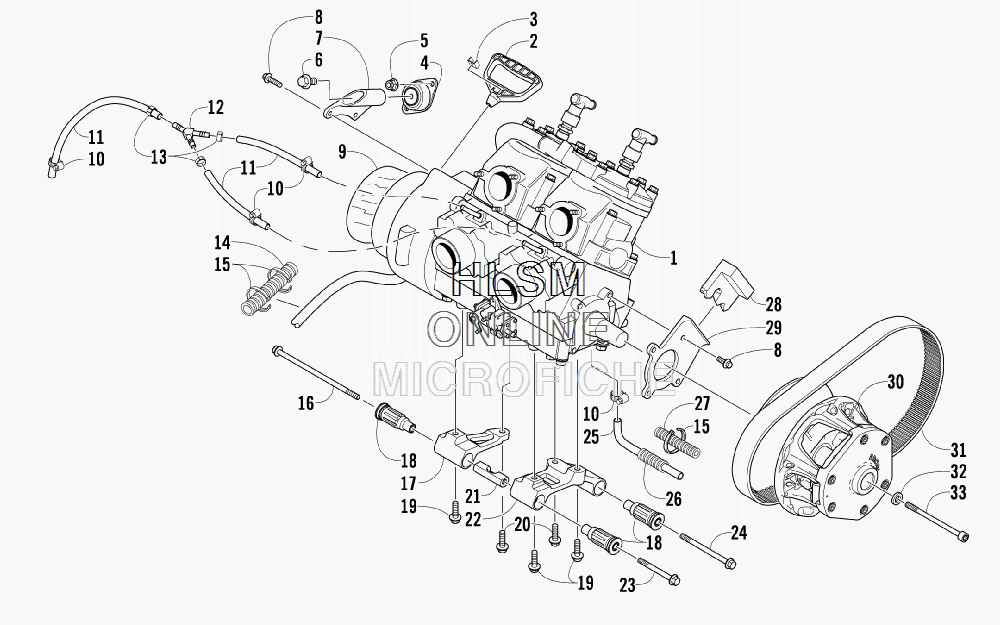

ENGINE AND RELATED PARTS для Arctic Cat 500 SNO PRO INTERNATIONAL - 2010 года выпуска`
-
№АртикулНазвание
-
10662-582 ENGINE, AX50L9 W/O EFI COMPONENTSENGINE, AX50L9 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40608-496 MOUNT, ENGINEMOUNT, ENGINE
-
58427-802 NUT, LOCKNUT, LOCK
-
68408-020 SCREW, CAPSCREW, CAP
-
70708-562 BRACKET, ENGINE MOUNTING - RIGHTBRACKET, ENGINE MOUNTING - RIGHT
-
88408-821 SCREW, CAPSCREW, CAP
-
91670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
100623-373 CLAMP, HOSECLAMP, HOSE
-
110610-076 HOSE, COOLANT - 10 FTHOSE, COOLANT - 10 FT
-
121670-596 Y-FITTINGY-FITTING
-
130610-581 CLAMP, HOSECLAMP, HOSE
-
140619-994 CONDUIT, FLEXIBLE (3/4 IN. ID - 6 IN.)CONDUIT, FLEXIBLE (3/4 IN. ID - 6 IN.)
-
150123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
161623-730 SCREW, CAPSCREW, CAP
-
170708-570 BRACKET, ENGINE MOUNTING - RIGHT FRONTBRACKET, ENGINE MOUNTING - RIGHT FRONT
-
180801-091 MOUNT, RUBBER - ENGINEMOUNT, RUBBER - ENGINE
-
198408-090 SCREW, CAPSCREW, CAP
-
208409-031 SCREW, CAPSCREW, CAP
-
210608-592 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
220708-571 BRACKET, ENGINE MOUNTING - LEFT FRONT (INC.ONE NO. 18)BRACKET, ENGINE MOUNTING - LEFT FRONT (INC.ONE NO. 18)
-
238409-000 SCREW, CAPSCREW, CAP
-
241623-729 SCREW, CAPSCREW, CAP
-
250610-699 HOSE, COOLANTHOSE, COOLANT
-
260619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
270619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
280608-600 BUMPER, TORQUEBUMPER, TORQUE
-
290708-580 BRACKET, ENGINE MOUNTING - LEFTBRACKET, ENGINE MOUNTING - LEFT
-
300746-215 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
310627-047 BELT, DRIVEBELT, DRIVE
-
321623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
331623-792 BOLT, CLUTCHBOLT, CLUTCH
