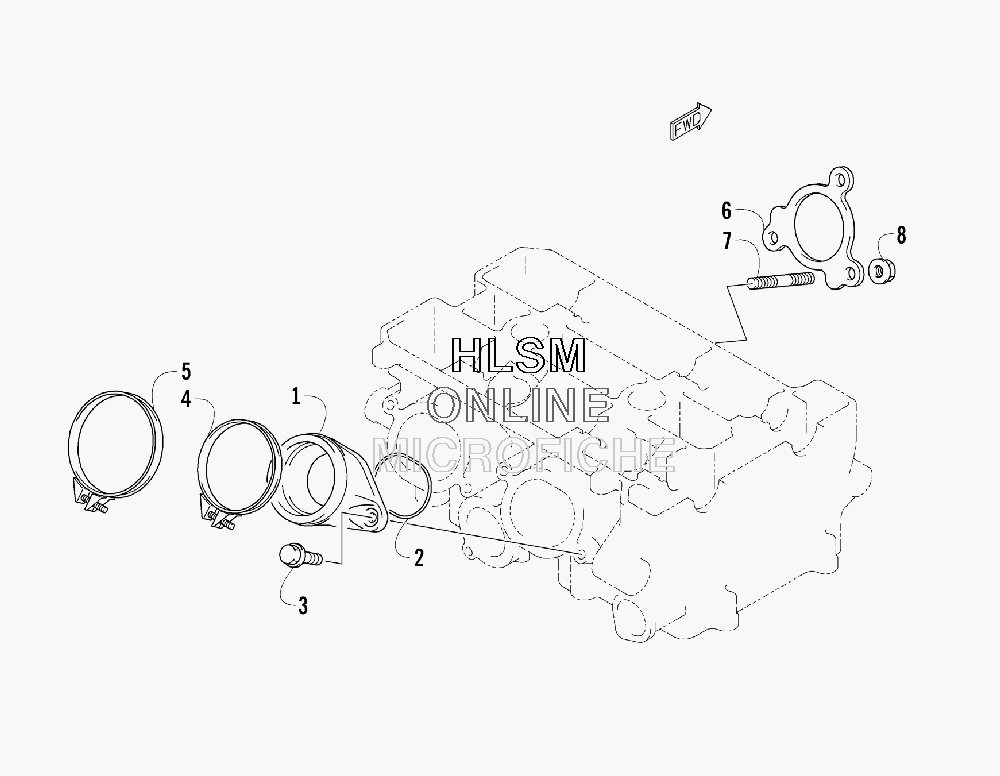

EXHAUST MANIFOLD GASKET/INTAKE FLANGE ASSEMBLY для Arctic Cat Z1 - 2009 года выпуска`
-
№АртикулНазвание
-
13007-157 FLANGE, INTAKEFLANGE, INTAKE
-
23007-158 O-RINGO-RING
-
33423-347 SCREW, CAPSCREW, CAP
-
43423-726 CLAMP, INTAKE FLANGECLAMP, INTAKE FLANGE
-
53007-159 CLAMP, AIR SILENCERCLAMP, AIR SILENCER
-
63007-160 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
73007-415 BOLT, STUDBOLT, STUD
-
83007-390 NUTNUT
